Fr-Sky TWIN X14 2.4Ghz green Radio with case and battery

Fr-Sky TWIN X14 2.4Ghz green Radio with case and battery

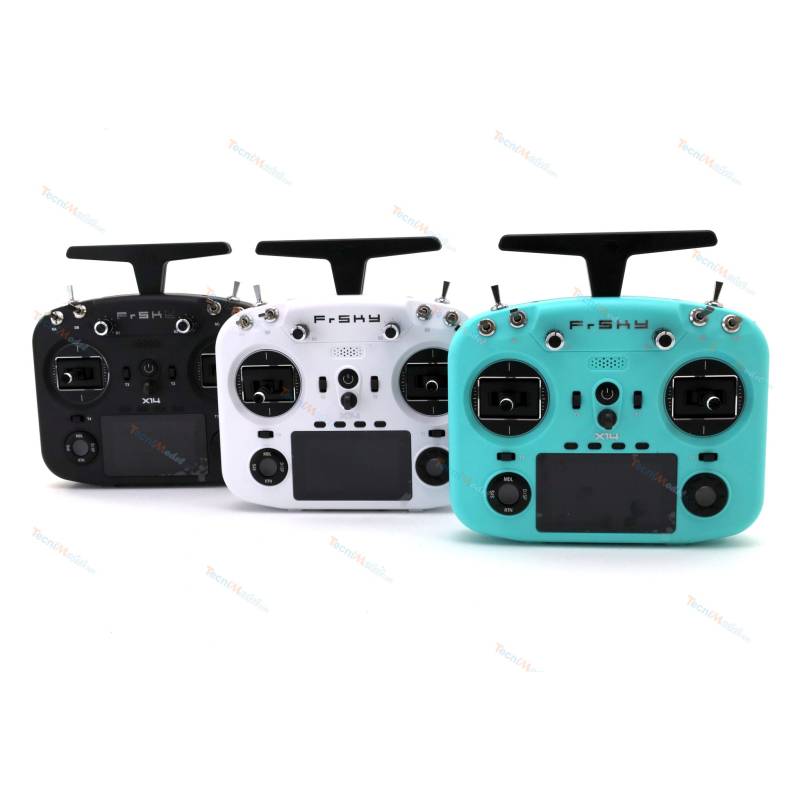

Supplied in lagoon green: also available in black or white.

Choice of available configurations:

• Standard FrSky (No Tecnimodel configuration) : The radio control is delivered in factory configuration without any configuration or parameters made by Tecnimodel. The radio is delivered with a left-hand notched stick (mode 2) by default.
• Standard FrSky (Mode 2 to Mode 1 conversion): The radio is delivered in factory configuration without any configuration or parameters made by Tecnimodel. Tecnimodel modifies the joystick configuration from mode 2 to mode 1.
• FrSky Factory (All Joystcks wuth neutral): The radio control is delivered in factory configuration without any configuration or parameters made by Tecnimodel. Tecnimodel disables stick detent: both sticks return to neutral.

Radio Fr-Sky TWIN X14

Dual 2.4Ghz RADIO system

The TWIN X14 stands out as a robust radio system, boasting the capability of utilizing dual 2.4G frequencies simultaneously on the same receiver in TW mode. Different from standard active-standby redundancy solutions, the TW active-active protocol ensures both 2.4G frequency bands are actively engaged on the TWIN series RF module and receiver simultaneously.

Equipped with two internal 2.4G RF antennas, the TWIN X14 offers expansive multi-directional coverage for transmitting signals. Leveraging these attributes alongside the exterior antenna mounting frame, the Twin system provides less latency, higher reliability, and faster data rates with confidence. In addition to the TW mode, TWIN X14 also supports ACCST D16 and ACCESS modes, this means users can benefit from a wide range of compatible receiver options to choose from and bind to when building the RC model.

ERGONOMIC, COMPACT & FLEXIBLE DESIGN

In alignment with the form factor concept of TANDEM X18, the TWIN X14 has been crafted to enhance its portability, reduce weight, and streamline its design. The ergonomic layout ensures that the momentary buttons, shoulder sliders, and switches on the top are effortlessly accessible.

The TWIN X14 offers 4 customizable buttons, thoughtfully placed at the radio panel center for real-time and frequent operations. Take, for instance, when flying an RC glider, to configure these buttons as additional Trim functions by ETHOS, these buttons become invaluable for on-the-fly adjustments then, allowing pilots to adapt the angle of the flaps/surface according to the real-time air environment.

BUILT-IN FLASH STORAGE AND RECHARGING SYSTEM | STAND HOLDER ATTACHABLE STRUCTURE DESIGN

Eliminating the need for users to fret over storage decisions, the TWIN X14 boasts built-in 128MB flash storage, providing ample space for your file storage requirements. Its practicality extends to a battery bay accommodating a 2600mAh Li Battery, easily replaceable and featuring a Type-C port for recharging.

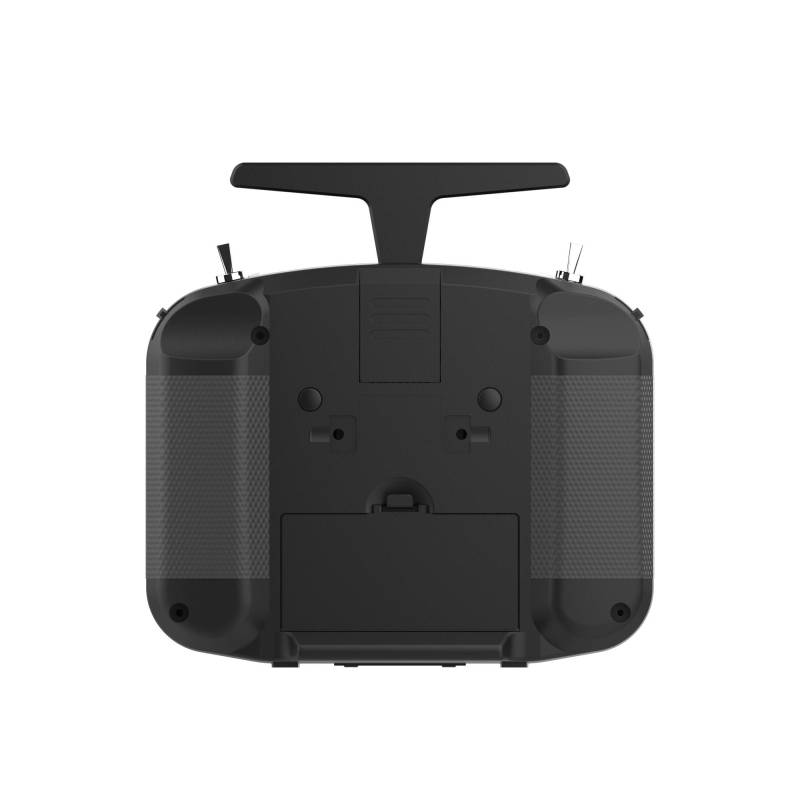

Further enhancing its user-friendly design, the TWIN X14 introduces an attachable and foldable structure on the rear shell. This design allows for the easy installation of an additional stand holder accessory, transforming the X14 not only can be conveniently carried but it can also to be positioned anywhere, offering operational flexibility without having to hold the radio in your hands.

Technical specifications:

• Lightweight, ergonomic and compact design with comfortable rounded handles.
• Easy-to-reach top switches and sliders.
• 2.95" color TFT display with 640×360 resolution
• 4 trims and 4 fast-mode custom buttons (front) and 2 momentary buttons (rear)
• Built-in flash memory, but retains Split milled head screws card slot for memory expansion
• High-precision Hall sensor gimbals with metal panel
• Lite-type external module bay
• Haptic vibration alerts and voice outputs
• Recharging system for 2S Li battery (USB Type-C interface)
• PARA high-speed wireless drive system
• ETHOS operating system
• hull CNC aluminum rear support (optional)
• TW-ISRM dual-band 2.4G internal RF module
• Supports multiple RF protocols: ACCST D16 / ACCESS / TW modes
• TW mode
  • High-resilience RF module providing two 2.4G signals operating simultaneously
  • Long-range control (tens of kilometers, range varies according to RF power parameters).
  • Low latency (＜4ms) for complete telemetry
• Reduced latency capability with greater range and reliability at faster data rates

Specifications :

• Dimension: 192×193×72mm (L×W×H)
• Weight: 610g (Battery Excl.)
• Operating System: ETHOS
• Internal RF Module: TW-ISRM
• 2.95” Color TFT Display Screen Resolution: 640×360
• Number of Channels: Up to 24 Channels
• Operating Voltage Range: 6.5V ~ 8.4V (2S Li-Battery)
• Operating Current: 330mA@7.4V (typ.)
• Operating Temperature: -10℃ ~ 60℃ (14℉~140℉)
• Built-in 128MB Flash Storage
• Battery Bay Size: 69.5×38.5×20mm (L×W×H)
• Data Transmission & Charging Interface: USB Type-C
• USB Adaptor Voltage and Current: 5V+0.2V, ≥2.0A
• Compatibility: ACCST D16 / ACCESS / TW modes
• USB charging - Requires USB type C cable

Scope of delivery :

• FR-Sky TWIN X14 radio control system, green color
• Carrying case
• Battery
• Neck strap
