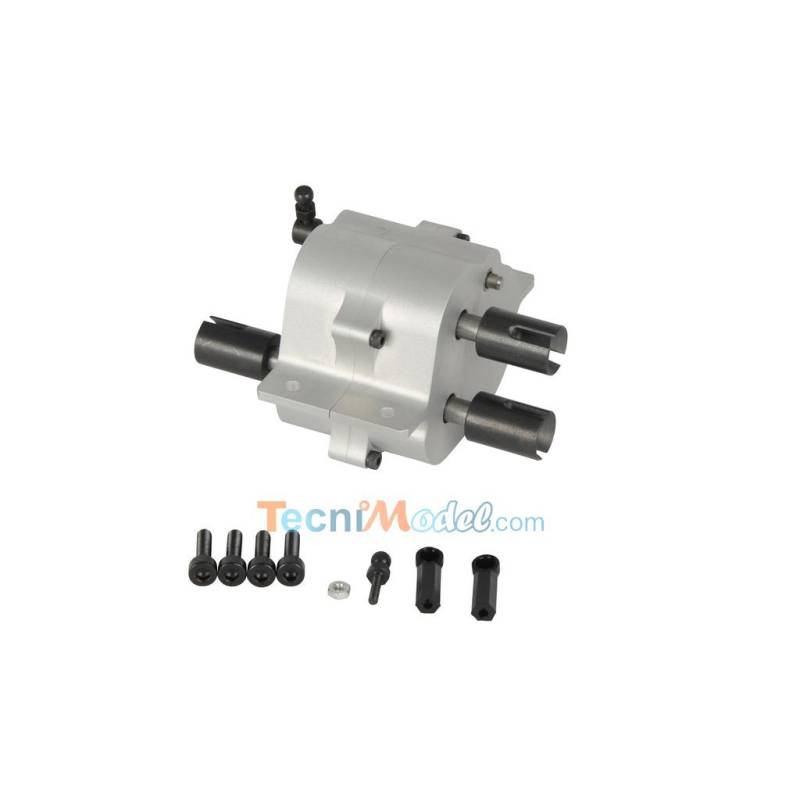

2-speed transfer box with self-locking differential Carson

2-speed transfer box with self-locking differential Carson

Reference Carson 500907266

A compact two-speed, radio-controlled transfer box with a self-blocking longitudinal differential. This self-locking differential makes it possible to compensate for the differences in movement between the front and rear decks. Its installation is very simple using the existing holes of the Tamiya chassis.

Characteristics:

• 2 reduction ratios (1/3 and 1/1)
• The cumulative reduction ratios with the gearbox Carson ref 500907265 are specially studied for an rc truck: 1st: 1/33.96, 2nd 1/16.98, 3rd 1/11.3, 4th 1/5.66
• On bearings
• CNC machined aluminum housing
• Steel sprockets.
• Simple installation using existing holes on the chassis.
• Output shafts diameter Ø5mm
• Speed control possible by mini servo
• Dimensions: 32 x 62 x 40 mm
• Weight: 120g

This transfer box, gearbox and front and rear decks allow different configurations:

Tractor Tamiya 4x2

Compatible with: Mercedes-Benz Actros Gigaspace 1845, MAN TGX 18.540, SCANIA R470, VOLVO FH12, Mercedes-Benz 1838LS, Mercedes-Benz 1850

1 rear deck Carson 500907268 with self-locking deck, transmission by the original 3v Tamiya box.

Tractor Tamiya 4x4

1x Front deck Carson ref 500907267

1x set of suspension blades Carson ref 500907280

1x Rear deck Carson ref 500907268

1x Compact two-speed gearbox Carson ref 500907265

1x Transfer box with self-blocking differntial Carson ref 500907266

1x set of drive shafts for truck 4x4 Carson ref 500907269

Tractor Tamiya 6x4

2 rear decks Carson ref 500907268

Tractor Tamiya 6x6

1x Front deck Carson ref 500907267

1x set of suspension blades Carson ref 500907280

2x Rear decks Carson ref 500907268

1x Compact two-speed gearbox Carson ref 500907265

1x Transfer box with self-locking differential Carson ref 500907266

1x set of drive shafts for truck 4x4 Carson ref 500907269
