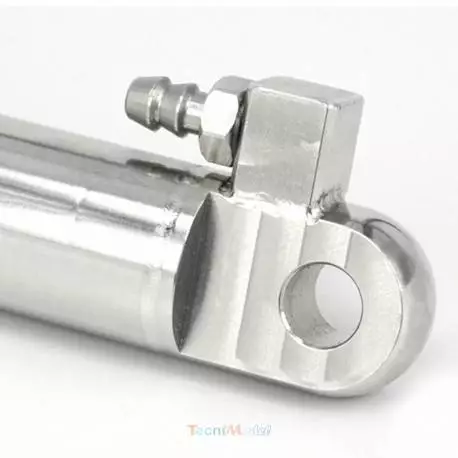

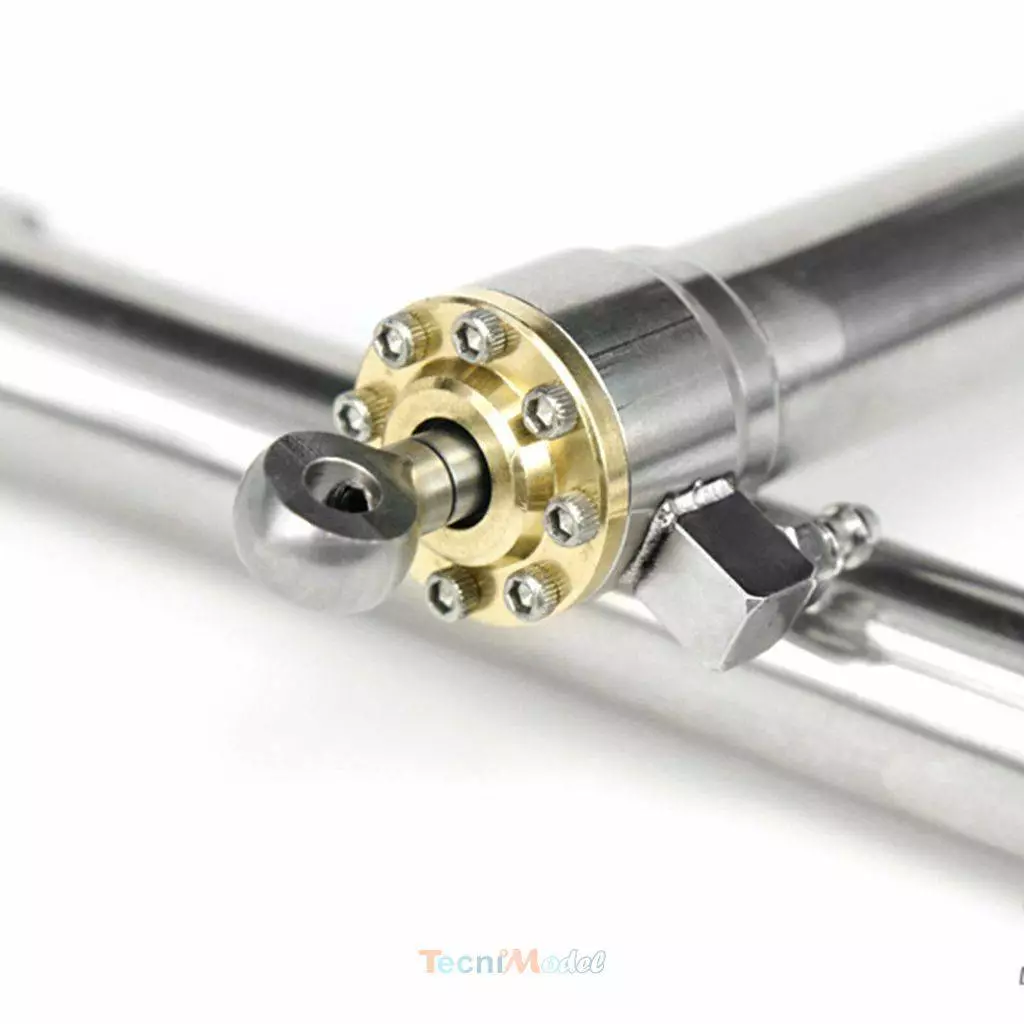

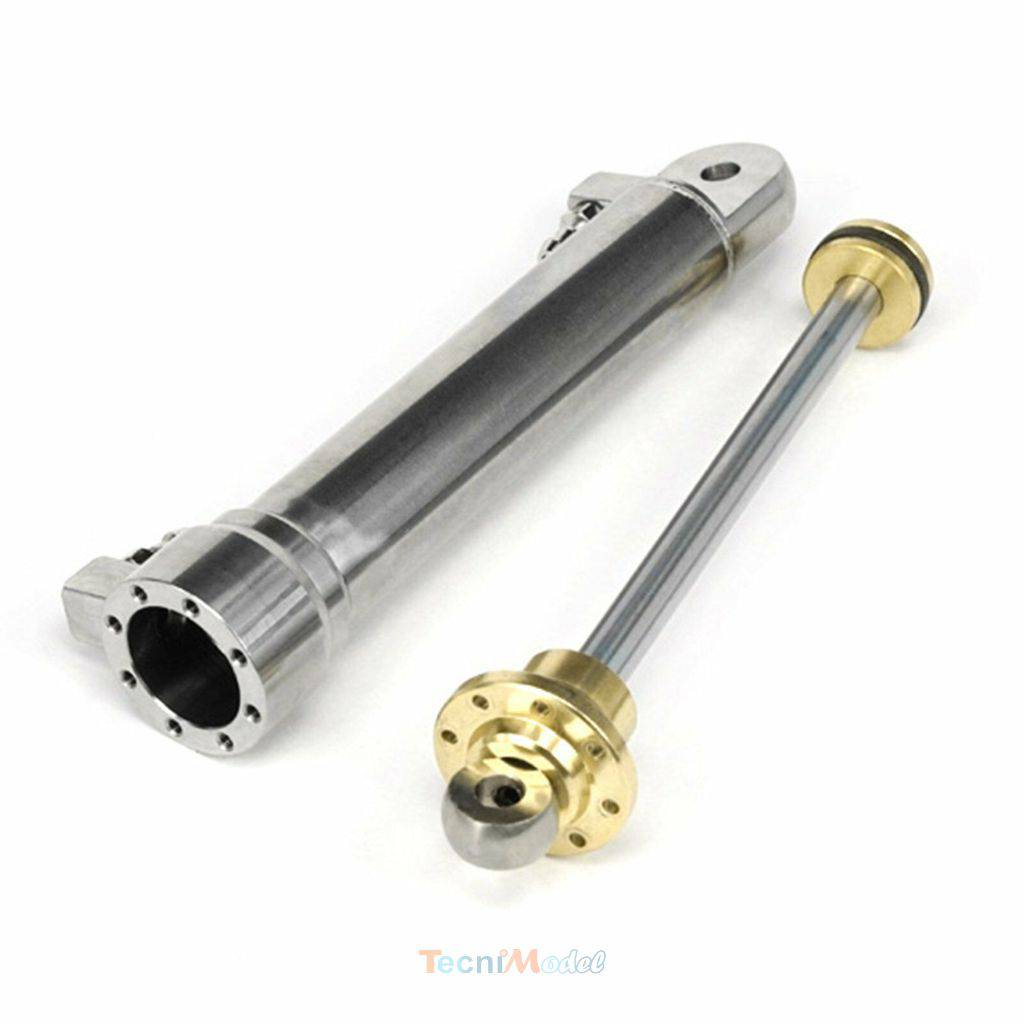

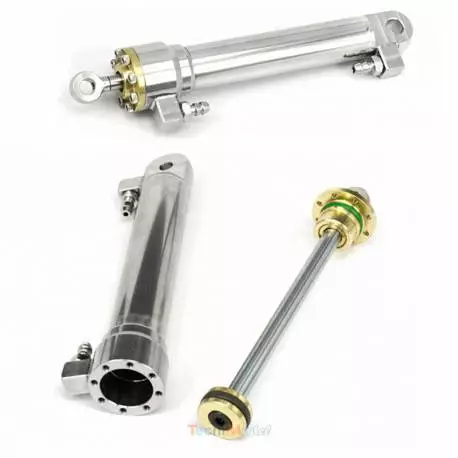

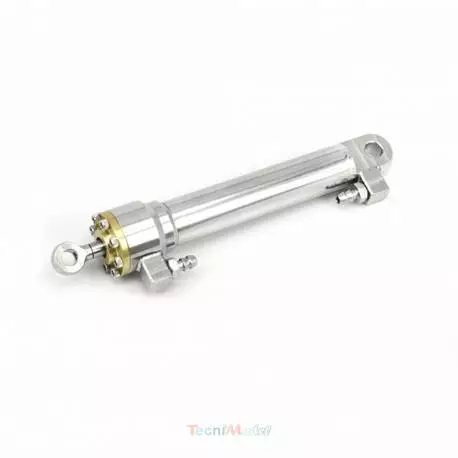

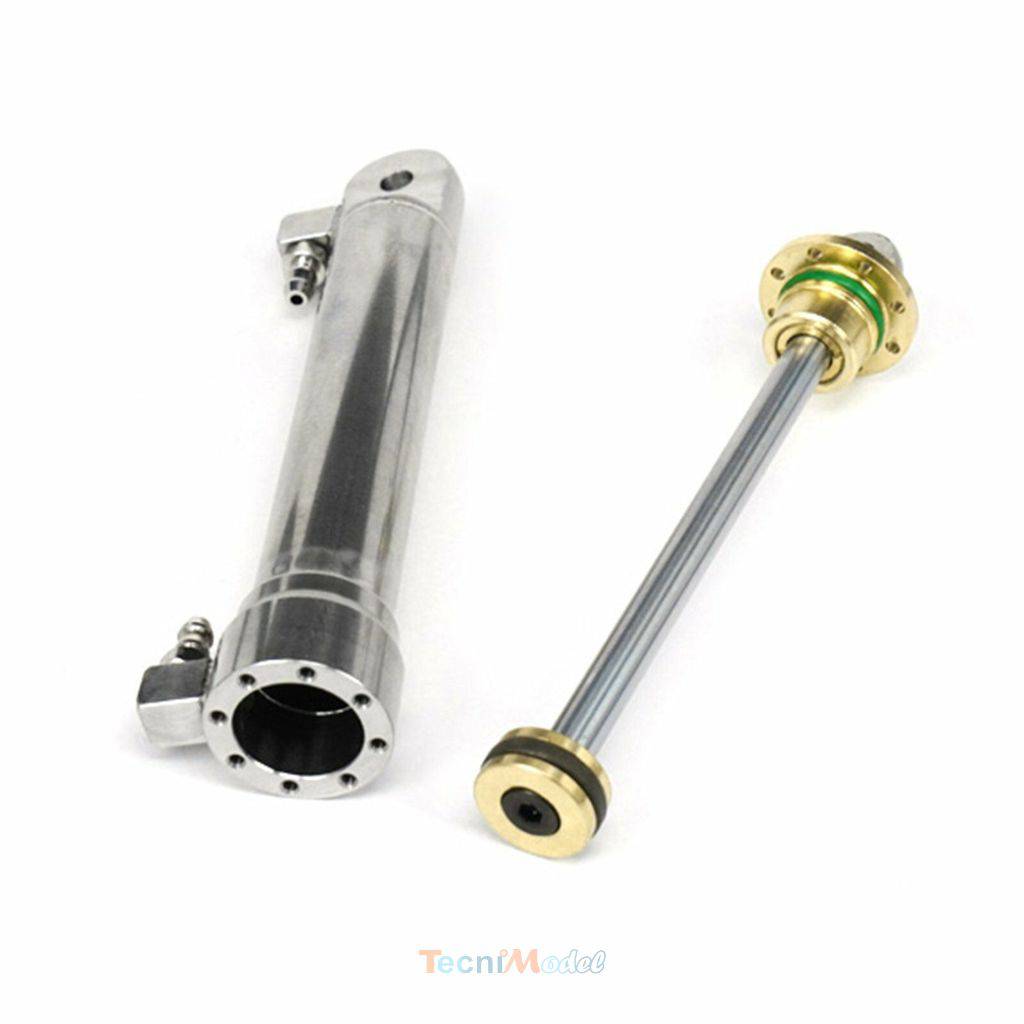

Hydraulic cylinder Ø12mm stroke 50mm LESU
Hydraulic cylinder Ø12mm stroke 50mm LESU YZ-1204-50
Min - Max length (mounting center distance): 89.7mm - 139.7mm
Reference : HYLUYZ120450
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AF07
Hydraulic cylinder Ø12mm stroke 50mm LESU
LESU YZ-1204-50
Delivery: 1 hydraulic cylinder with connection and hose (approx. 2x25cm).

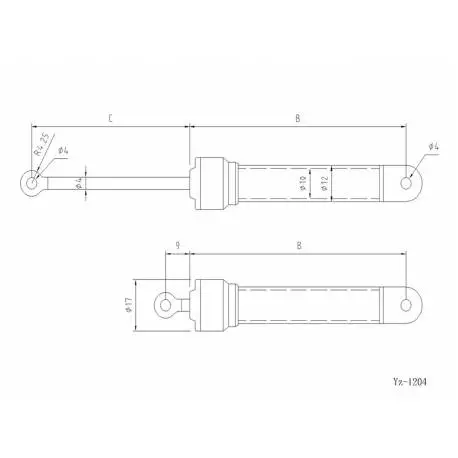

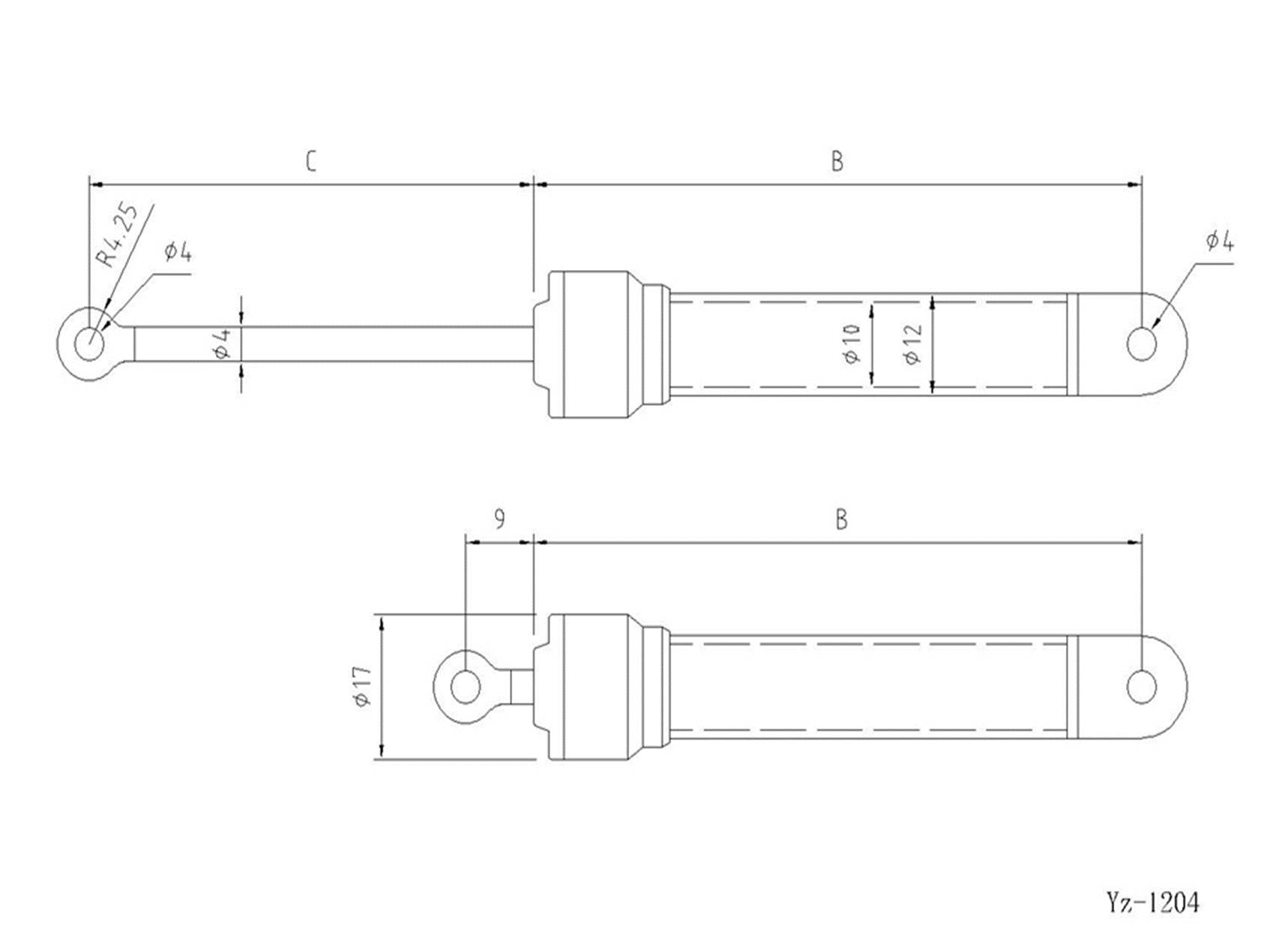

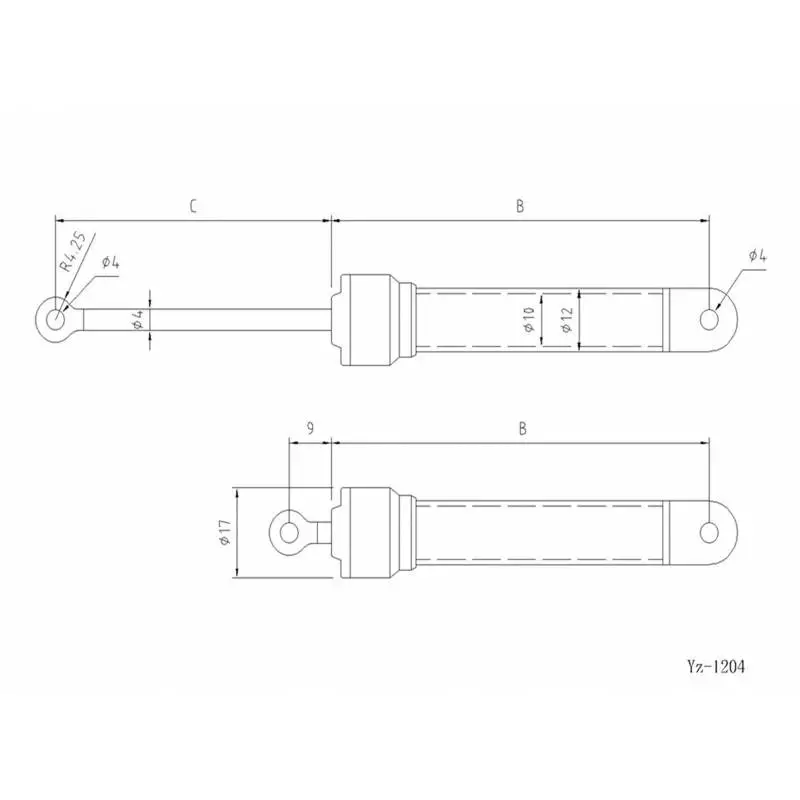

Features :
- Stroke: 50mm (C-9mm)
- Min - Max length (mounting center distance): 89.7mm - 139.7mm
- B = 80.7mm
- C = 59mm
- Cylinder body diameter: Ø12mm
- Body material: stainless steel
- Connection for Ø2.5/Ø4mm hose
| Race | 50mm |
|---|
