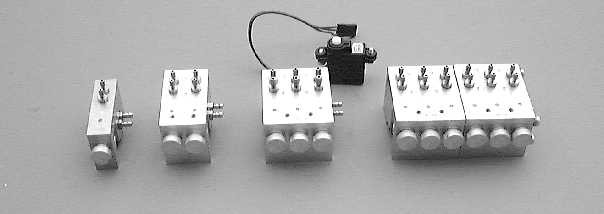

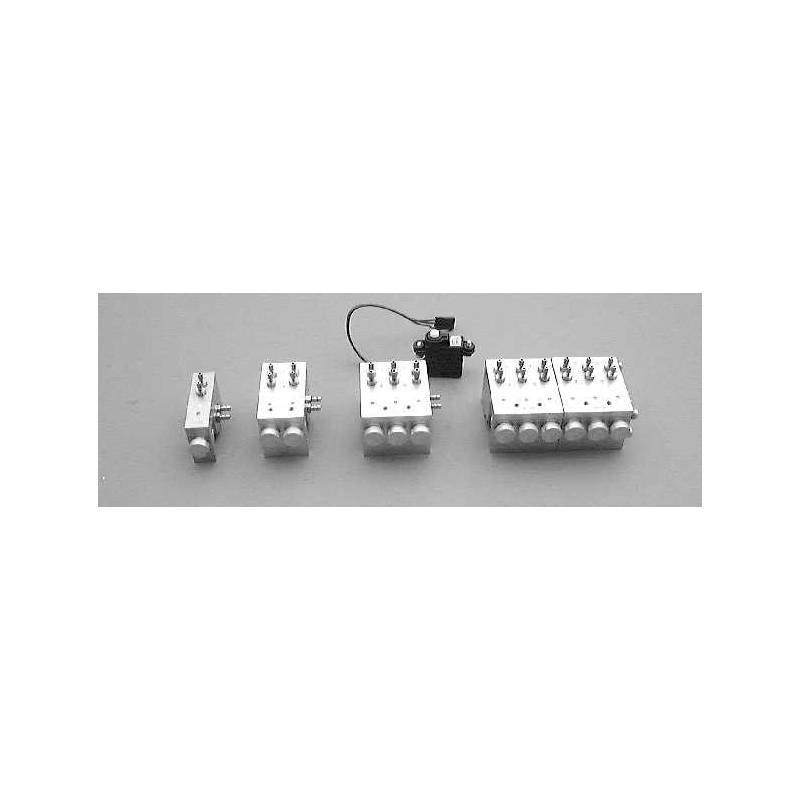

Leimbach standard 7-way hydraulic distributor for Hitec servo
Leimbach H507H
Supplied with the following connections:
- On P and T (pressure and return) : H023 (M3 - Ø2.5mm - for Ø4mm hose ref: H058)
- On A and B (cylinder): H022 (M3 - Ø1.5mm - for Ø3mm hose ref: H052)
Compatible servos: Hitec HS-53 and HS55
Dimensions (without fittings and servo): 44x25x84mm
Supplied without clamping rings (see "accessories" tab below)
7-way valve = for controlling 7 hydraulic movements
Designed for pressures from 12 to 16 bar
