Infrared kingpin with trailer steering servo control system
PistenKing TRU-LKB-TAM

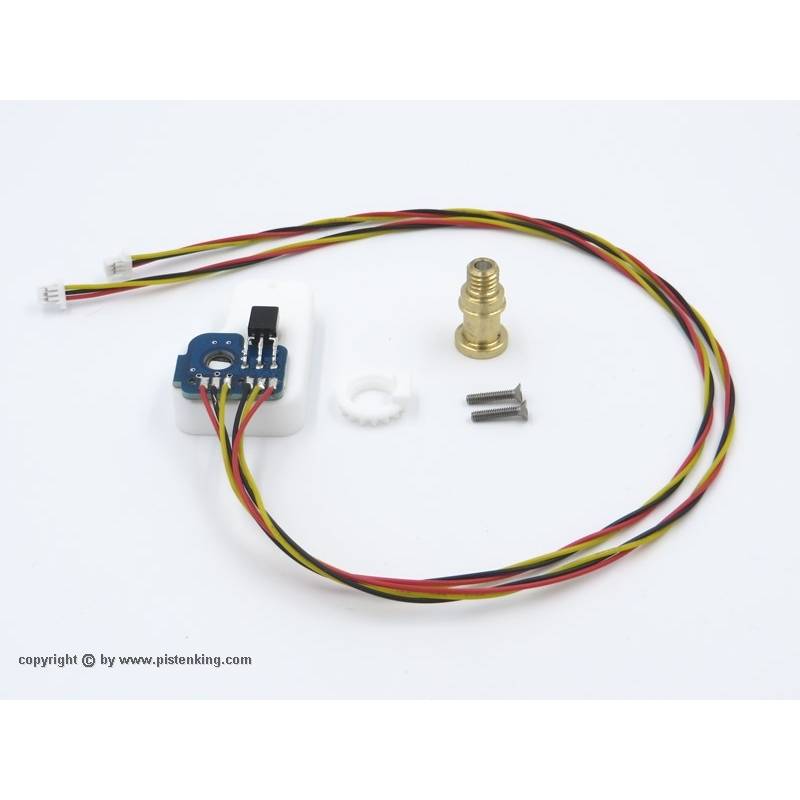

This system, fitted with an infrared kingpin, measures the steering angle between the towing vehicle and the coupled trailer. With the appropriate electronics, it enables steering axles to be controlled on the trailer.
The system is designed for mounting on the Goldhofer low-loader from Carson. Of course, it can also be used for private construction projects.
In order to install this kingpin on the model, the original mounting hole has to be enlarged. Otherwise, no further adaptation is required on the trailer. Connecting cables with plugs are designed for use with the PistenKing IRAM trailer control module with additional functions. Adaptation of the plugs is necessary for operation with ServoNaut AM6 module.
Technical data:
- Cable length: 150mm
- Connection: cable with plug
