LV7770S Servonaut led boards for Tamiya Scania 770S front lights

Led plates Servonaut for Scania 770S headlights Tamiya

Servonaut LV7770S

Fitting these plates involves some delicate operations, preferably reserved for experienced modellers.

This kit of leds Servonaut allows the installation of realistic lighting in the headlights of the Tamiya Scania 770S RC truck ref: 56368 / 56371.

Operates from 7.2V to 12V.

Different-colored cables to identify different lights, length approx.100cm.

Suitable for RC trucks Tamiya Scania 770S 6x4 and 8x4, with light modules Servonaut MM4 / ML4 / LA10 / MM54 / M20+ / M24 / S22 / E22 / G22 / SS, as well as other classic light modules with common "plus".

(Not suitable for MFC-01 / MFC-03 Tamiya or Servonaut S10 / UL4 / UM4 / UAL)

This kit also provides a complete front light system, with 8 functions:

• Dual-intensity daytime running lights
• Front and side turn signals
• Night lights
• Low beam
• High beam
• Fog lamps
• Cornering lights

Thanks to diffusing plastic parts and mirrors added to the light units, these plates offer a much better rendering and more realism than simple plates.

Scope of delivery:

• 2 Plastic inserts for mounting the circuit board on the optical compartment
• 2 LED lighting boards
• 2 Plastic brackets for indicators / side marker lights
• 1 Set of mirror sheets
• 2 Fiber optics for indicators
• 2 Diffusing white plastic elements for daytime running lights
• 2 Wired LEDs for turn signals / side marker lights
• 2 Wired LED bundles for side marker lights (side panels)
• 2 M2x8 screws for mounting plate
• 2 M2x12 screws for mounting plate
• 1 Ø0.8mm drill bit

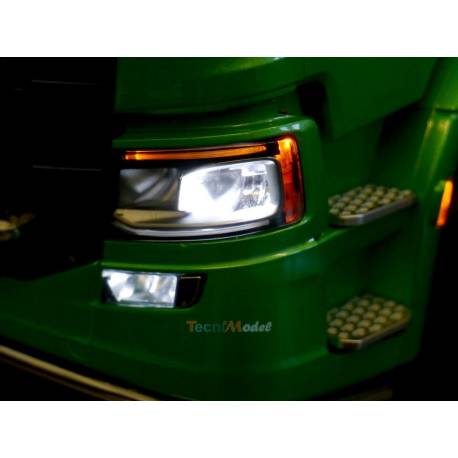

Images show lights with original Tamiya parts (not included in this kit).
