Led board for Tamiya Scania 770S 8x4 flash ramp with LBSefect
Led board for Tamiya Scania 770S 8x4 flash ramp, supplied with LBSefect module.
Reference : PCSH45810
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AF05
Led board for Tamiya Scania 770S 8x4 flash ramp

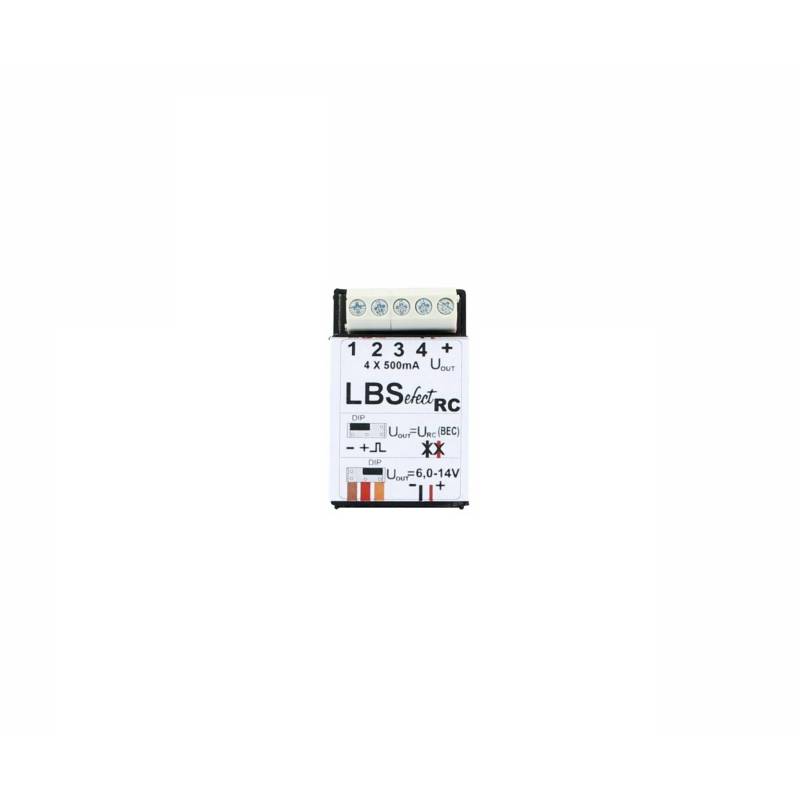

Supplied with LBSefect electronic module

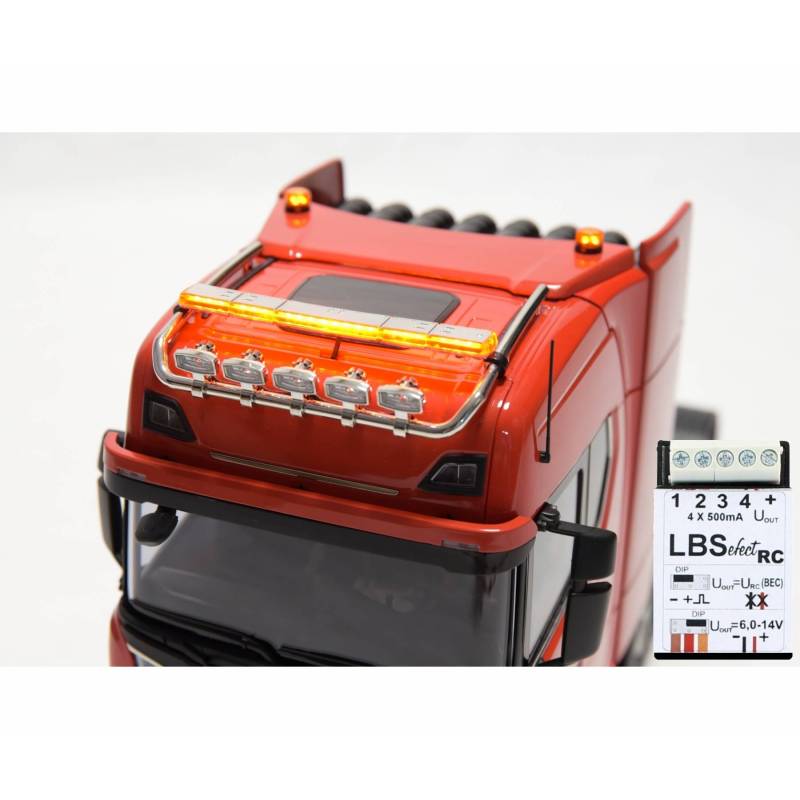

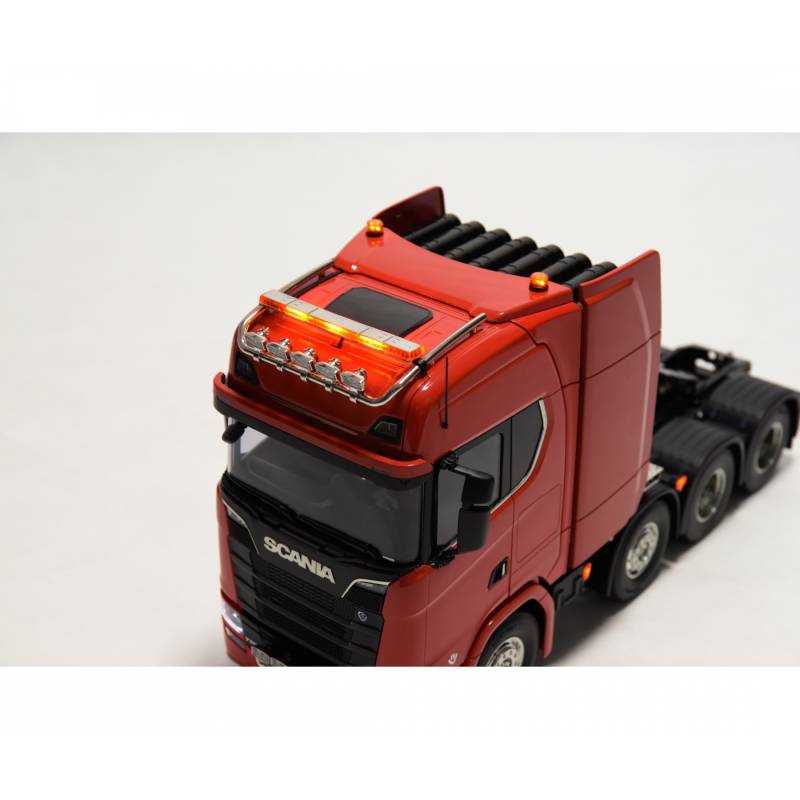

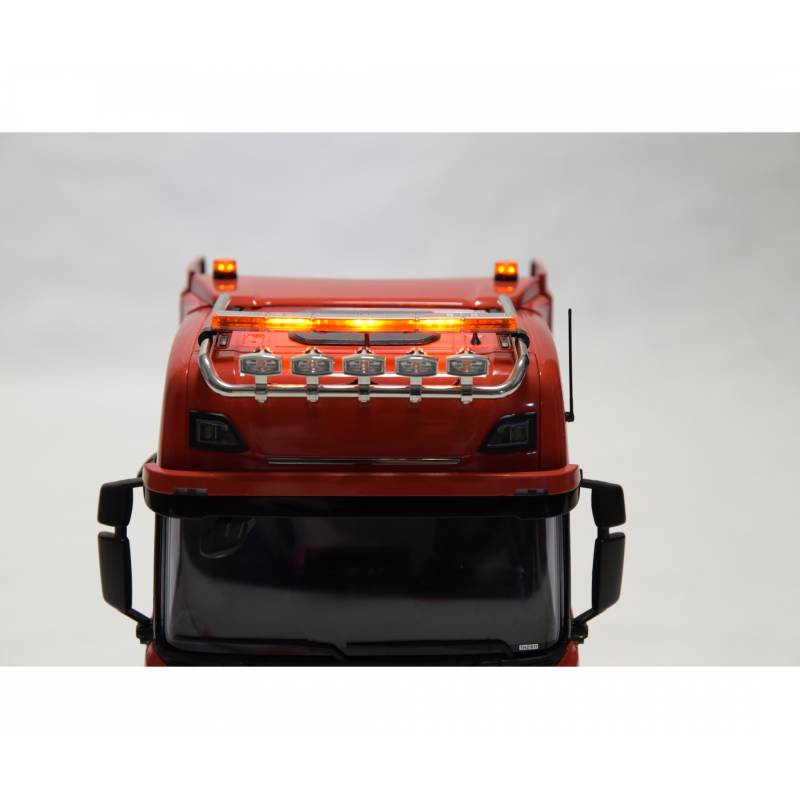

Intended for installation in the roof flash bar of the Scania 770 S 8x4 heavy-duty tractor Tamiya (56371).
The LED bar comprises 4x4 sections of orange LEDs, for a total of 40 LEDs. Supplied with 300mm cables. LBSefect control electronics are included for use with strobe effects, for example.

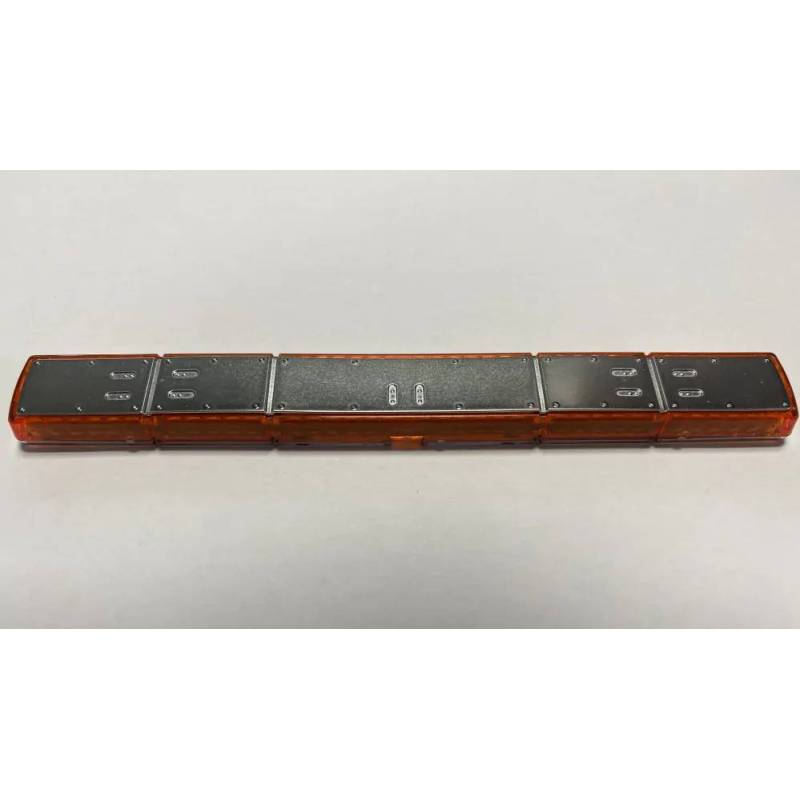

Designed to fit the kit's original ramp (requires minor modification of one of the plastic parts). The plastic parts of the flash bar shown in the photos are not included in delivery.
Two programs are preset at the factory and can be selected at any time from the remote control.
A 3-position switch (on-off-on) can be used to manage the 2 preset programs via the transmitter.

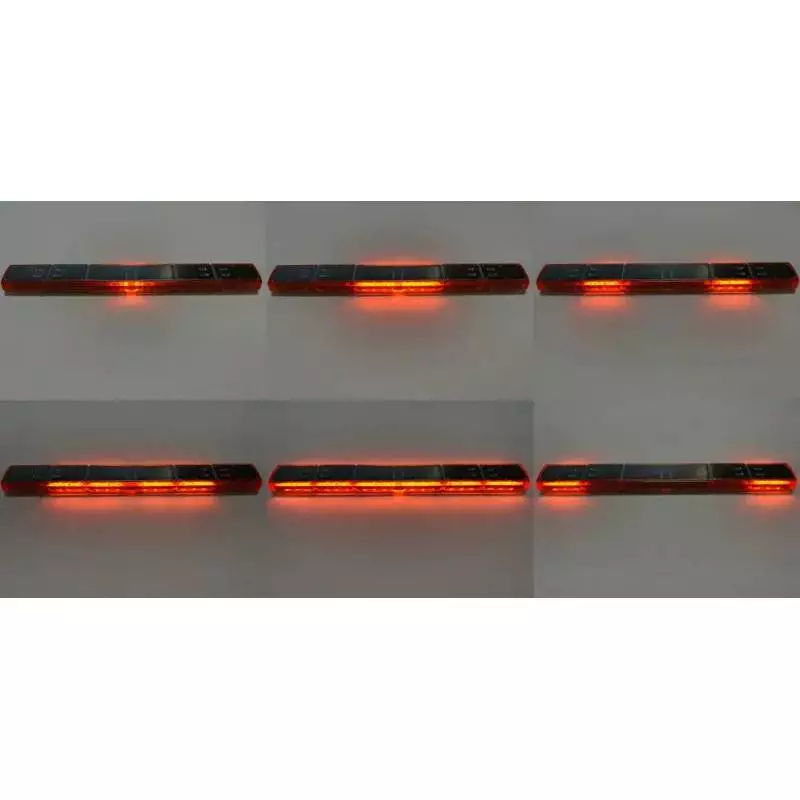

The flash module offers a total of 10 different light simulations (warning lights / strobe effects).
Operating voltage via BEC 5.0-5.5V/DC or external power source 6.0-14.0V/DC.
Caution: For input voltages of 12V or more, install the supplied diode on the + output of the LBS module, observing the correct polarity (see instructions).
Requires patch cord for connection to receiver (see "accessories" section below).
Features :

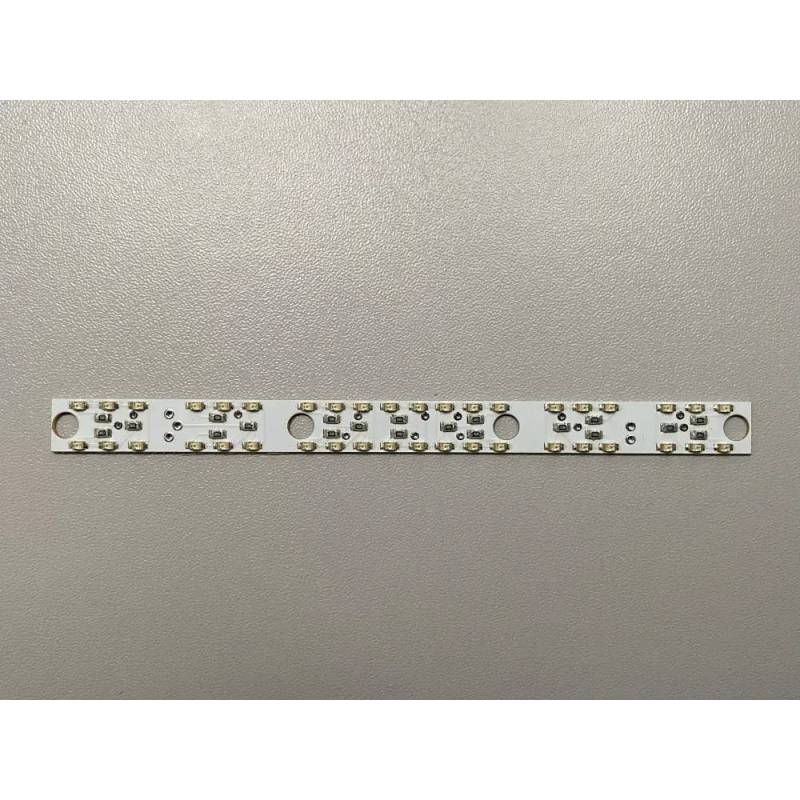

- Printed circuit board with 40 LEDs
- Connection cables approx. 300mm long
- Suitable for 7.2V or 12V supply voltage
Recommended accessories:
| Truck brand | Scania (S) |
|---|---|
| Voltage (V) | 7.2 V - 12 V |
| Color | Orange |
