MAN small tipper forwarder with 4x4 transmission in B configuration and Standard finish

Trademark: LESU

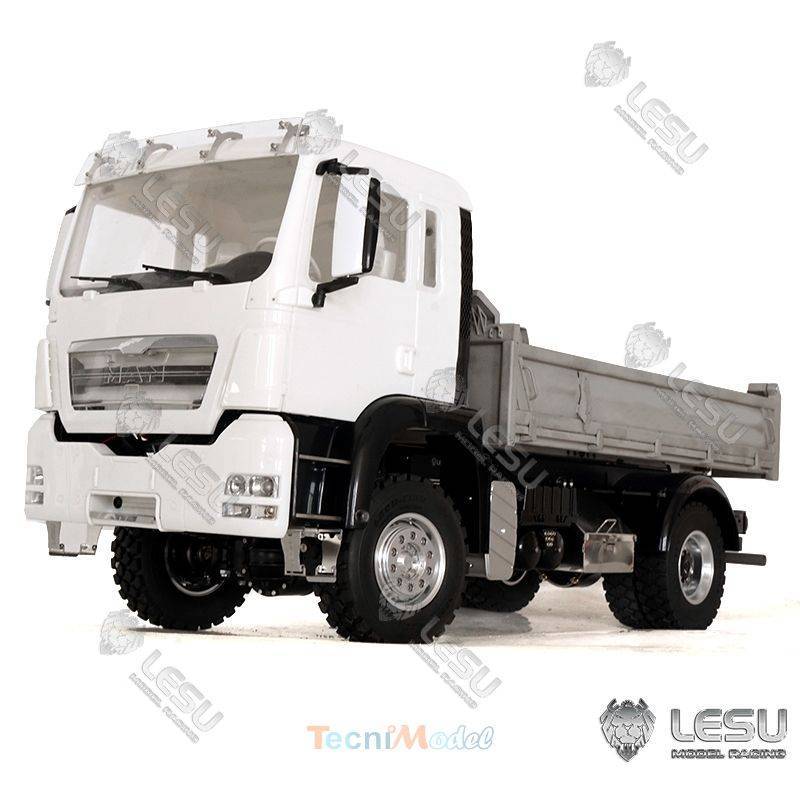

1/14 scale radio-controlled model of a MAN 4x4 tipper truck in metal.

Model delivered semi-assembled: all assemblies to be checked (tightening of screws). Cab to be assembled. Delivered unpainted. Model for modellers with previous experience.

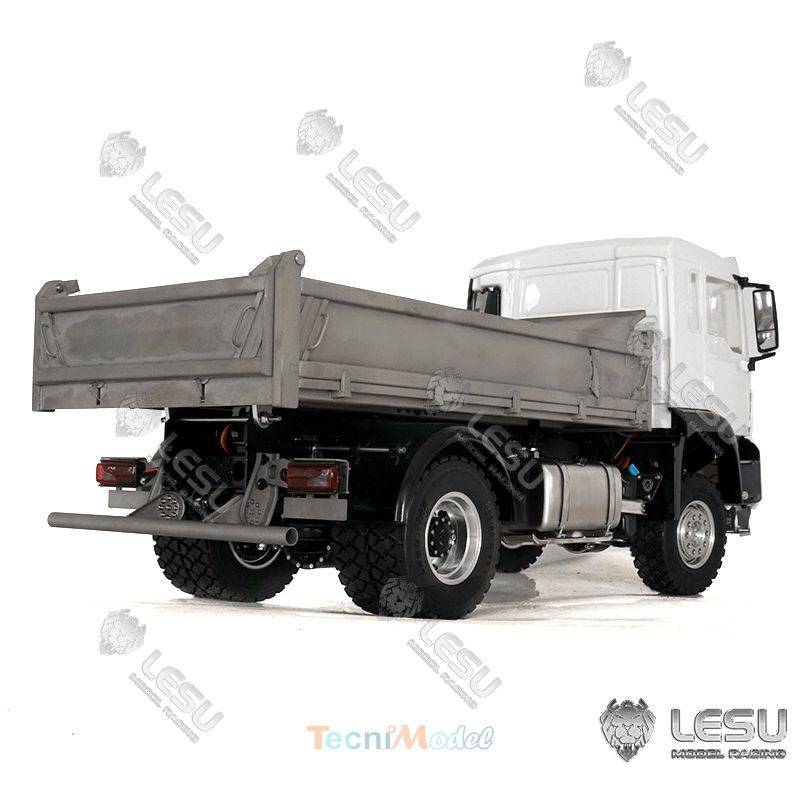

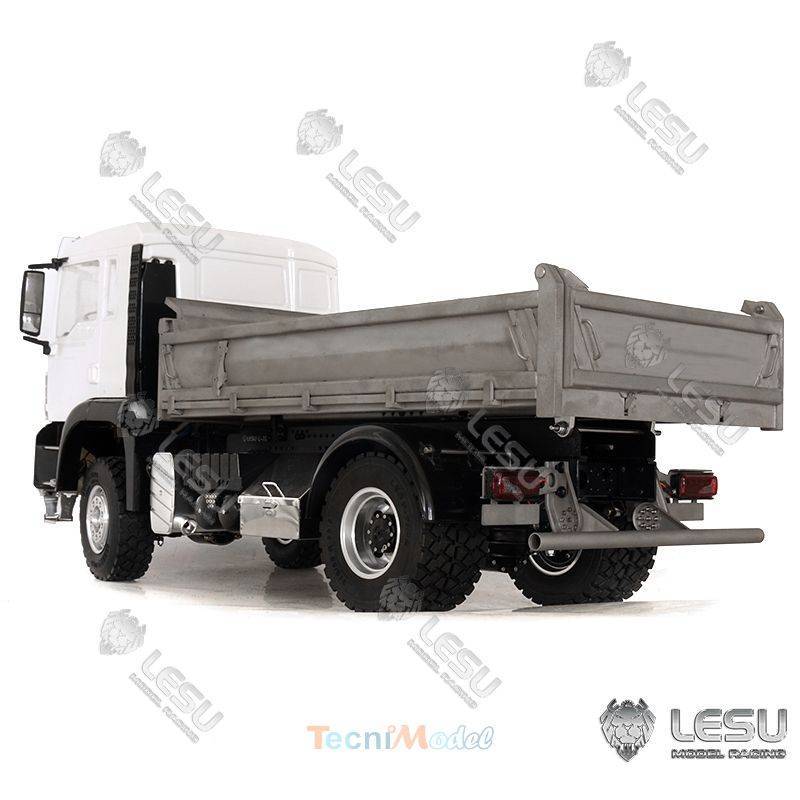

Truck in B configuration (see photo):

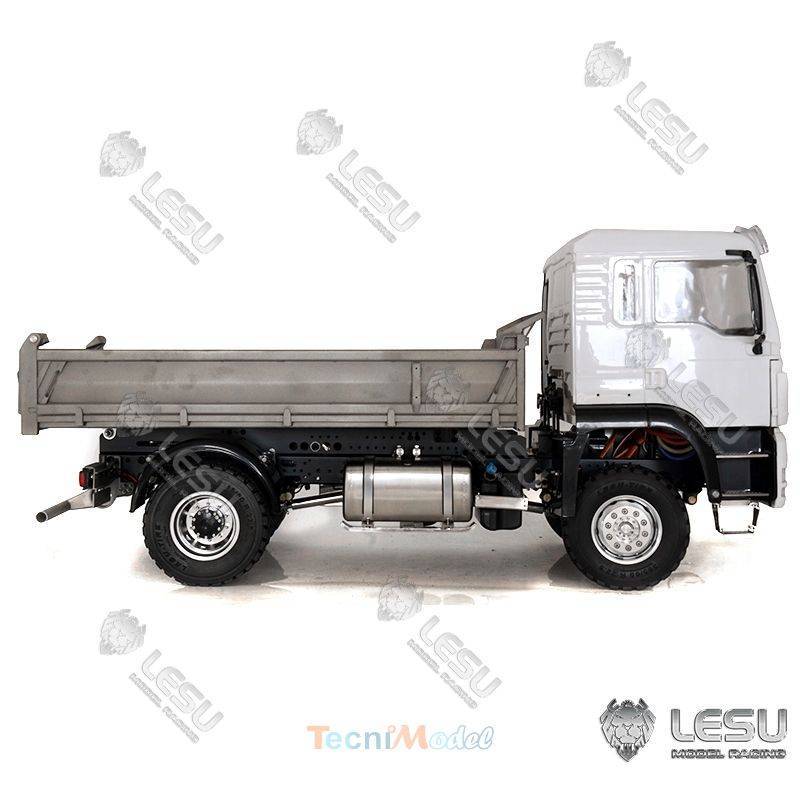

Right side :

• 1 tank
• 1 ADblue tank

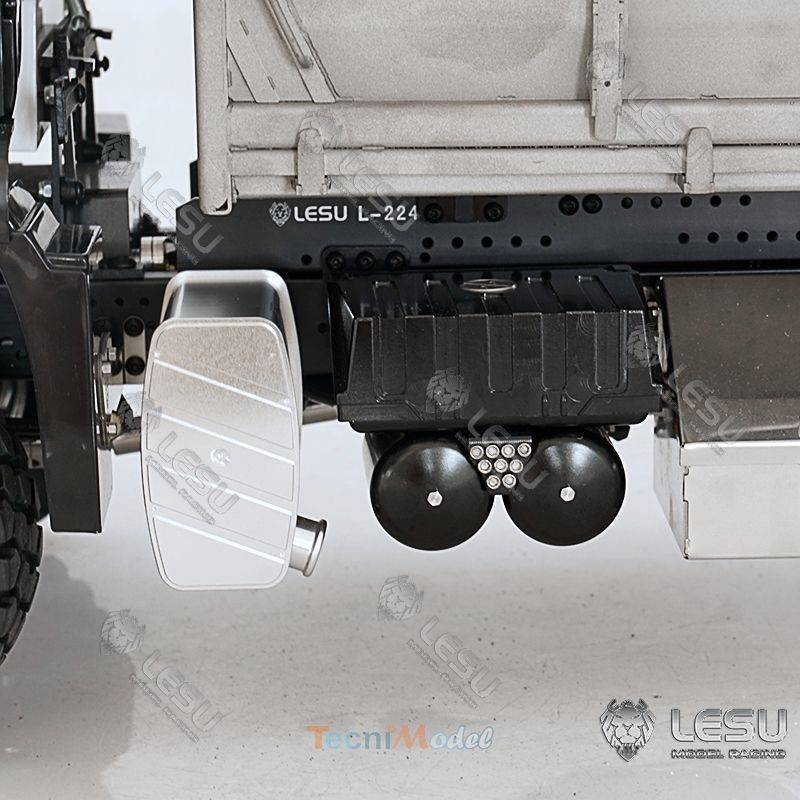

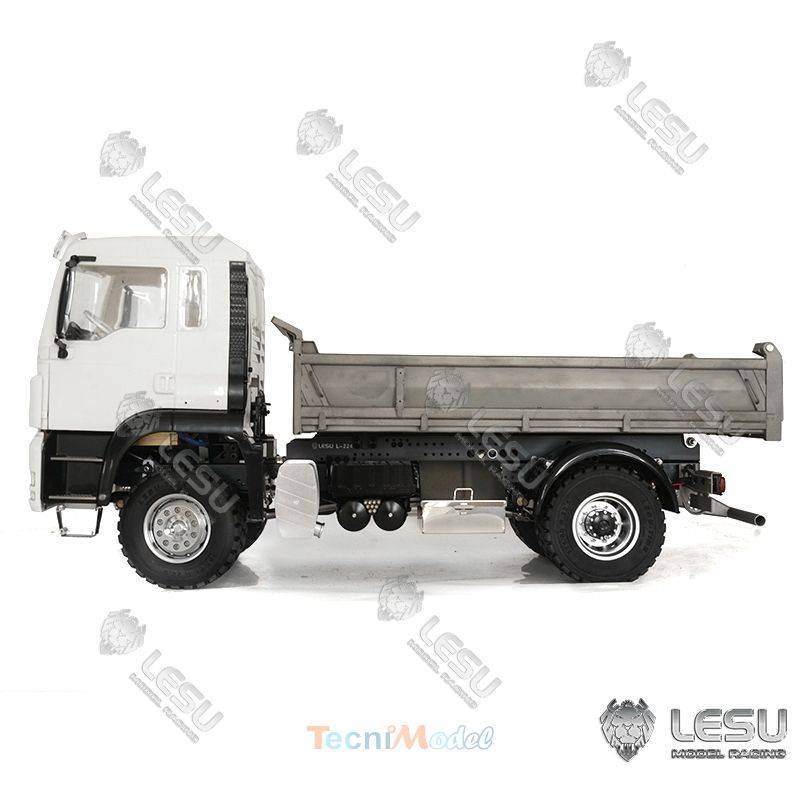

Left side :

• Exhaust
• 2 air tanks + battery box

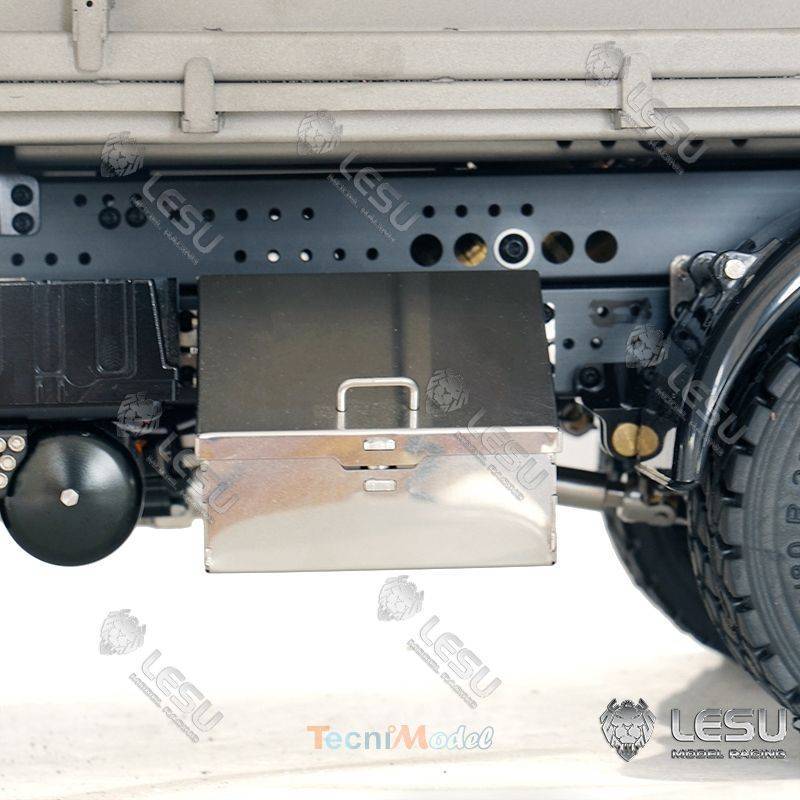

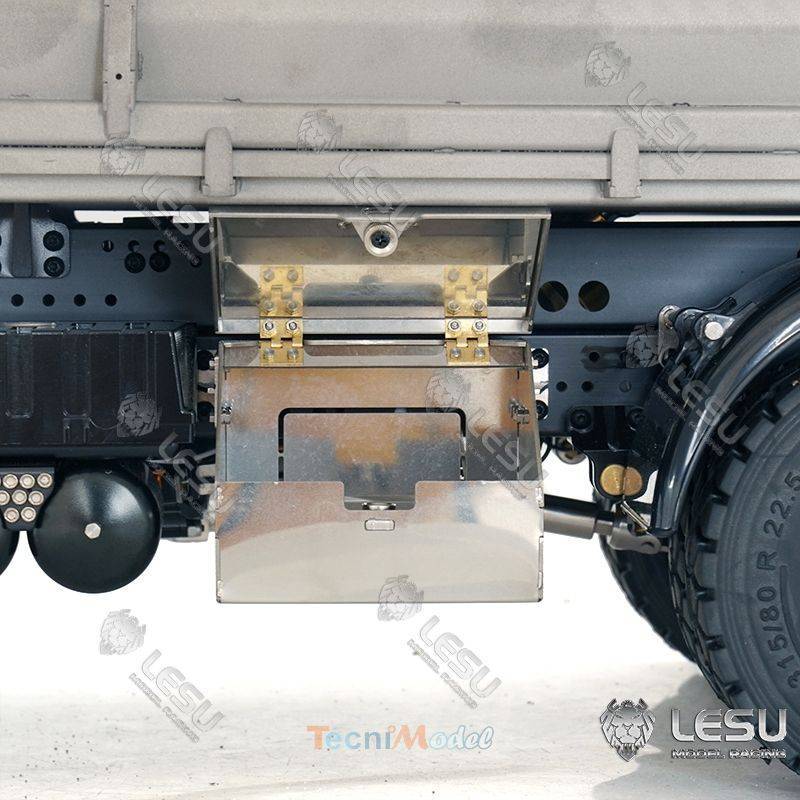

• 1 metal storage box

Standard finish, not including the following options :

• S-1263 Rotating beacon
• S-1259 Spotlights upper grille
• G-6168 Metal handrail
• G-6148B Metal step X2
• VG-1006 Hitch
• S-1256 Clearance lights
• LS-A0012 Winch
• G-6172 Winch support

Scope of delivery:

- All-metal 4x4 chassis, with radio-controlled differential-locking axles, metal suspension, metal 2-speed gearbox, metal transfer case.

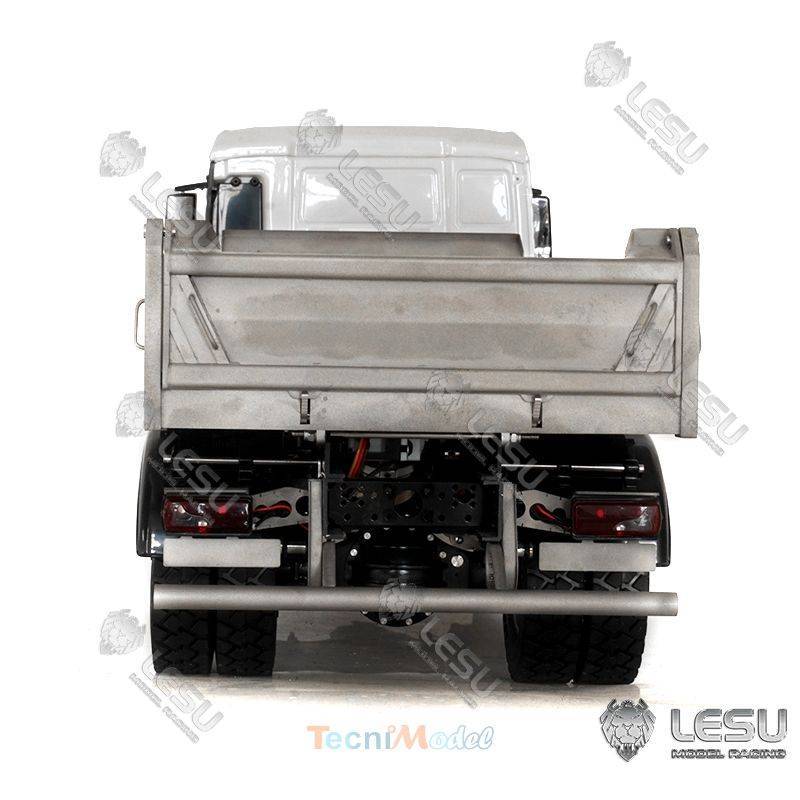

- Steel bucket with hydraulic bucket-lift system via telescopic cylinder, door with automatic locking.
- Motor, ESC, light module and sound module supplied.

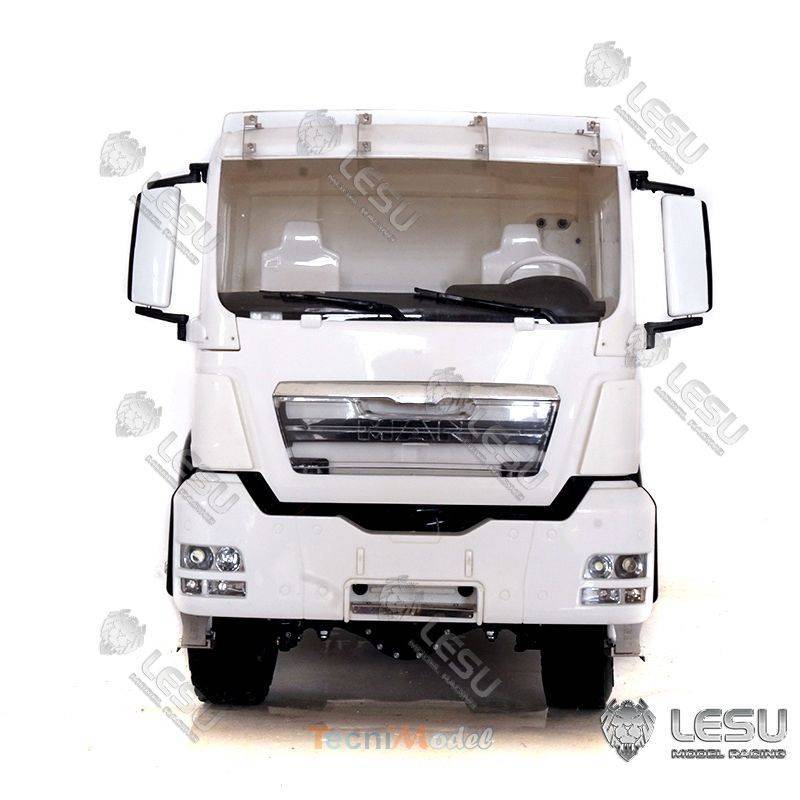

- Plastic cab for assembly and painting, with plastic and metal accessories

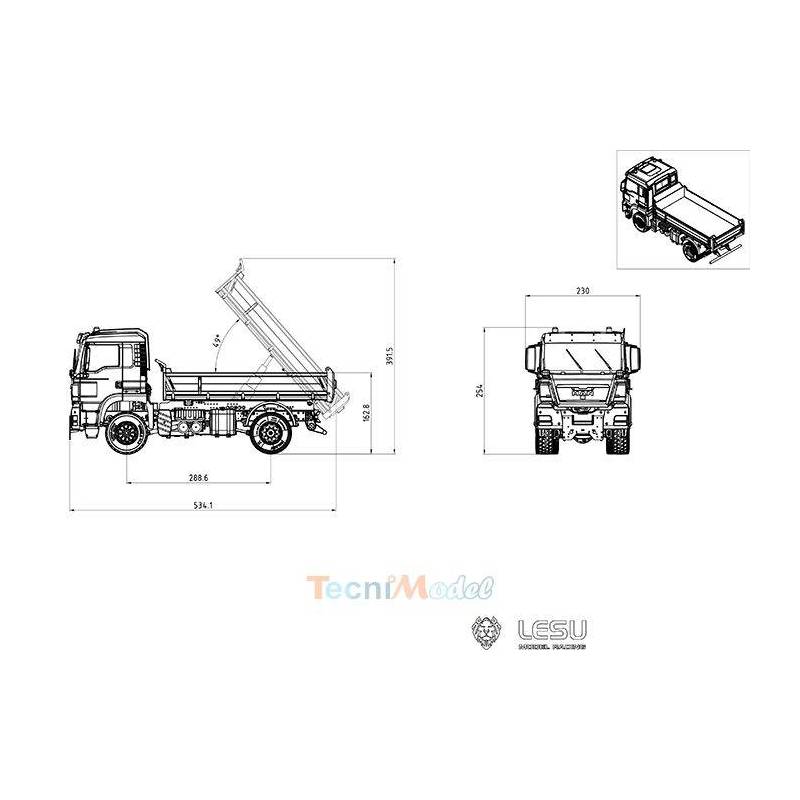

Features:

- Scale: 1/14
- Length: 54 cm
- Width: 18.5 cm
- Height: 25.5 cm
- Weight: 6.2 kg

Hardware not included required for operation:

- Programmable radio control unit ( 7 channels minimum ).
- Lipo 2S 7.4v or 3S 11.1v battery
- Hydraulic oil.

Number of radio control channels required :

1) Steering (proportional, example: 1 stick)
2) Motor variator (proportional, example: 1 stick)
3) Gearbox (example: 2-position switch)
4) Differential lock (example: 2-position switch)
5) Public address module control (example: 3-position switch)
6) Light module control (example: 3-position switch)
7) Hydraulic lift pump control (proportional, example: potentiometer)
