Vehicle lighting control unit by LESU

Vehicle lighting control unit

LESU EL-005

Compact, easy-to-use light module for trucks, trailers, construction equipment, small vehicles...

Turn signals, brake lights and reversing lights are controlled automatically, via the steering and propulsion channels.

Parking lights, low beam, high beam and warning lights are controlled via a radio control channel. High beams are also used for the headlamp flashing function.

We recommend using a 2-position switch to control the lights. A 3-position switch or a not self-centering stick may also be suitable.

The module incorporates a buzzer to simulate reversing beeps. The buzzer switches on automatically when the reversing lights come on.

No external power supply required.

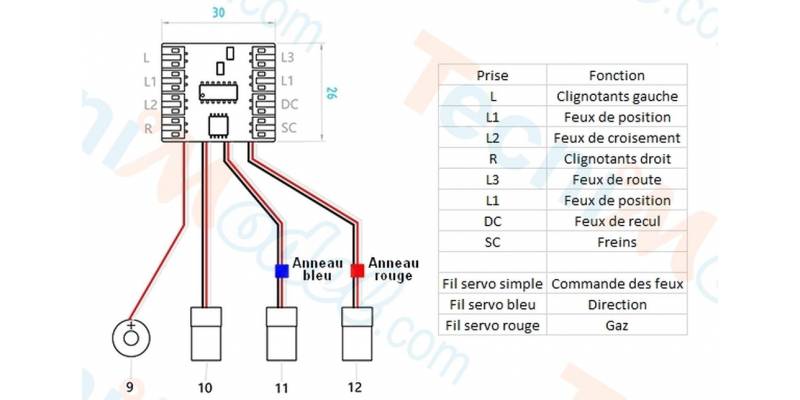

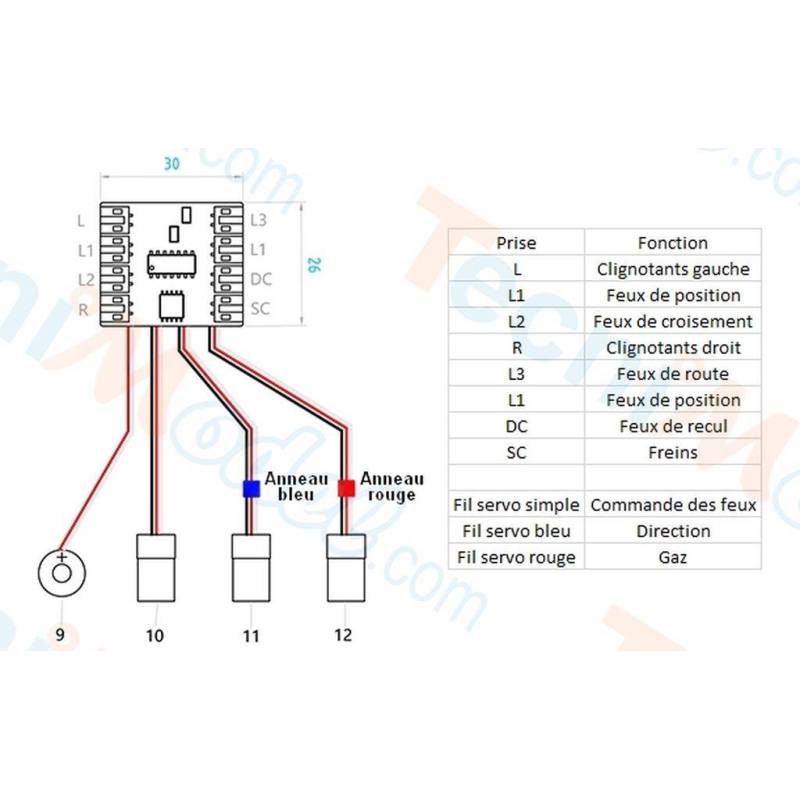

Board dimensions only: 30x26x9mm

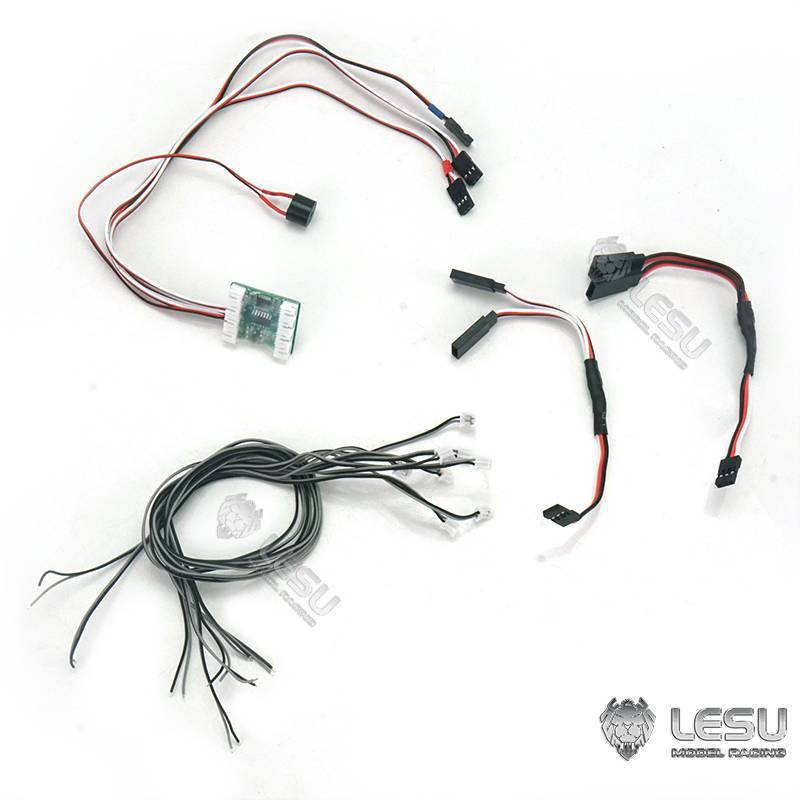

Kit contents :

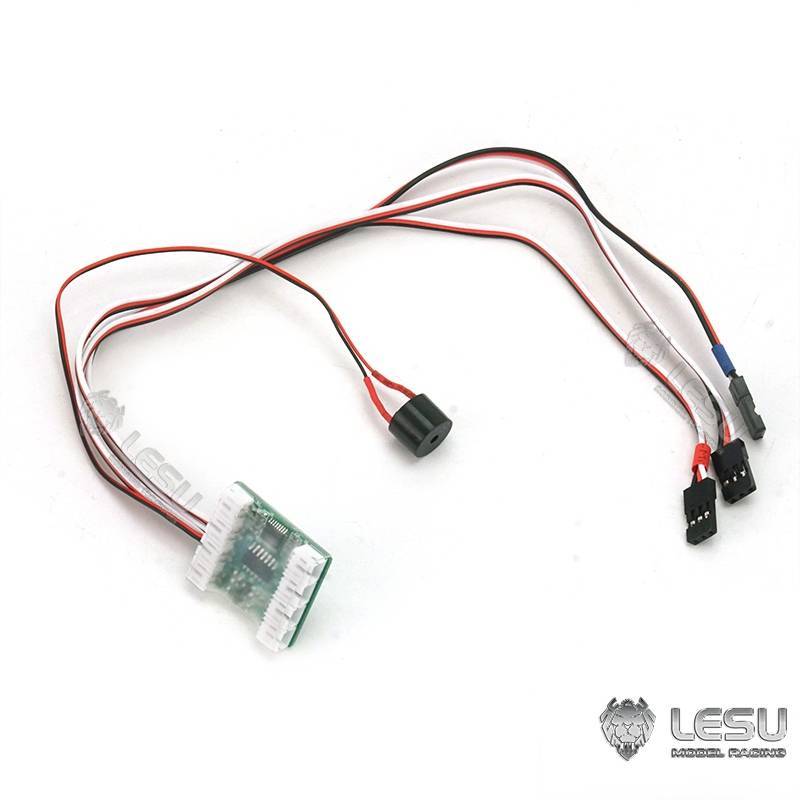

• Electronic control board

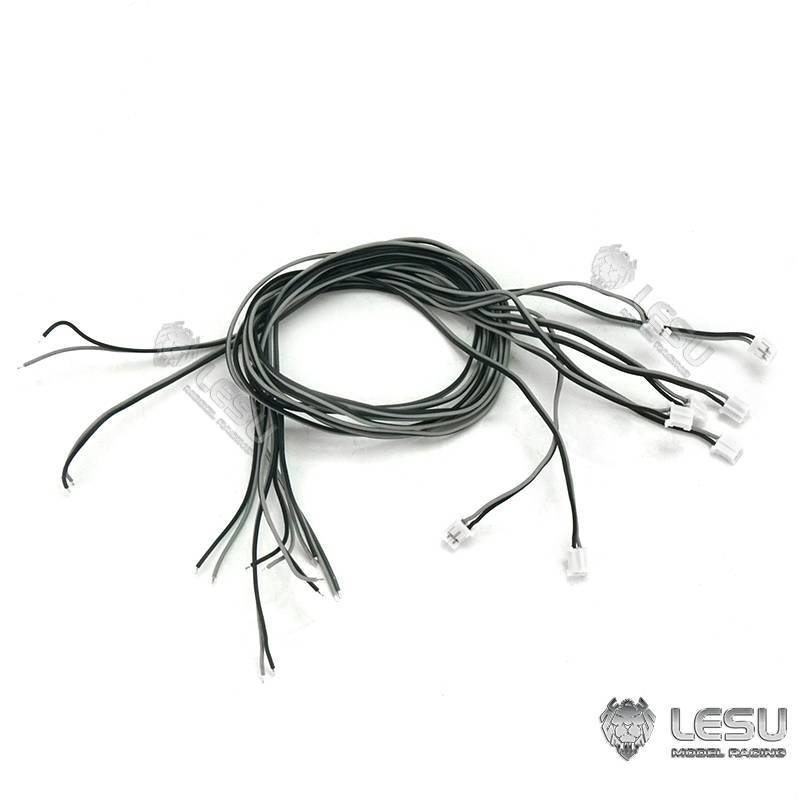

• 8 Wired sockets for adding LEDs

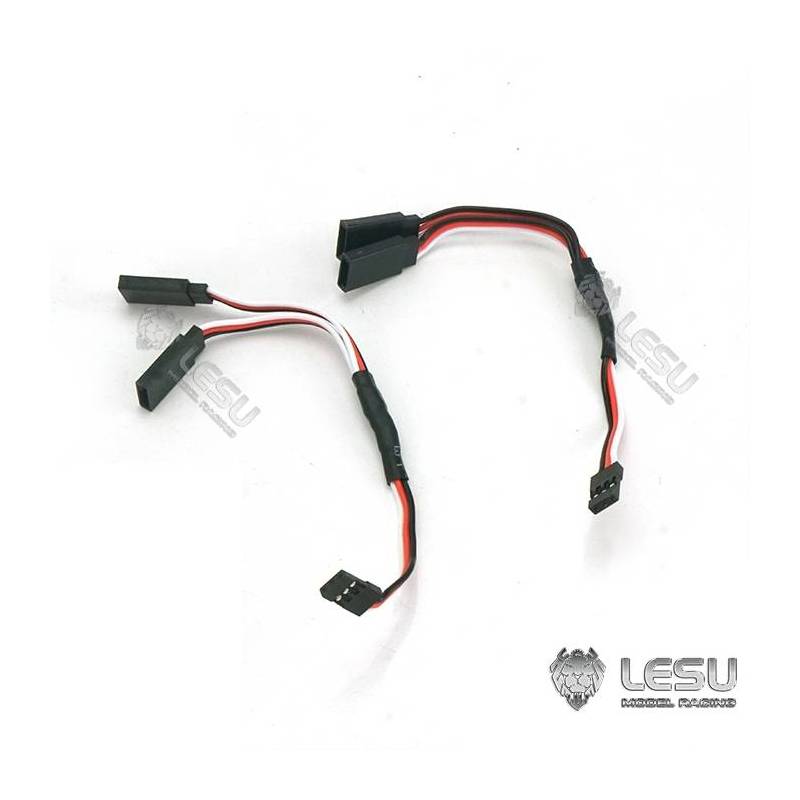

• 2 Y servo leads

Operation :

• A quick push on the switch triggers a brief high beam flash
• A long press engages a light state. 3 light states follow one another (parking lights, low beam, high beam) before the cycle is reset and all lights are switched off
• A maintained command activates the warnings. These will extinguish when the switch is returned to its initial position

Functions offered by the :

• Parking lights
• Low beam
• High beam
• Headlight flashers
• Right/left turn signals
• Warnings
• Stop lights
• Reversing lights
• Reversing beep

With this module, connected LEDs require no resistors. All Lesu accessories can be connected directly.
