1 White navigation light 360° Ø10x15mm with mast and led 3V to 14V
Aero-Naut 566422

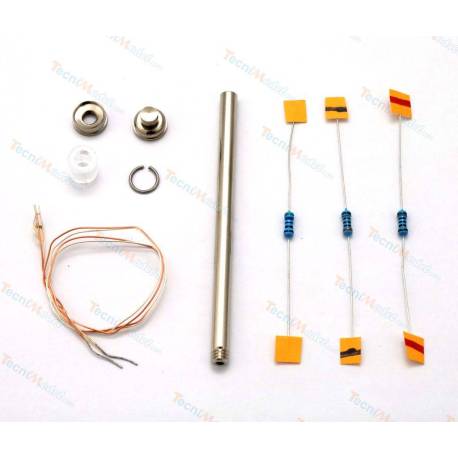

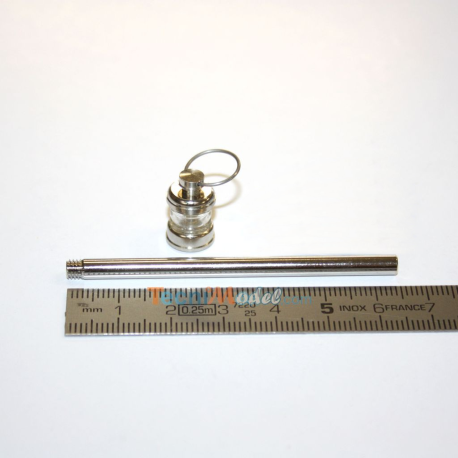

Nickel-plated brass lantern with white led that can be powered from 3V to 14V with the appropriate resistor (resistor supplied).
Features:
- Material: Nickel-plated brass
- Diameter: Ø10mm
- Lantern height: 15mm
- Pole height (nickel-plated brass): 65mm

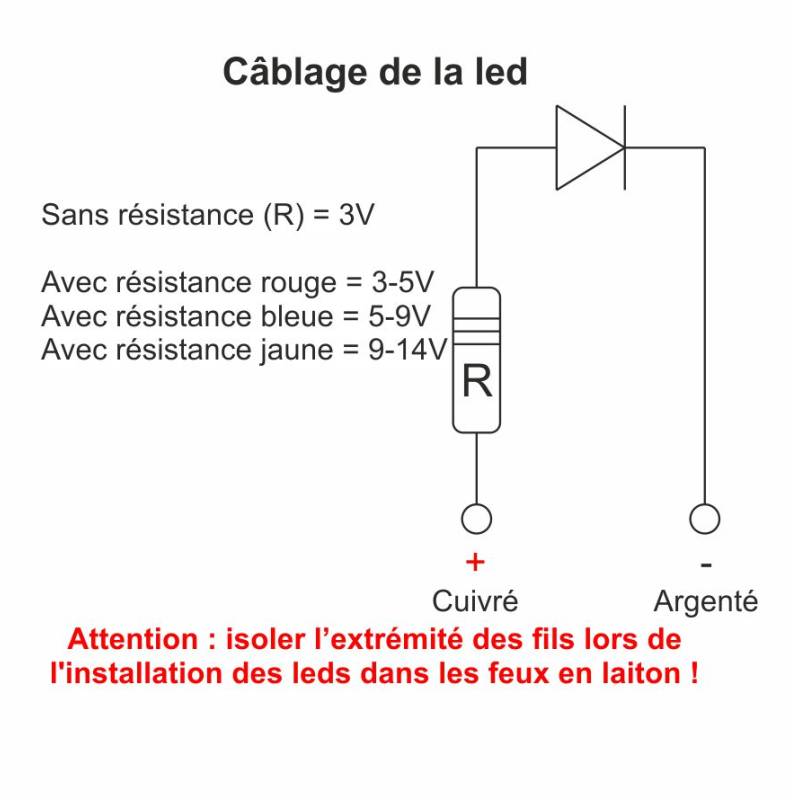

- Voltage 3V: connect without resistor
- Voltage from 3.5 to 5V: use red resistor
- Voltage from 5 to 9V: use blue resistor
- Voltage from 9 to 14V: use yellow resistor
Caution: insulate the ends of varnished wires when installing LEDs to avoid short-circuits.
| Voltage (V) | 3V to 14V |
|---|
