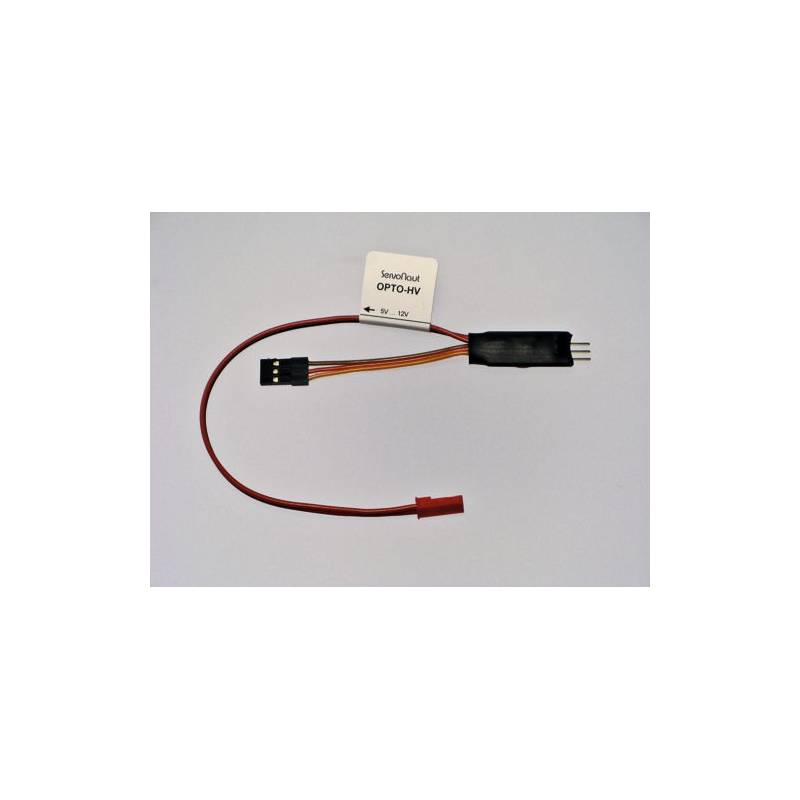

Servonaut OPTO-HV for connecting HV servos

Servonaut OPTO-HV

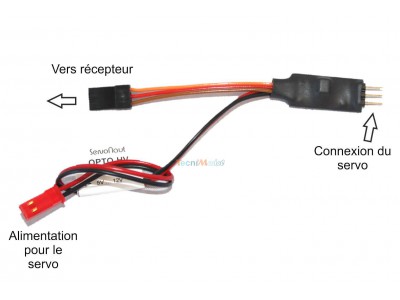

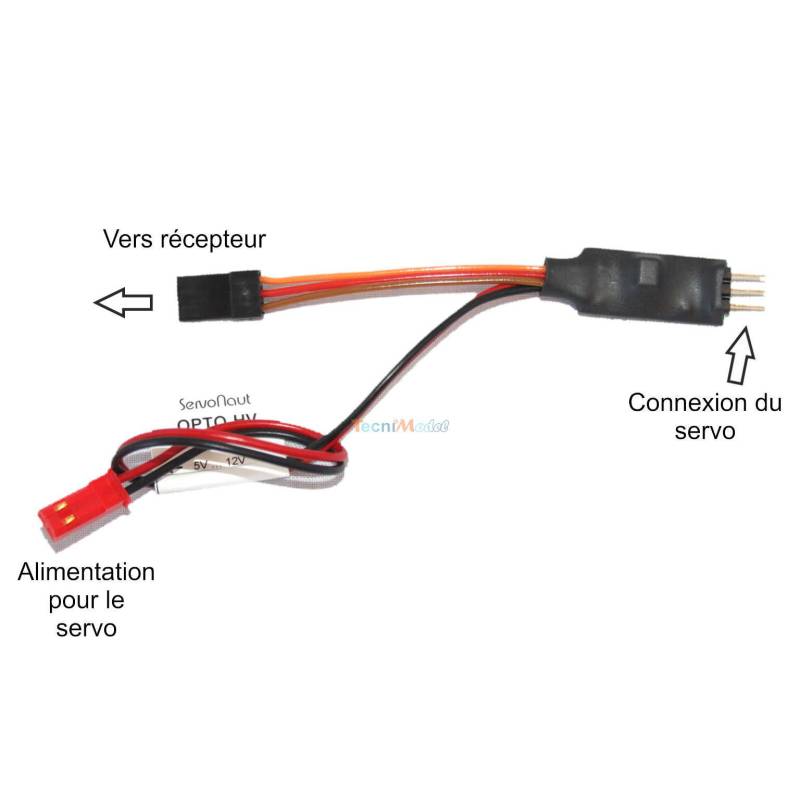

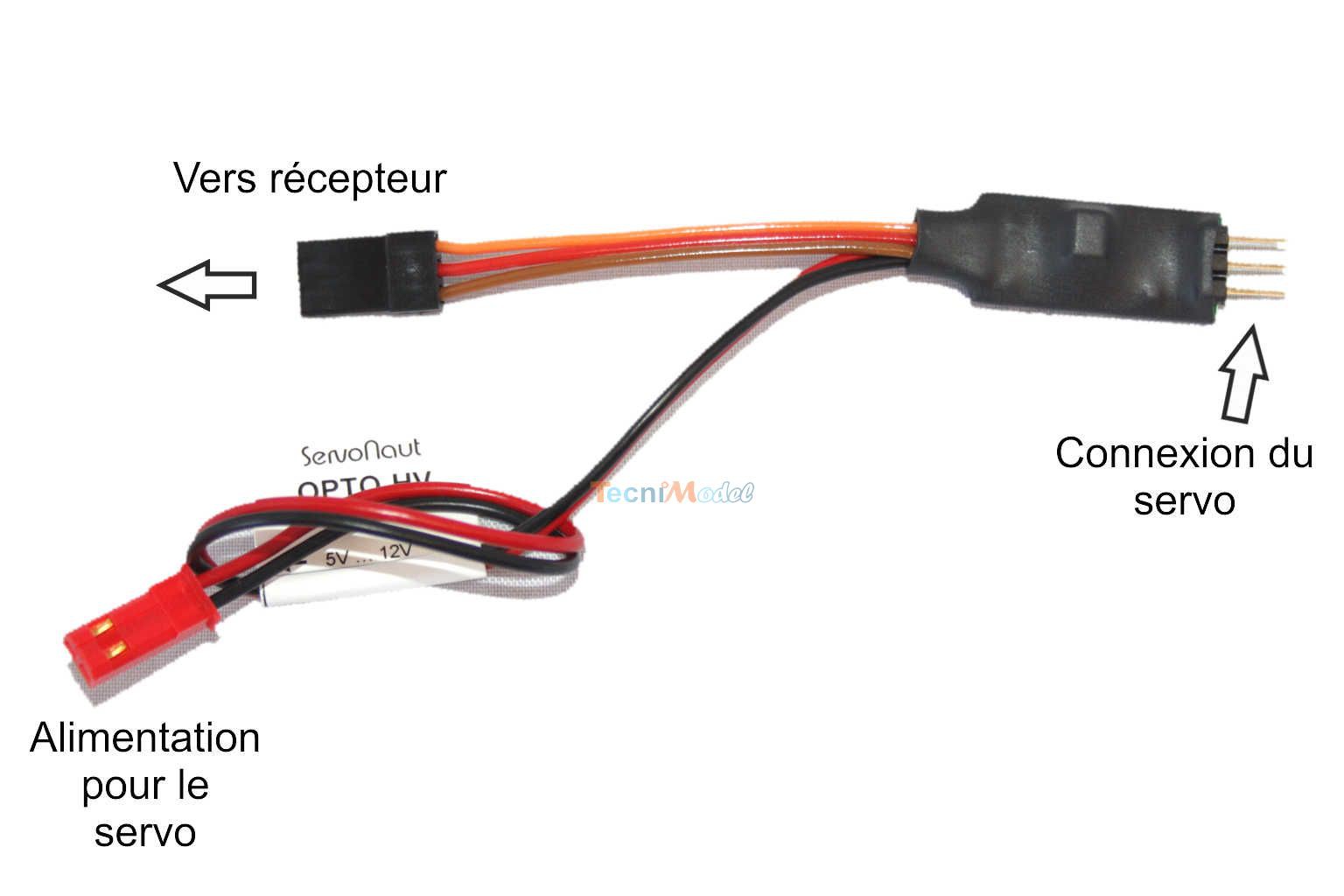

This module enables you to supply an HV (High Voltage) servo with a voltage higher than 6v, without the risk of burning the receiver and other servos not designed to use a voltage higher than 6v. It ensures perfect separation between the receiver power supply and the HV servo power supply connected to it. It also prevents a servo with excessive power consumption from damaging the receiver, by supplying power directly to the servo without passing through the receiver.

It separates the servo power supply from the receiver power supply, avoiding interference.

Please note: this system is not a BEC; the supply voltage supplied to the servo will be the voltage of the battery to which the BEC socket is connected.

Specifications:

• Dimensions: 35x12x8mm
• UNI servo plug Graupner/JR male
• Spout power supply plug, male
