PS4b8t Module Lights with Fast Turn Signals and Temporary Outputs

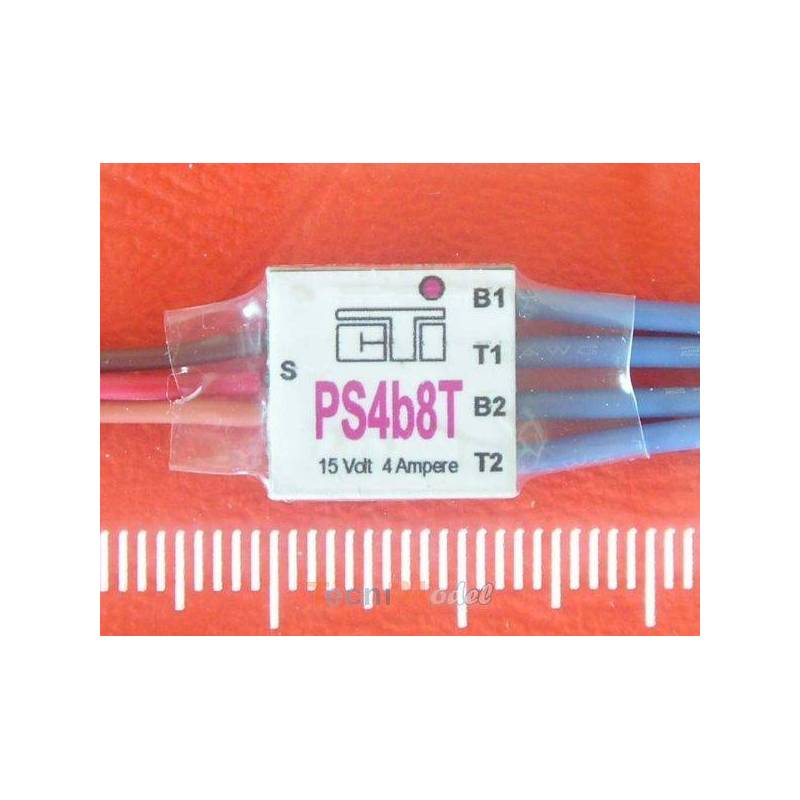

PS4b8T switching CTI module

(with fast turn signals and temporary exits)

Switching module for 4 on/off lighting functions, 2 of which function as turn signals
and the other two outings being temporary.

The flashing output flashes 8 times quickly and then stops.

Max intensity per output: 4A

Operating voltage: 4.8v - 16v

The four outputs are ordered as follows:

Sleeve briefly on the left: blinking B1 exit = on / off
Handle briefly on the right: blinking B2 exit = on / off
Sleeve held on the left: exit T1 = on, as long as the order is maintained
Handle held on the right: exit T2 = on, as long as the order is maintained
(Briefly = less than 1 second)

You can also put on both turn signals at the same time and therefore also get a danger warning ("Warning").
In the transmitter, no change is necessary!
