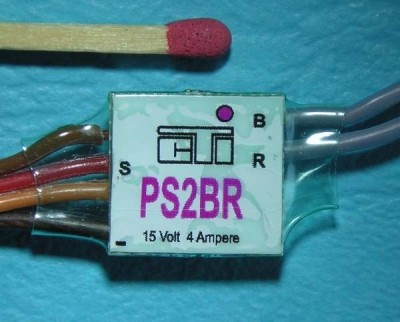

PS2BR switching CTI module (stop lamps / reversing lamps)

Switching module for stop lamps and reversing lamp depending on the receiving signal.
Two negative trigger outputs for a maximum of 4 amps.

The PS2BR module is connected in parallel to the drive, at the receiver. (Mounting requires a Y-cable)

When starting the reception, the module memorizes the position of the throttle handle as a neutral position.
When stopped, the stop lamps are activated for 8 seconds.
If the throttle handle is facing forward or rearward, the stop lamps shall be switched off. If the control column returns to neutral, the stop lamps are turned on again.
When the throttle handle is brought backwards, the reversing lights illuminate.

Notice in French.

Maximum voltage: 20 V

Maximum intensity: 4 A
