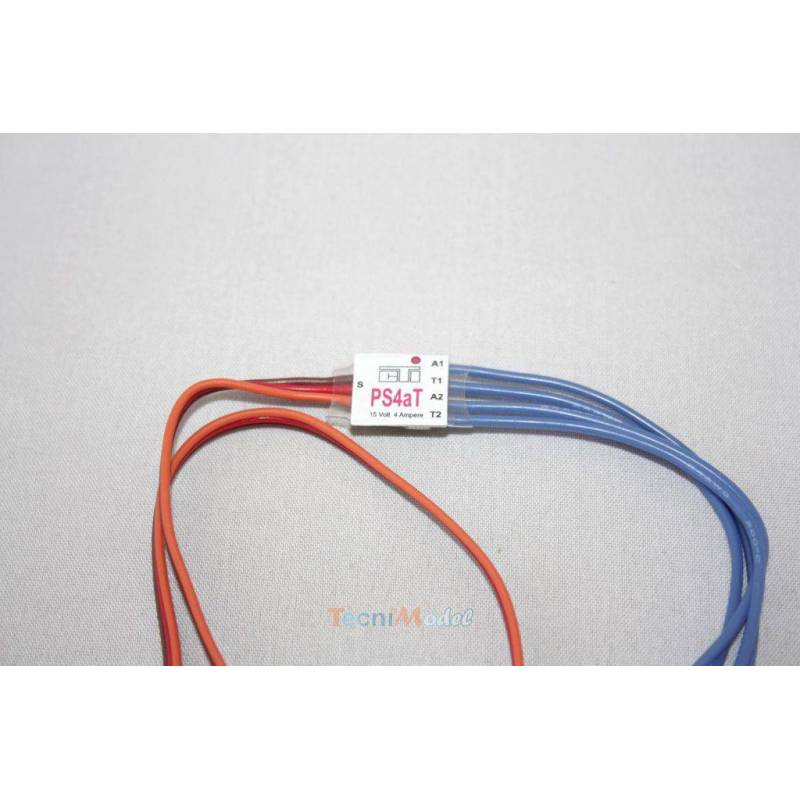

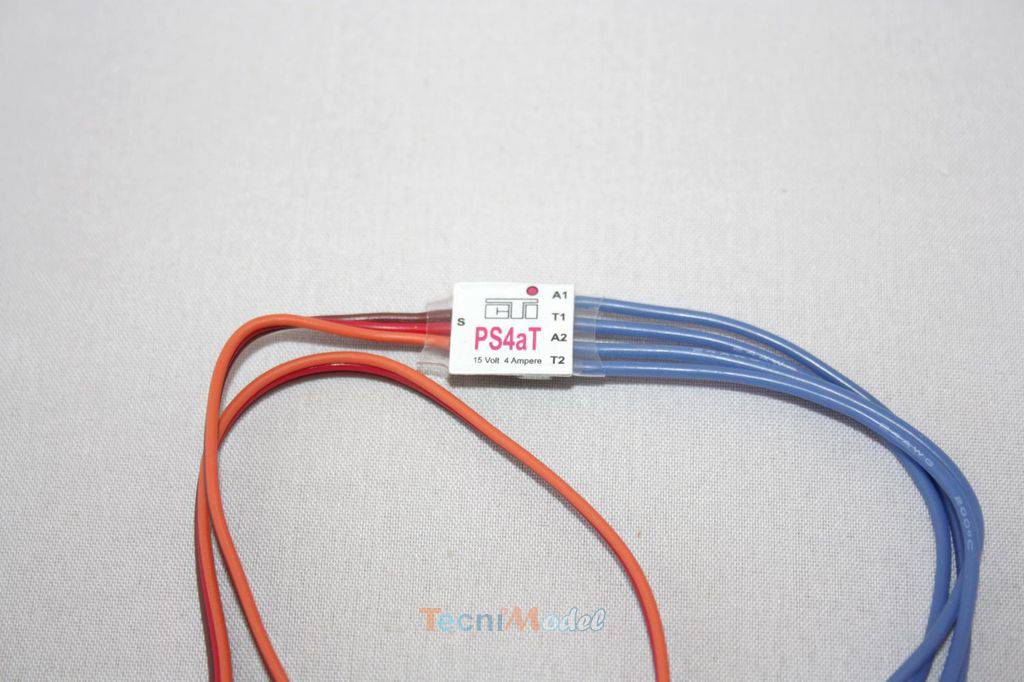

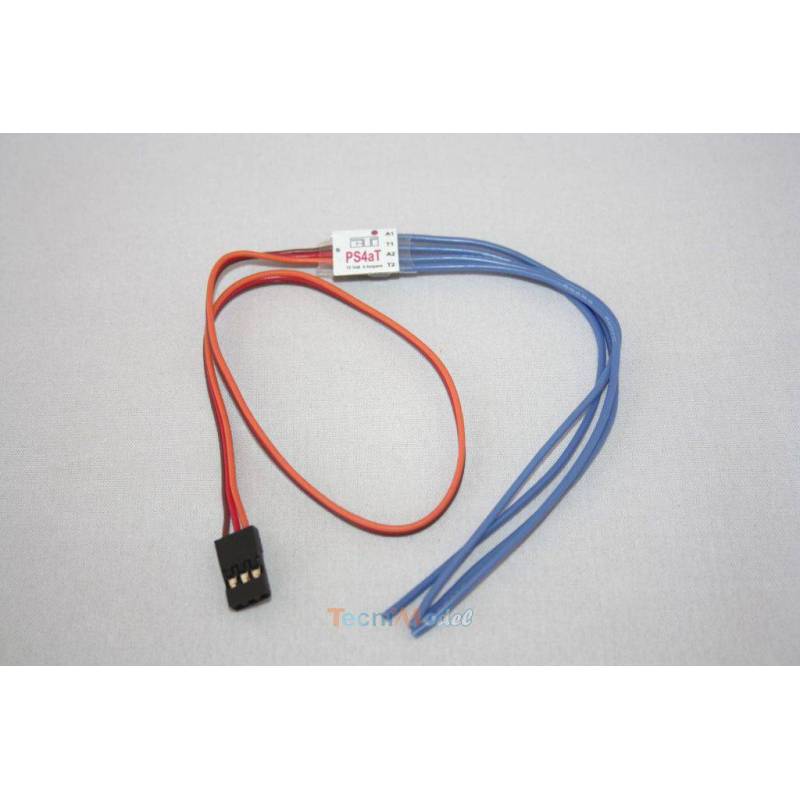

Module CTI PS4aT

Switching module for 4 on / off lighting functions including 2 temporary outputs.

This module can be controlled either with a radio handle or with a 3-position switch. Each of the outputs is independent of the others.

Max intensity per output: 4A

Operating voltage: 4.8v - 16v

The four outputs are controlled as follows (example with a radio handle):

Handle briefly on the left: exit A1 = on / off
Sleeve held on the left: exit T1 = on, as long as the order is maintained
Handle briefly on the right: exit A2 = on / off
Handle held on the right: exit T2 = on, as long as the order is maintained
(Briefly = less than 1 second)

In the transmitter, no changes are necessary!
