PS4o switching CTI module
PS4o switching CTI module
Reference : ACCTIPS4O
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AD11

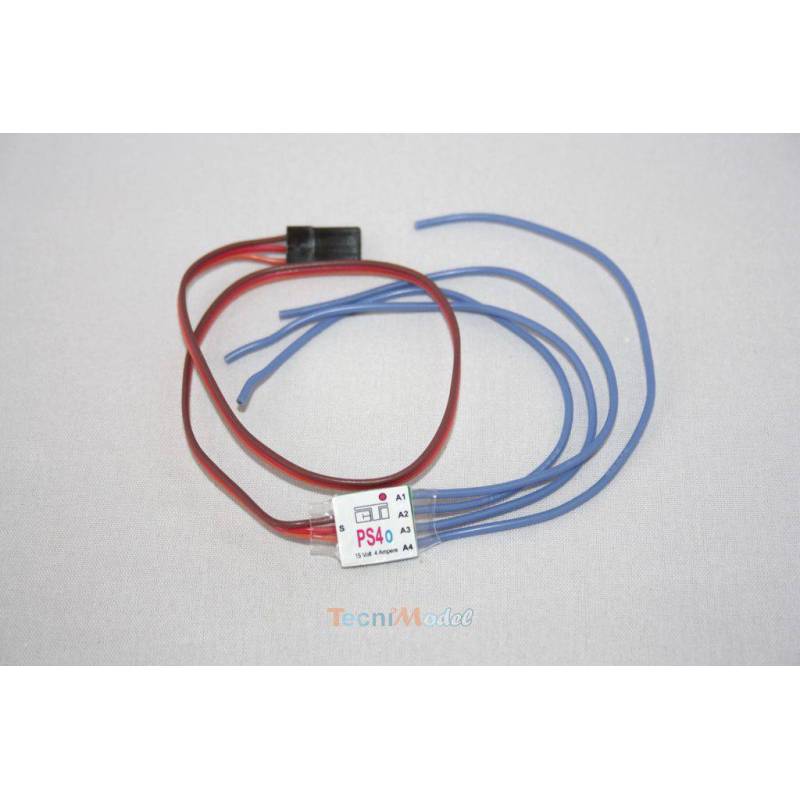

PS4o switching CTI module
Module for use with a two-position radio controller switch
Switching module for 4 on / off lighting functions controlled successively by pulses on half a channel.
Max intensity per output: 4A
Operating voltage: 4.8v - 16v
The four outputs are ordered as follows:
Channel once on the left: exit A1 = on / off
Handle twice on the left: exit A2 = on / off
Handle three times on the left: exit A3 = on / off
Channel four times on the left: exit A4 = on / off
Thus, by using a PS4o module and a PS4u module plugged into the same channel by a Y cord, you get 8 functions from a single port.
In the transmitter, no change is necessary!
Notice in French
Example_PS4_connectionCTI.pdf
Example of module connection diagrams CTI PS4
