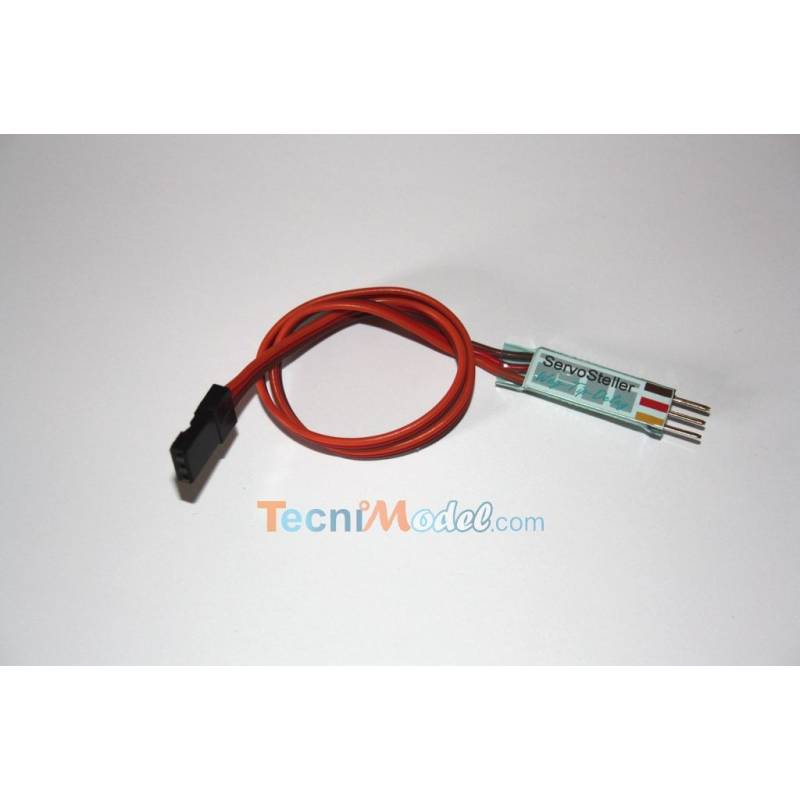

servo control module

With 2 potentiometers of travel and speed settings.

This module allows you to control a servo in a preset motion either using a radio control channel or using a simple contactor.

Using the radio controller:

This module is interspersed between the receiver and the servo.
By pushing the handle to one side, the servo begins are moving, at the speed set on the module (using one of the potentiometers) and up to the predefined position (using the other potentiometer).
Releasing the handle stops the movement of the servo.
Pushing the control column in the other direction causes the servo to move to the other limit position, at the same speed.

This function allows you to control movements such as turret rotation, lifting and lowering ramps, etc...

With the help of a contact:

Instead of connecting the module to a receiver channel, the module can be controlled via a simple switch or by a module type CTI PS4 or a Multi module (negative control module)
When the contact is active, the servo moves to its preset limit position, has the preset speed.
When the ignition is no longer active, the servo returns to its origin at pre-set speed.


Dimensions (without cable)
23 mm x 8mm x 4 mm
Cable length approximately 250 mm.

Power supply: 4.8v to 6v
