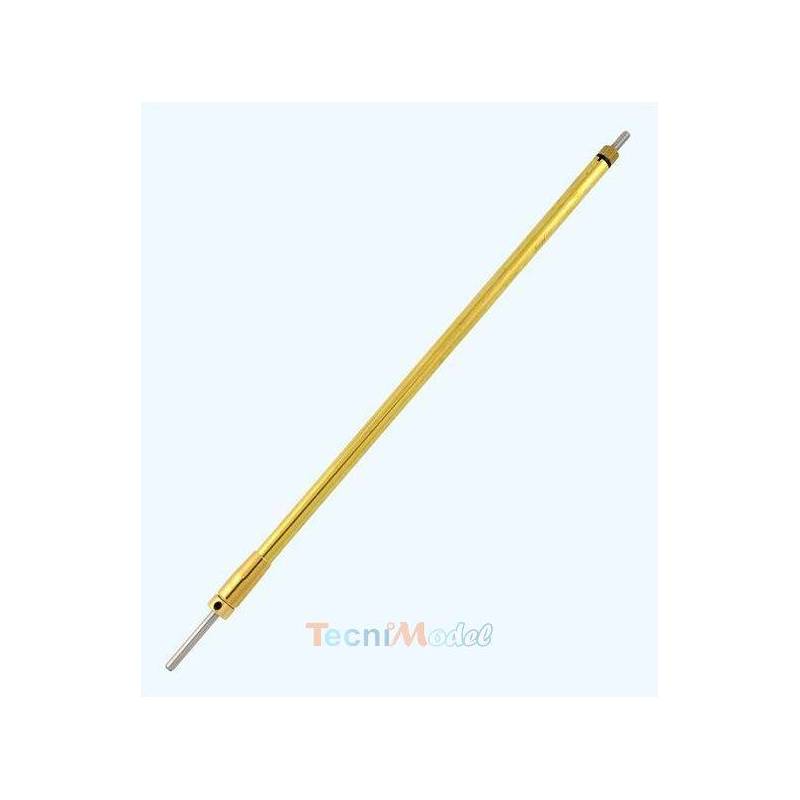

Propeller shaft Raboesch Ø4mm sealed and maintenance-free, with lip seal.
Propeller shaft Raboesch Ø4mm sealed and maintenance-free, with lip seal.
Reference : PBRA30126
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM11
Propeller shaft Raboesch Ø4mm sealed and maintenance-free, with lip seal.
KRICK RB301-26
This high-quality shaft system is precision-manufactured by Raboesch.
The overall length is given because the stainless steel shaft is fitted with an M4 thread ex works.
The ship's shaft is supported by a self-lubricating bronze bearing on the motor side and by a Delrin ring on the propeller side. We have sealed the maintenance-free shaft system with watertight G-seals, also available as spare parts.
The rear shaft system is supplied complete with adjusting ring, washer, special nut and assembly instructions.
- Maximum permissible speed 10000 rpm.

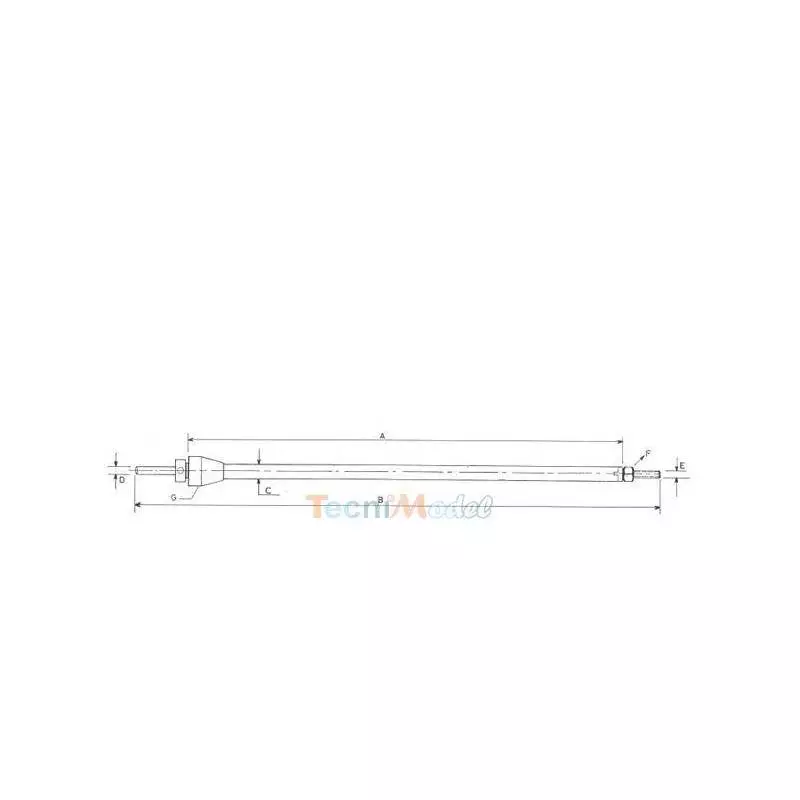

- Technical specifications
- Stern tube length (A) 254 mm
- Shaft length (B) 290 mm
- Stern tube diameter (C) 6 mm
- Shaft diameter (D) 4 mm
- Ship's propeller thread (E) M4x16 mm
- Largest diameter (G) 10.5 mm
- Stern tube material brass
- Stainless steel shaft material
| Shaft diameter | Ø4mm |
|---|---|
| Shaft length (mm) | 290 |
| Stern tube diameter | Ø6mm |
| Stern tube length (mm) | 254 |
| Thread | M4 |
