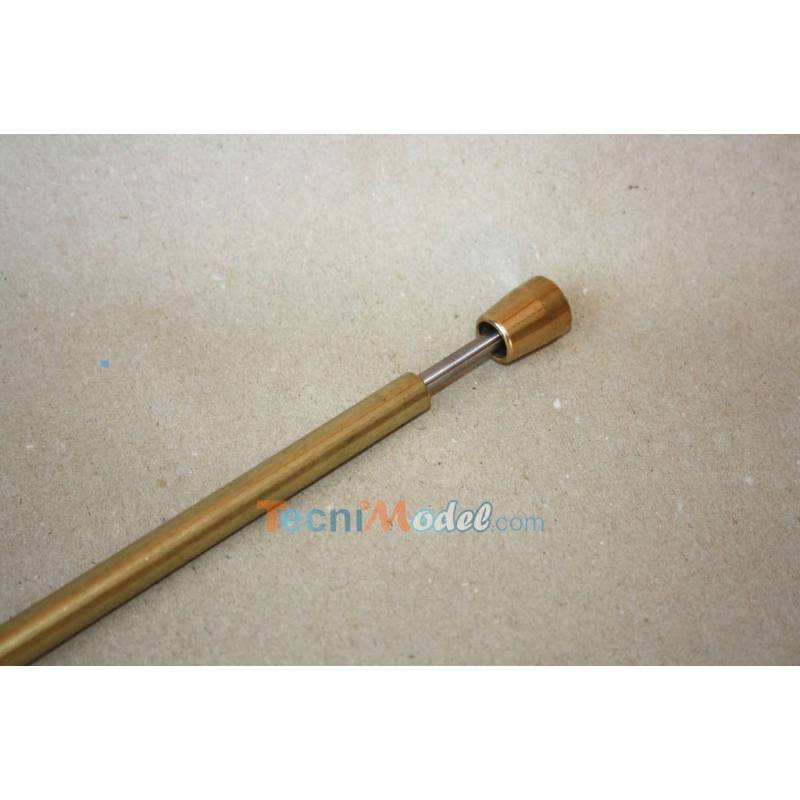

Propeller shaft Raboesch Ø5mm sealed and maintenance-free, with lip seal.
Propeller shaft Raboesch Ø5mm sealed and maintenance-free, with lip seal.
Reference : PBRA30110
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM11
Maintenance-free, waterproof 5mm propeller shaft
Ref Raboesch: 230110
Ball bearing and lip seal at motor end of tube.
Delrin ring at propeller end of tube.
This propeller shaft can be cut to any desired size: the bearing cage is not attached to the tube, so the tube length can be adjusted.
Carefully cut and deburr (to avoid damaging the seal during assembly), then glue the cage to the tube.
We recommend UHU Plus "Endfest" glue for a strong bond.
Specifications:
- 5mm M5 length 450mm
- Tube Ø10mm length 395mm
- Bearing cage diameter: Ø15.8 mm
Max. speed in water (do not run dry quickly) = 15,000rpm
| Shaft diameter | Ø5mm |
|---|---|
| Shaft length (mm) | 450 |
| Stern tube diameter | Ø10mm |
| Stern tube length (mm) | 395 |
| On bearing(s) | Yes |
| Recoupable | Yes |
| Thread | M5 |
