Motorized ramps for Scale-Parts trailers

Motorized ramps for Scale-Parts trailers

Scale-Parts SP-03-04-050

This system is designed for all Scale-Parts trailers except the KRSP0301043 trailer. For the latter, use system ref: PCSP0304051

With this motorization system, the trailer's ramps can be operated remotely.

This system controls the ramps by means of 2 electric cylinders. The cylinders feature a protection system that stops them at the end of their stroke or when they encounter an obstacle.

Designed for 5V to 7.4V power supply. If a higher voltage is to be used (12V for example), use a voltage regulator.

Scope of delivery:

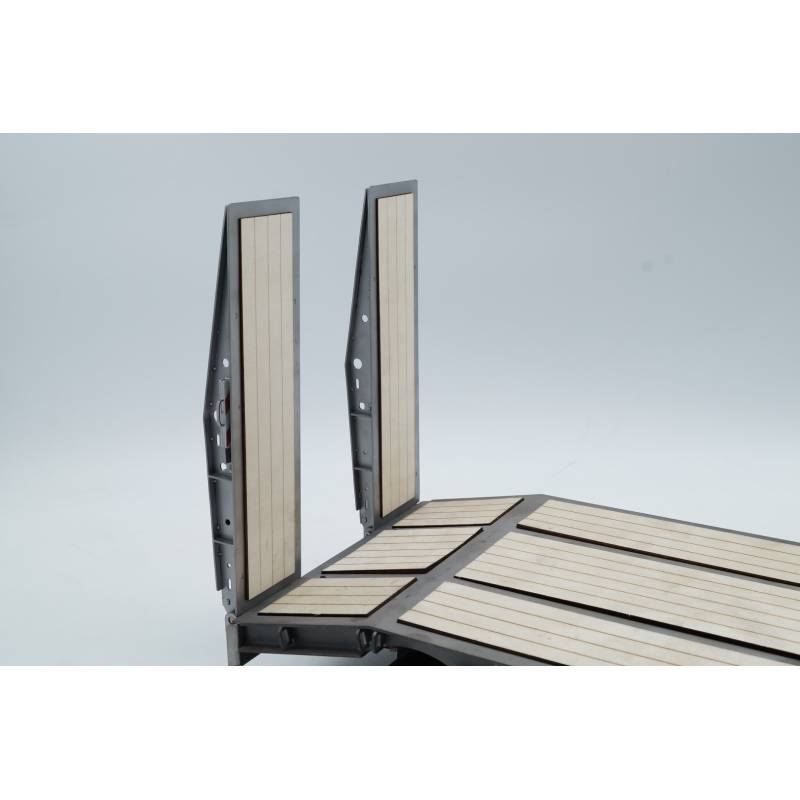

• New stainless steel ramps set with hinges and wooden floor
• Electric cylinders with protection systems
• New lights designed for Ø3mm LEDs

Equipment required for operation (see "accessories" below) :

• Mini ESC for motor control (suggestion: THOR14 Boost)
• 7.2V-7.4V battery

Compatible with the following trailers:

• SP-03-01-019
• SP-03-01-035
• SP-03-01-036
• SP-03-01-039
• SP-03-01-040
• SP-03-01-041
• SP-03-01-042
