ProTronik R4X 4 channels receiver

ProTronik R4X 4 channels receiver

Ref A2Pro 70204

- 4-channel receiver

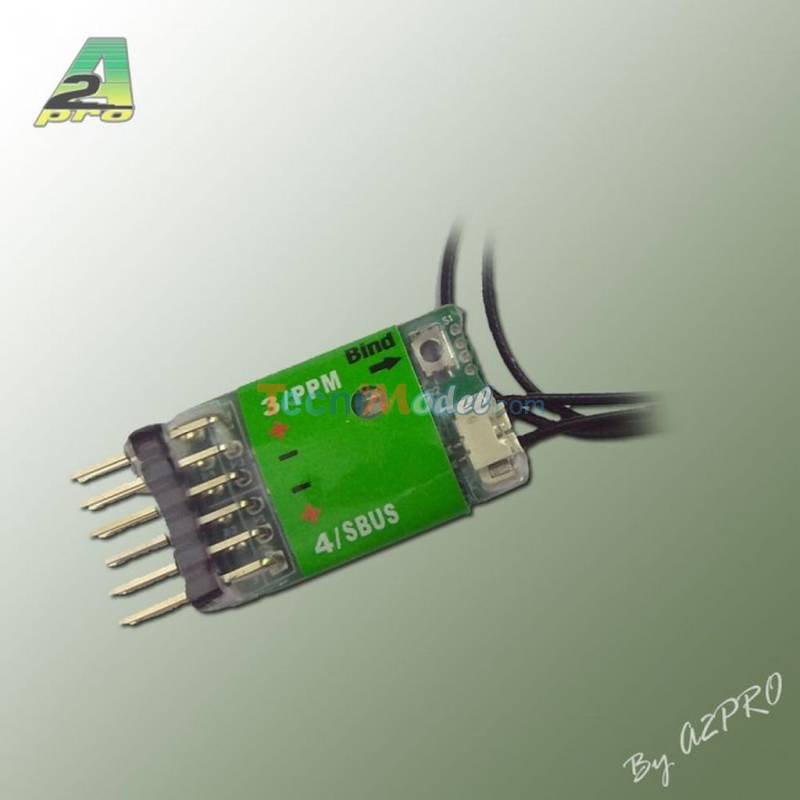

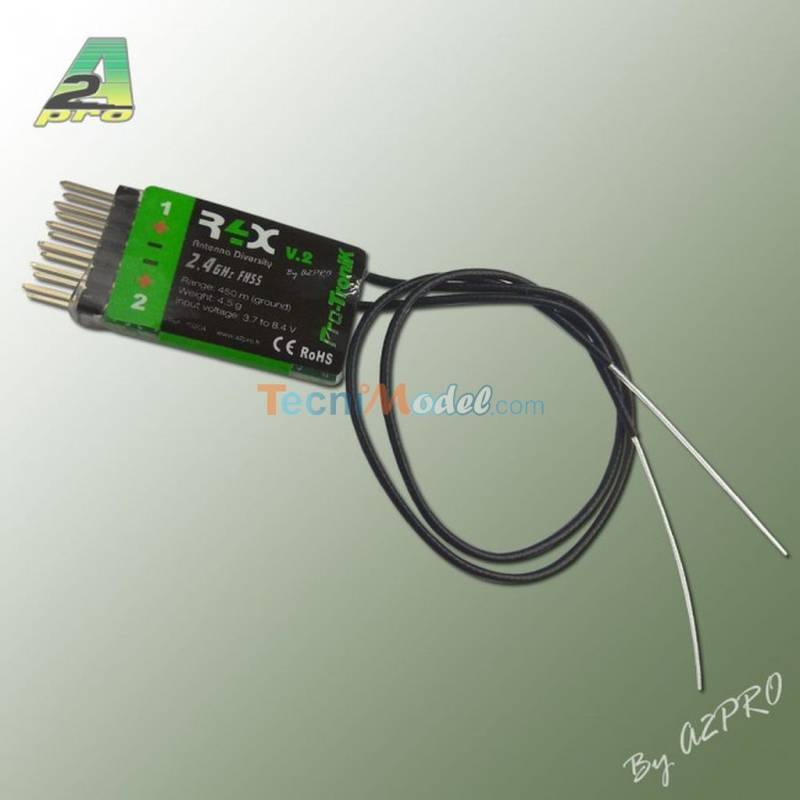

- Dimensions : 24x15x5.5mm
- Weight: 2.2g
- 2.4GHz FHSS not compatible with other brands. Extremely reliable and secure.
- Built-in "bind" button, no jumper needed to pair receiver and transmitter.
- Supply voltage 3.7~8.4V
- Range: 450m (ground)
- Special range test function avoids having to walk miles away from the transmitter.
- Very low power consumption.
- Built-in fail-safe.

Pairing procedure with the transmitter

The pairing procedure with the transmitter is very simple, as follows:

Switch to transmitter pairing mode:

- position the throttle stick at idle and switch on the transmitter
- press the ENTER key for 3 seconds to enter the FUNCTIONS menu
- press the ENTER key 5 times to select the "BIND" function
- press the UP key (or the DOWN key)
- the display shows a dotted line scrolling from left to right, indicating that the transmitter is now in "pairing" mode.
It transmits its identification information to the receiver.
The transmitter will only exit this mode when it is switched off.

To switch to receiver pairing mode :

- press the push-button located on the left-hand side of the receiver (antenna side)
- hold down the push-button and power up the receiver (observe power polarity)
- the red LED lights up solid red
- immediately release the push-button
- the red LED starts flashing rapidly, indicating that it has received the transmitter's identification code. It extinguishes after a short moment, indicating that the transmitter ID code has been successfully stored.

Your transmitter and receiver are now paired, and will be able to establish a secure link when
they are next switched on. The procedure should be completed as follows:
- disconnect the receiver's battery
- switch off the transmitter
- switch the transmitter on again, then the receiver, and check that operation is nominal
