Seven Marine 557 outboard motor - Aeronaut 7005/07

Seven Marine 557 outboard motor

Aeronaut 7005/07

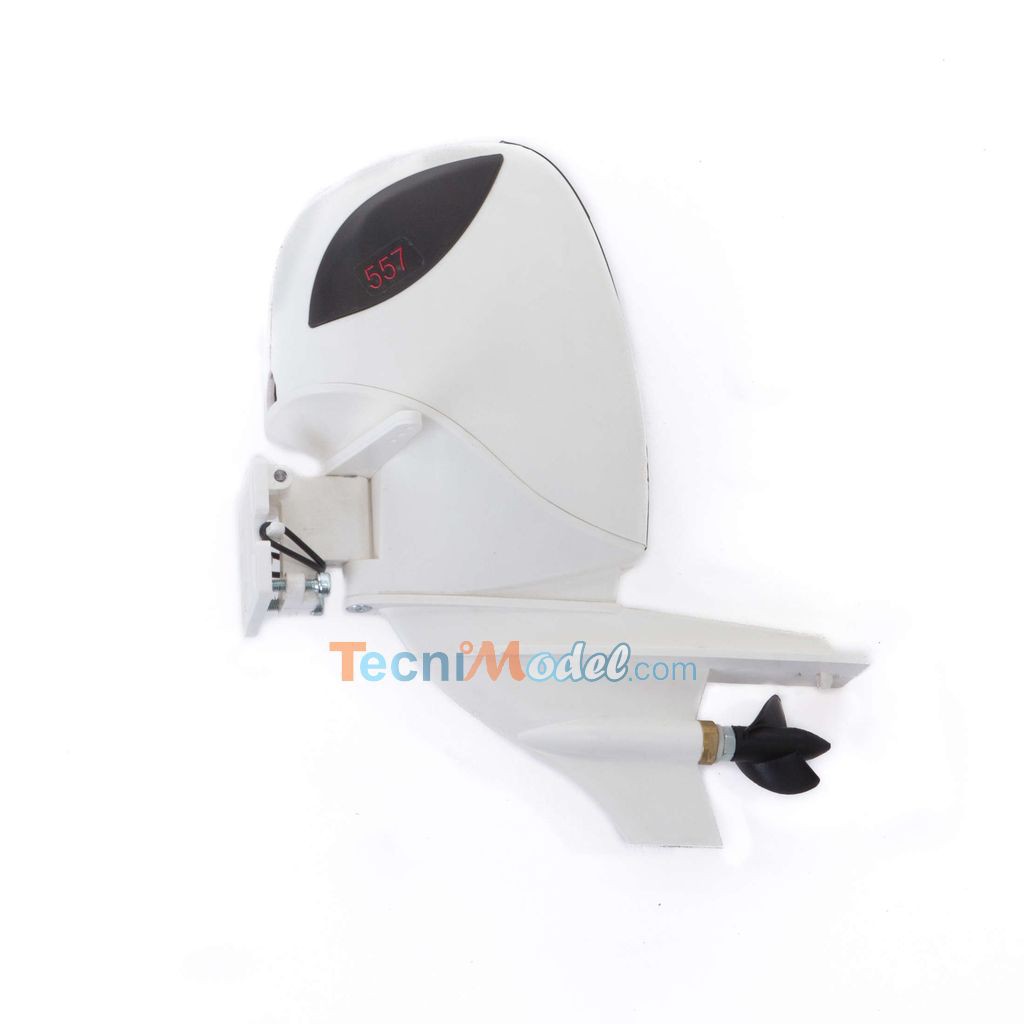

A reproduction of the "Seven Marine 557", a modern outboard motor, made in plastic for electric motors up to approx. 700 watts. Driven by a flexible Teflon shaft. The housing is made of white ABS and can be painted as required. Assembly is by 4 screws to the boat's transom and can be adjusted in height by approx. 7mm. The angle of attack can be freely adjusted.

Supplied in white, without propeller or motor, but with two couplings for Ø3.17mm and Ø4mm motor shafts.

For electric motors up to 700W and max. speed of 26000rpm.

Supplied with couplings for Ø3.17mm and Ø4mm motor shafts.

Due to the flexible shaft transmission, the direction of propeller rotation in forward gear must be counter-clockwise. DO NOT run the motor in the opposite direction at high speed, as this may damage the shaft.

Dimensions :

• Overall height: 157mm
• Width: 54mm
• Length: 140mm
• Max. propeller diameter: Ø32mm, fastened with M4 thread
• Motor mounting screw center distance: 19mm

Supplied without motor and propeller

Important Note!

The shaft must be greased before startup! Do not operate the motor dry.

For operation, the motor must always be submerged in water, or the flexible shaft must be lubricated at the sintered bearing mounting point before operation. Operating the motor dry can damage the bearing.
