Lili RC Sailboat Kit by Aero-Naut

Lili RC Sailboat Kit by Aero-Naut

Aero-Naut 300300

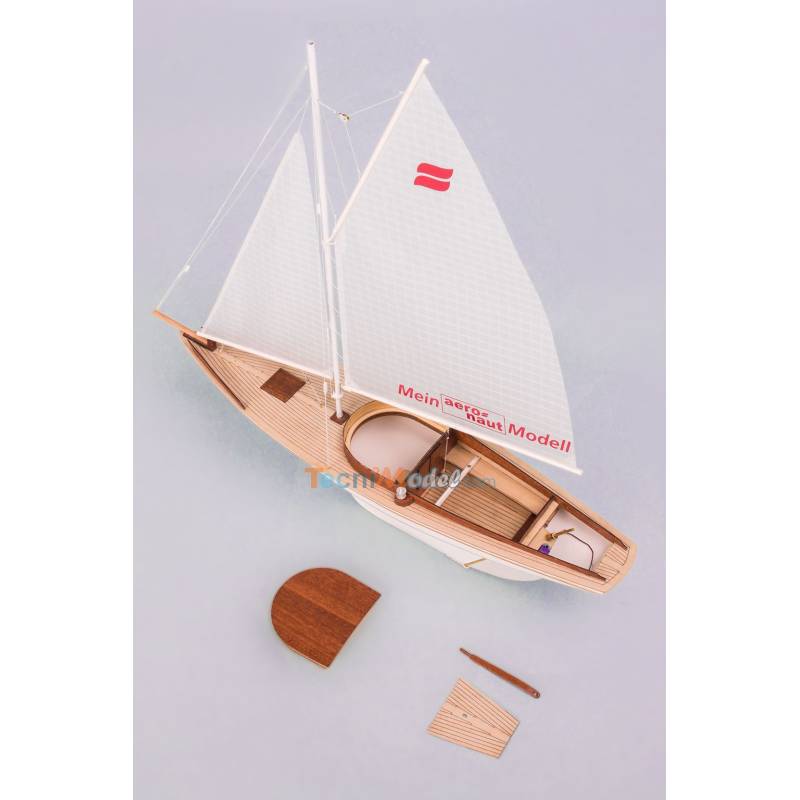

Description of the model:

The sailboat Lili is designed with a thermoformed hull and laser-cut wooden parts (mahogany, birch). This kit is intended for beginners in the class of sailboats.

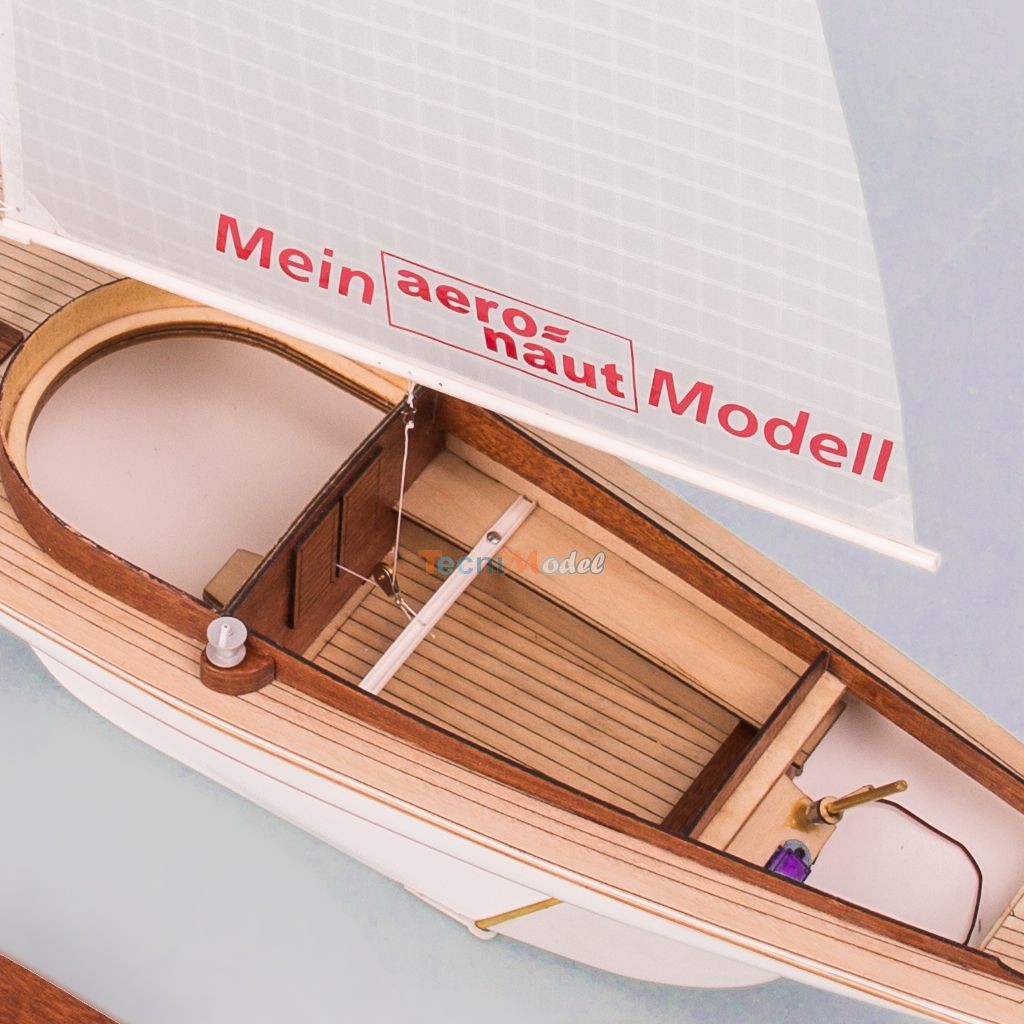

Thanks to the precisely adjusted parts, the assembly will be very simple. The entire cockpit is assembled into one piece, then will be mounted in the hull and glued. The supports for the mast are already provided on the deck. The joints of the deck slats are laser engraved. The boat includes many details and fittings like pulleys, winch, deflection pulleys. The cradle is also included in the kit.

The sails are also laser-cut and can be driven using a servo. The necessary lest is also included in the kit.

Thanks to the Aero-naut manual in 3D style, unique and well known, the assembly of this model will be a special and satisfying experience. (French version coming soon)

Contents of the kit:

Thermoformed plastic hull, laser cut birch and mahogany parts, ABS and Vivak parts, set of Photo-etched parts, fitting assembly etc... as well as a detailed construction manual in image.

Notice in French to download on this page.

Characteristics:

• Length: 566mm
• Width: 138mm
• Displacement: 850g
• Total sail area: 9,8 dm²

Needed hardware (not included, see "accessories" on this page):

• 2-way radio controller with receiver.
• Mini-servo for the rudder (4 kg.cm minimum, depending on the model of servo, an adjustment of the location may be necessary).
• servo of standard dimensions for sails (6 kg.cm minimum).
• Receiving battery 4.8v to 6v
• Bouche-Pore
• Wood glue
• Stabi-Naut Glue or similar (wood/metal and wood/ABS collage)
