New Micro Magic 2020 RC Sailboat Assembly Kit Version
New Micro Magic 2020 RC Sailboat Assembly Kit version. Small 535mm-long competition sailboat.
Reference : KBHCB2550K
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Assembly Kit of the New Micro Magic 2020 RC Sailboat
This is the Assembly kit version of this RC Sailboat.
Reissue of the famous, high-performance Micro Magic radio-controlled sailboat.
RC model of a competition sailboat, which is also ideal for amateur sailors.
The model complies with the rules of the international Micro Magic class.
Requires minimum 2-channel radio control and 2 servos.

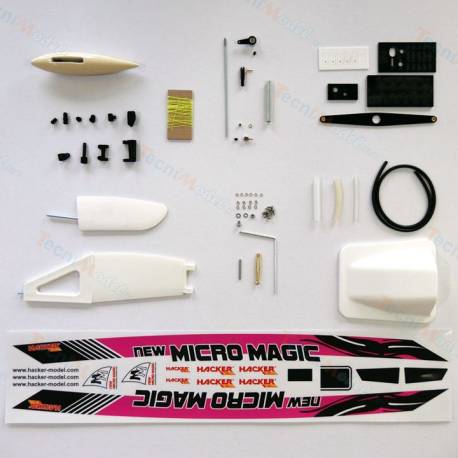

Scope of delivery:

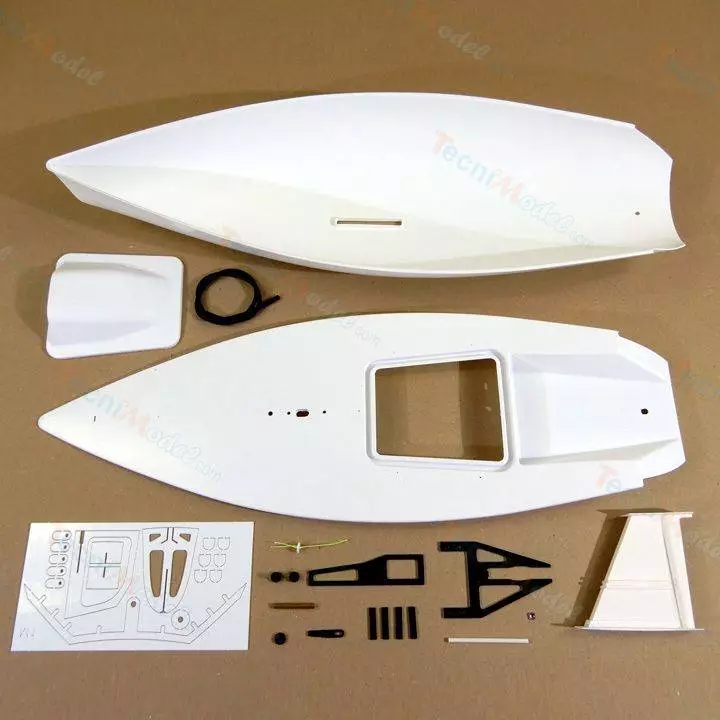

- Hull, deck and canopy are made of vacuum-formed and CNC-milled ABS

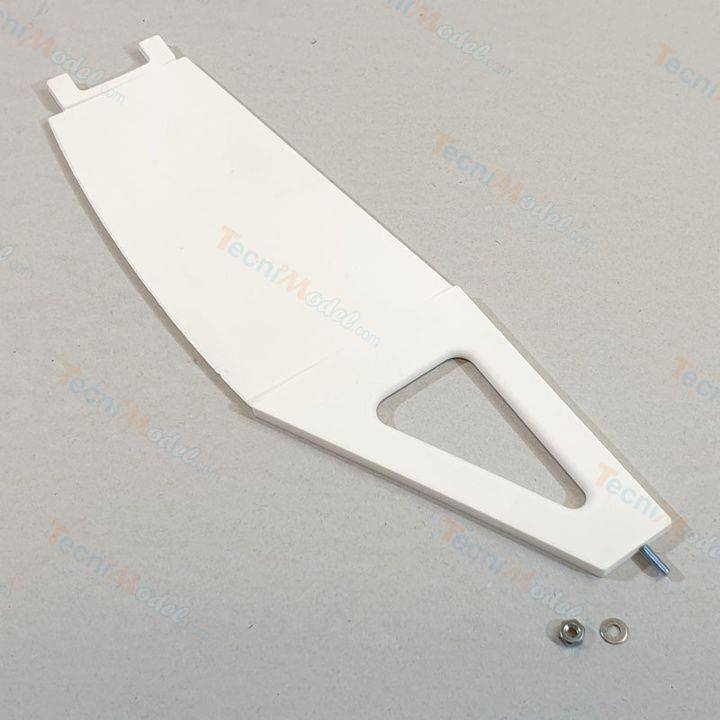

- Keel and rudder in injection-molded, fiberglass-reinforced plastic

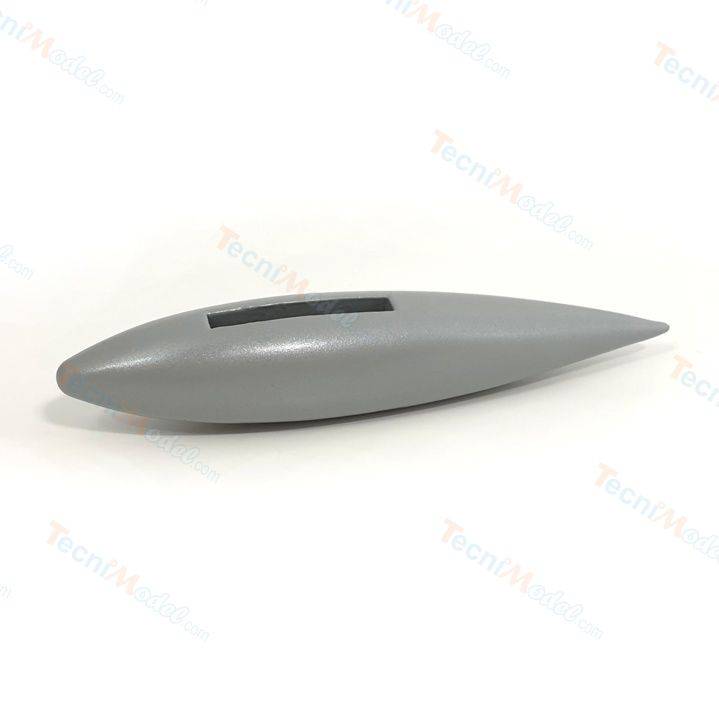

- Keel ballast
- Small laser-cut ber parts for the boat
- 3D Mylar "A" size sails, completely finished

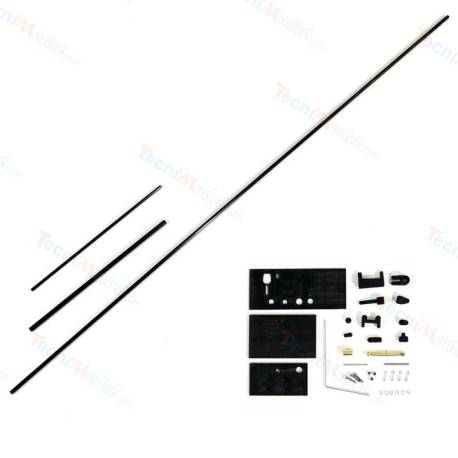

- Carbon fiber tubes for mast and boom
- Rudder connection components
- All small parts required for assembly

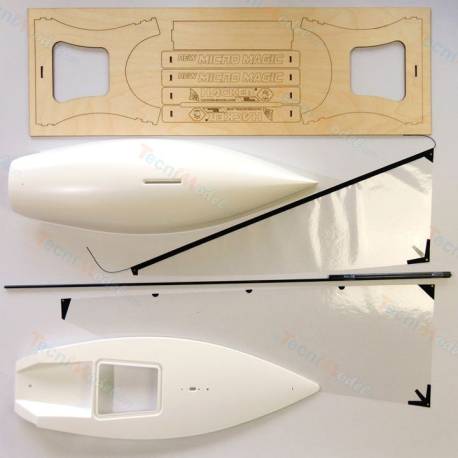

- Stand in lasercut plywood
- Decal sheet
- Multilingual instruction manual
RC functions :
- Sail trim (standard servo size)
- Rudder control (mini servo, approximate dimensions 23x12x25mm)
Technical data :
- Overall length: 535mm
- Width: 177mm
- Overall height: 980mm
- Total weight: approx. 820g
- Sail area: 1450cm2
Needed Hardware not included:
- Minimum 2-channel radio control system
- 4.8v or 6v Receiver battery or battery holder
- Receiver switch
- Standard size servo (minimum torque 6kg.cm ) for sails
- Mini size servo (approximate dimensions 23x12x25mm) for rudder
Recommended accessories:
| Length | 535mm |
|---|---|
| Height | 980mm |
| Width | 177mm |
| Weight | 820g |
| Manufacturer | Hacker |
| Mounting Type | Kit |
| Construction | Hull Plastic |
NewMicroMagic_rev3_TM
Building Instructions New Micro Magic
