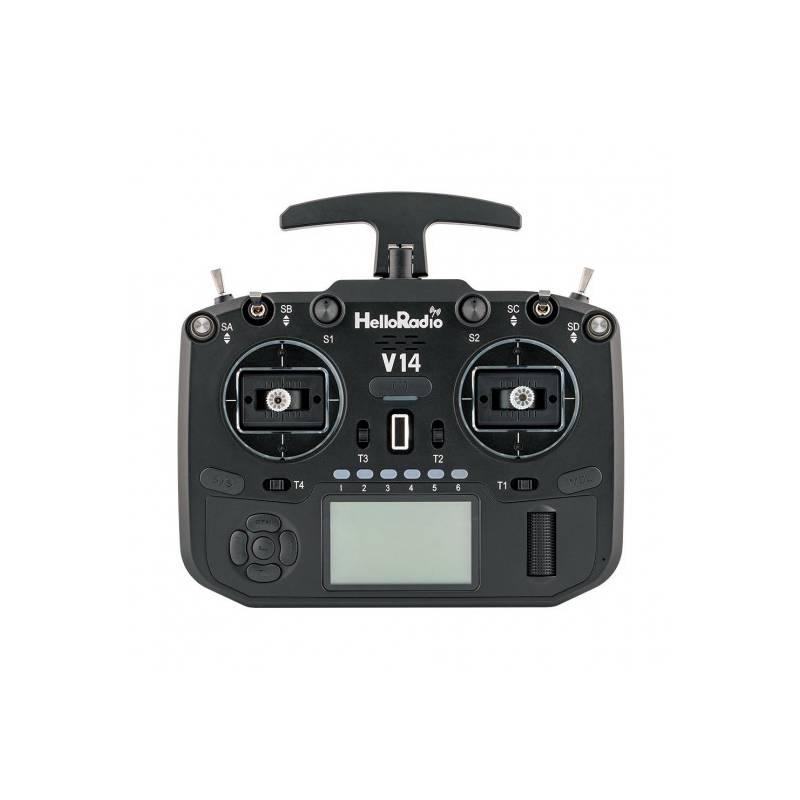

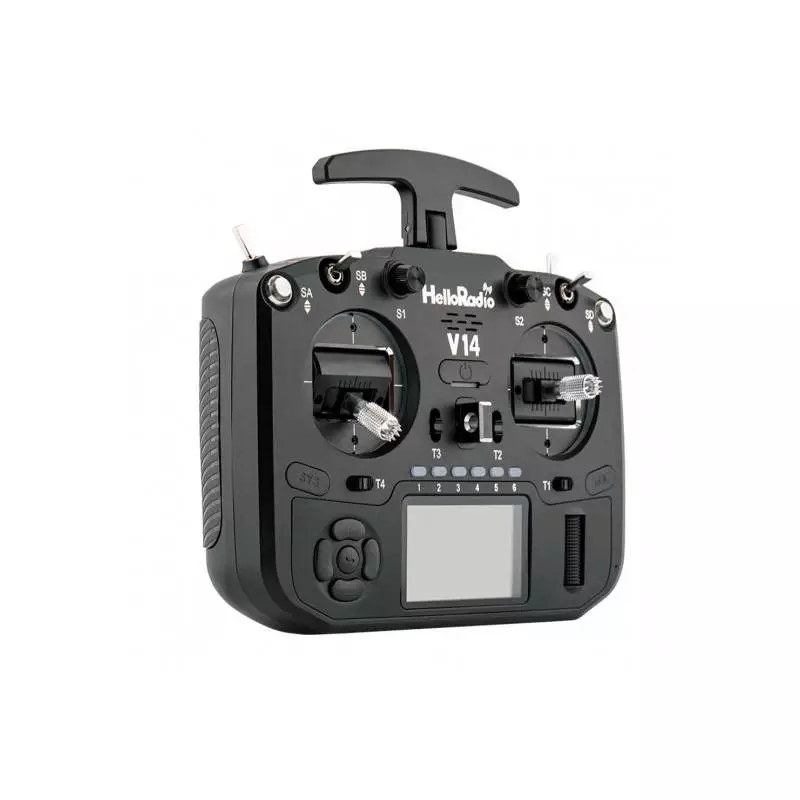

Radio V14 Pro ELRS LBT HelloRadio 16 channels in mode 1

HelloRadio V14 Pro ELRS LBT remote control - 16 channels in mode 1

HelloRadioSky HR1027

HelloRadio V14 PRO remote control - Performance and innovation at an affordable price

The HelloRadio V14 PRO represents a new generation of RC radio controls combining performance, reliability and ease of use. Designed to rival the leading brands on the market, it offers high manufacturing quality and advanced functions, all at a particularly competitive price.

Suitable for both enthusiasts and demanding pilots, they give access to professional-level piloting.

Integrated EdgeTX technology

The V14 PRO comes with EdgeTX open-source firmware for advanced configuration. The EdgeTX environment enables complete model configuration, and is supported by an active community (tutorials, forums, Discord).

2.4 GHz ELRS LBT RF system - performance and responsiveness

The HelloRadio V14 radio control incorporates a latest-generation 2.4GHz ELRS LBT RF transmission system, designed to deliver an ultra-reliable, highly responsive radio link. Thanks to the ExpressLRS protocol, you benefit from ultra-low latency, excellent range and signal stability ideal for demanding applications.

LBT (Listen Before Talk) technology ensures regulatory compliance and intelligent radio spectrum management, for safe, clean operation in busy environments. The result: more precise piloting, immediate response to commands and maximum confidence in flight and navigation.

An ideal choice for pilots looking for performance, safety and modernity in their radio system.

The HELLORADIO V14 2.4 GHz ELRS LBT radio control system can manage up to 16 channels by combining two 8-channel receivers. In this configuration, the receivers are set up via Wi-Fi from a smartphone, which requires a certain level of familiarity with technological tools.

Display and user interface

Menu navigation is simple and intuitive, thanks to seven dedicated buttons and a clickable thumbwheel, providing rapid access to all functions. The backlit LCD display is easy to read. And its brightness can be adjusted to suit your preferences.

Radio menus are available in English and Chinese; additional languages, including French, can be installed by upgrading.

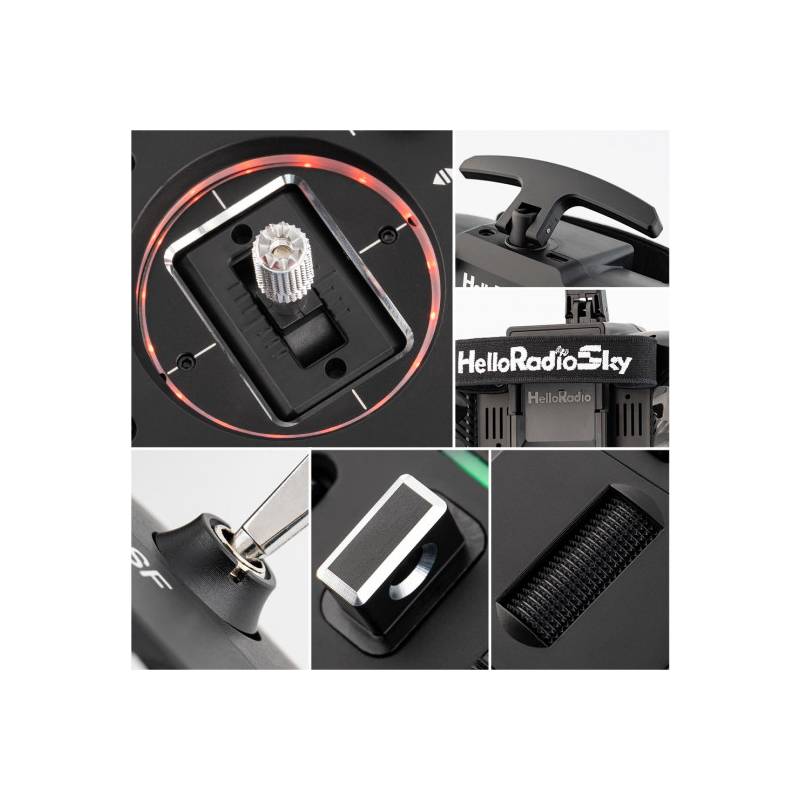

Handle / clever antenna

The V14's folding antenna also acts as an integrated carrying handle. Both ergonomic and elegant, it facilitates movement while guaranteeing optimum radio range.

A neat, functional interface

All controls have been designed for quick handling and comfortable piloting, with clear, efficient organization.

Accessible, precise controls

The trimmers are ideally positioned right next to the stick axes, for quick, intuitive adjustments during use.

Voice control

The V14 incorporates a voice command system enabling certain actions (e.g. landing gear, trimmers) to be performed by voice. Currently available in English only.

Customizable LEDs - Instant visual information

Each control stick is surrounded by an RGB LED ring with 16 multi-colored LEDs, easily customizable. The colors can indicate the status of your model, so you know at a glance which mode is active. A switch lets you quickly change the display for instant readout.

HelloRadio V14 key features:

• Up to 32 channels available with an external transmitter module
• ELRS LBT-type internal HF module
• Slot for external HF module (module format JR)
• Possibility of dual HF links (redundancy) for maximum protection against interference
• Telemetry
• High-quality Hall sensor handles for greater accuracy
• Radio operating under EDGE TX system
• 128 x 64 LCD display
• Programmable vibrator
• Integrated battery balancer charger with standard USB-C connector
• Sound output via speaker or 3.5 mm jack audio jack
• MicroSD memory card containing software, images, sounds, scripts, model memories, etc.
• Wired schooling socket
• USB-C connector for flight simulator/data transfer
• Voice assistant with integrated microphone

Control elements fitted to this radio remote control :

• 2 hall sensor joysticks
• 2 switches (3 positions)
• 2 switches (2 positions, one pulse)
• 2 pushbuttons with hold
• 2 notched potentiometers in neutral position
• 4 digital trimmers
• 6 programmable function keys

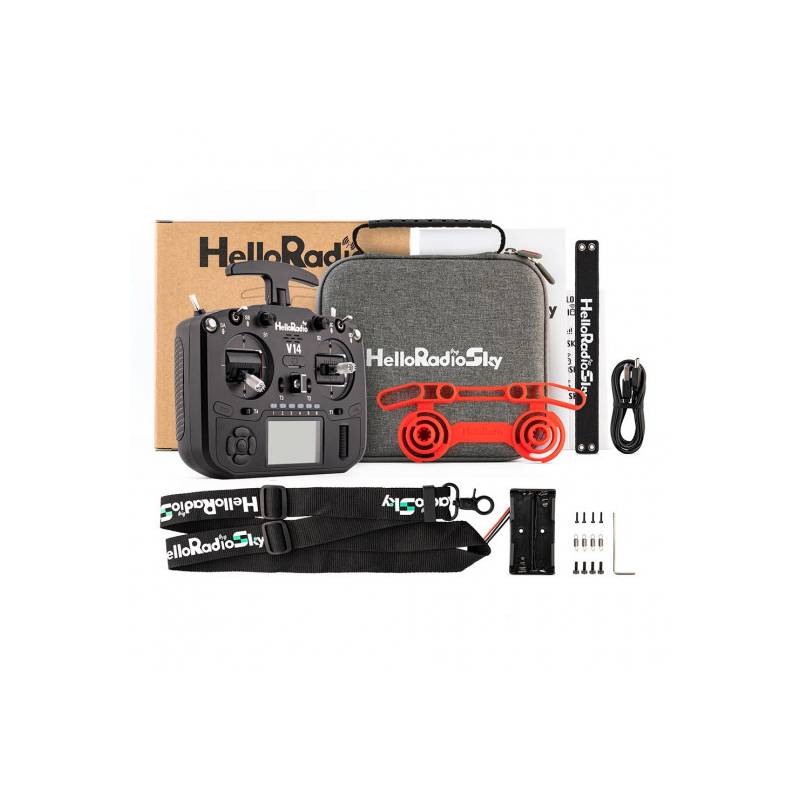

Delivered in :

• HelloRadio V14 pro transmitter
• ELRS LBT version
• Semi-rigid carrying case
• HelloRadioSky" neck strap
• MicroSD card
• USB/USB-C cable
• French manual

Technical specifications :

• Dimensions: 182*132*54 mm
• Weight: 490 g (without battery)
• Frequency: 2.400 GHz - 2.480Ghz
• Internal HF module: ELRS LBT
• Optional external HF module: format JR
• Transmitter power: 100 mW max (LBT)
• Power supply: HelloRadio TX 2S 5000 mAh battery pack or 2 standard 18650 cells (see recommended accessories)
• Operating voltage range: 6.6 V to 8.4 V DC
• Indicative power consumption: approx. 260 mA (depending on user settings)
• Internal firmware: EdgeTX
• Display: LCD screen
• Connections: USB-C (x2 one data port and one charging port)
• Connector system: Jack 3.5 (x2 one power and one audio jack)
