Hydraulic radio controlled forest crane with rotating stabilizers by Leimbach (for Tamiya)

Assembly Kit for an Hydraulic radio controlled forest crane with rotating stabilizers.

For Tamiya trucks.

Ref Leimbach 9410TL

Crane for long wood

Fully functional hydraulic forest crane inspired by HIAB LOGLIFT cranes.

Loading crane for long woods, made of aluminum, comes complete as an assembly kit to build and paint. The kit exists for Tamiya trucks or Wedico trucks .

The crane is installed on a rotating base with double hydraulic cylinders that allows a rotation range of just over 360 °. The lifting capacity at the end of the arm is 1200g.

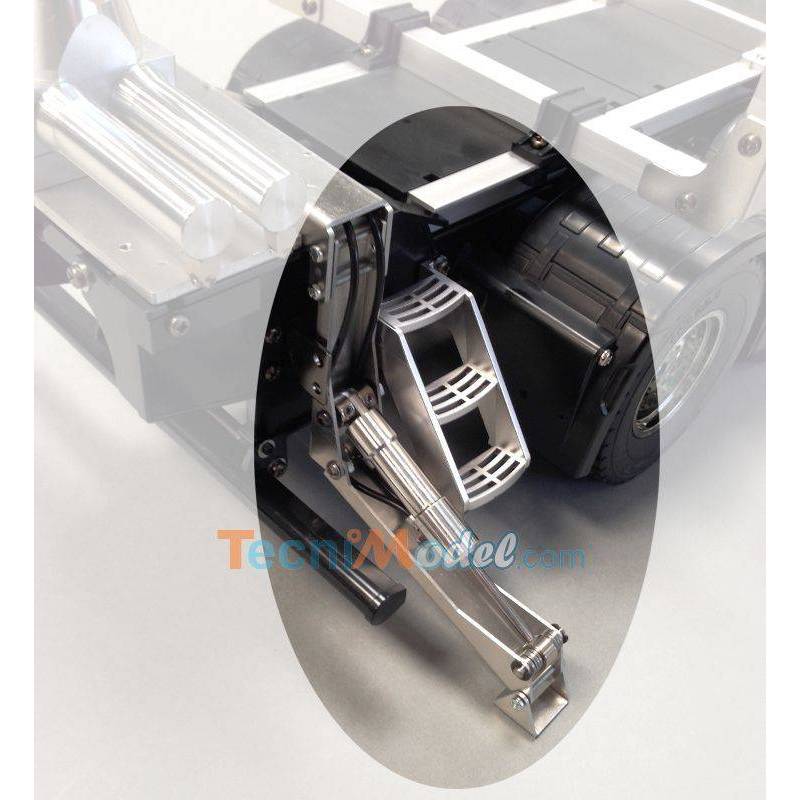

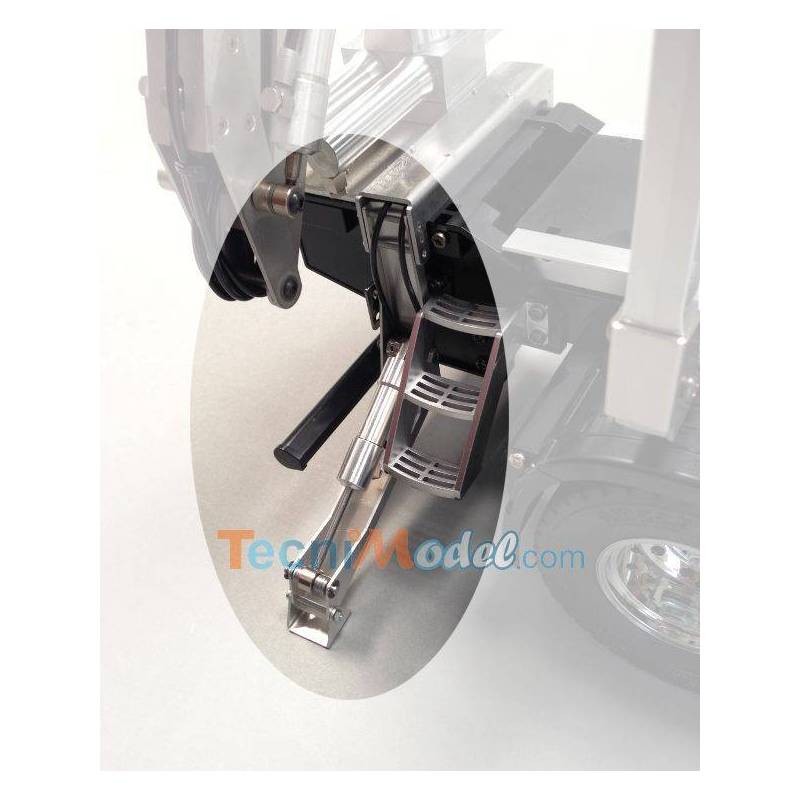

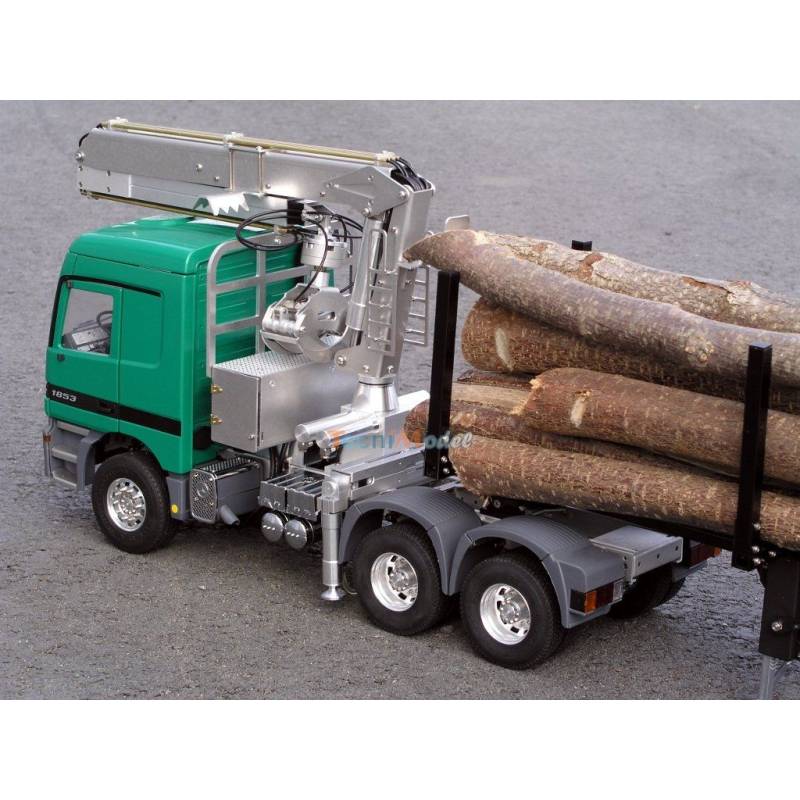

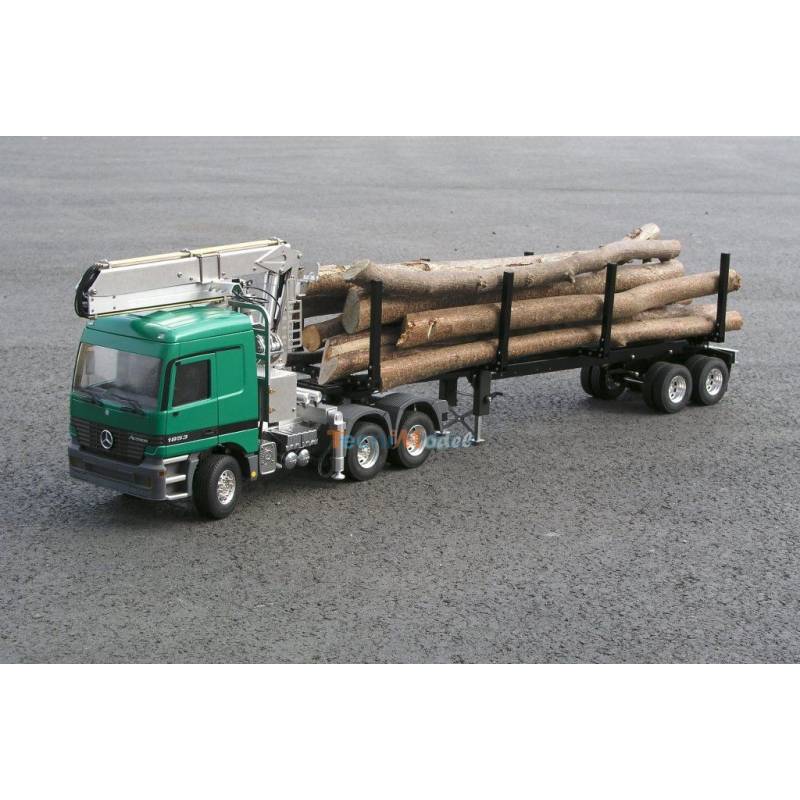

This version comes with swivel stabilizers (pantographs) (see photos) and not expandable. The overview photos show the standard stabilizers.

Contents of the kit:

• All the parts needed to build the crane, made of aluminum.
• Rotating stabilizers.
• Rotating head and log grapple.
• Hydraulic pump and oil filter (pump 7.2v for Tamiya, 12v for Wedico, 200ml / min, 10-16bars). On request, the pump can be shipped for 12v for Tamiya as well.
• 8-way hydraulic valves (delivered without servos, required servos: 8x Robbe S3107).
• Hoses, fittings, accessories and screws.
• Assembly instructions in German (and French version made by TECNIMODEL.)

Dimensions: see download diagram.
