Truck RC 8x8 Tipper MAN LESU

Brand: LESU

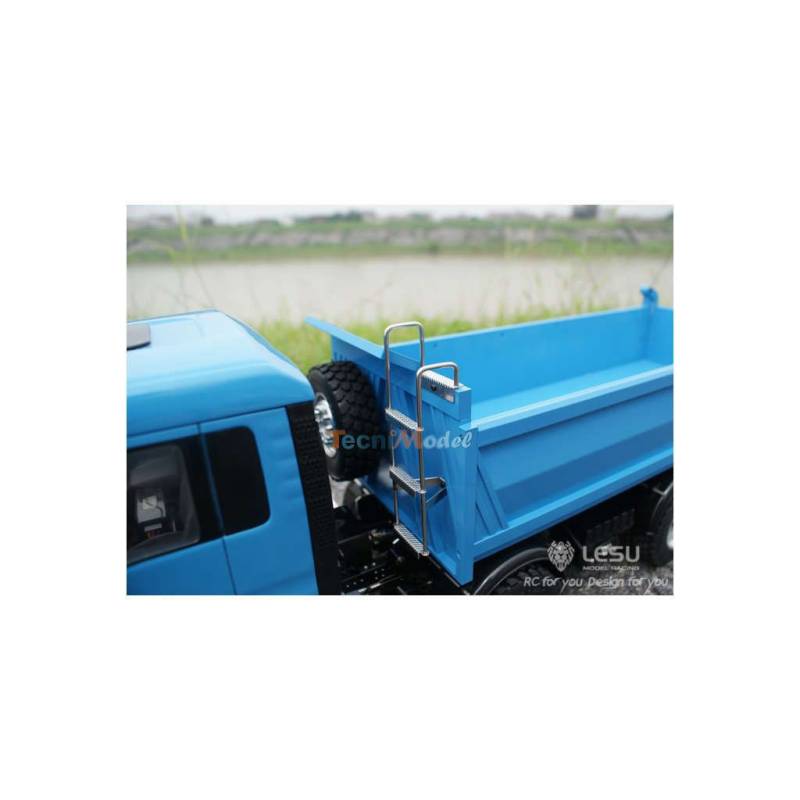

1/14 scale radio-controlled model of a MAN 8x8 tipper truck in metal.

Model delivered semi-assembled: all assemblies to be checked (tightening of screws). Cab to be assembled. Delivered unpainted. Model for modellers with previous experience.

Scope of delivery:

• All-metal 8x8 chassis with radio-controlled locking axles, metal suspension, metal 2-speed gearbox.
• Metal bucket with hydraulic lifting system
• Engine, ESC, light module and sound module supplied.
• Resin cab to be assembled and painted, with resin, plastic and metal accessories

Features:

• Scale: 1/14
• Length: 65 cm
• Width: 18.5 cm
• Height: 25 cm
• Weight: 9 kg

Hardware not included required for operation:

• Programmable radio control set ( 7 channels minimum ).
• 2S 7.4v or 3S 11.1v Lipo battery
• Hydraulic oil.

Number of radio control channels required:

1) Steering ( proportional, example 1 stick )

2) Motor variator ( proportional, example 1 stick )

3) Gearbox ( example: 2-position switch )

4) Differential lock ( example: 2-position switch )

5) Sound module control ( example: 3-position switch )

6) Light module control ( example: 3-position switch )

7) Hydraulic lift pump control ( proportional, example by potentiometer )
