Kabolite K5801 Silver - Arocs 4x4 tractor unit with electric tipper semi-trailer RTR 1/14

Arocs 4x4 tractor unit with electric tipper semi-trailer RTR 1/14

Kabolite K5801 Silver

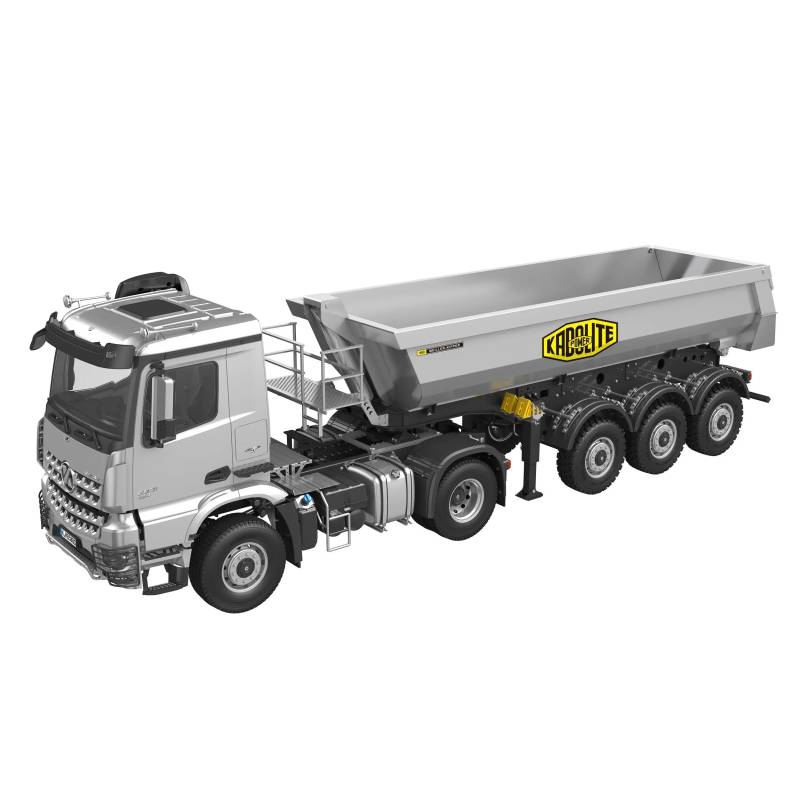

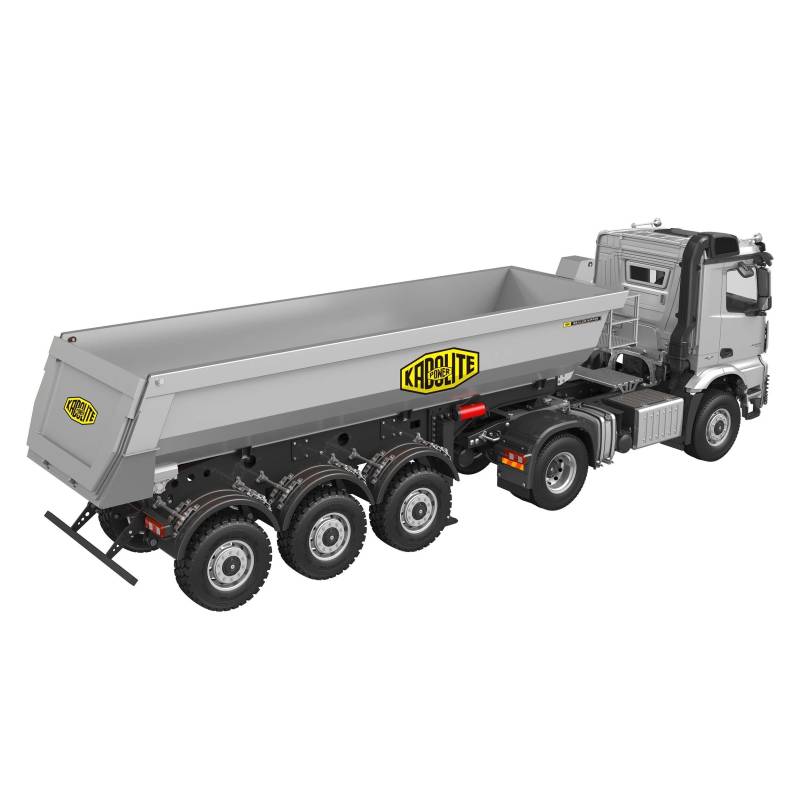

1/14 scale radio-controlled model of a Mercedes Arocs construction truck in a 4x4 tractor configuration, accompanied by a 3-axle tipper semi-trailer fitted with an electric lifting system.

Truck specifications:

• Model delivered assembled and painted
• All-metal 4x4 chassis
• Leaf spring suspension
• 2-speed gearbox
• Both axles are driven
• Road tyres (Ø85mm)
• Double-oscillation fifth wheel (articulated on 2 axes)
• 540-type drive motor
• Installed lighting and sound module (position lights, low beam, high beam, turn signals/warning lights, brake lights, reversing lights)

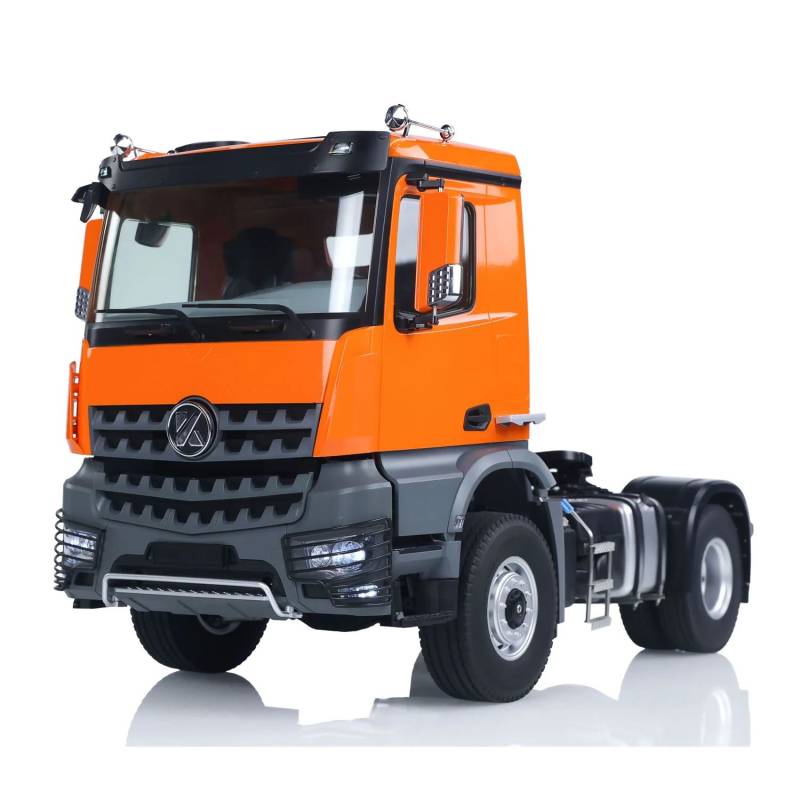

• Cab inspired by a Mercedes-Benz Arocs, in robust rigid plastic, highly detailed (complete interior, windshield wipers, articulated mirrors, front view mirror, docking mirror, sun visor with position lights, protective grilles for front lights, turn signal repeaters in fenders, steps)

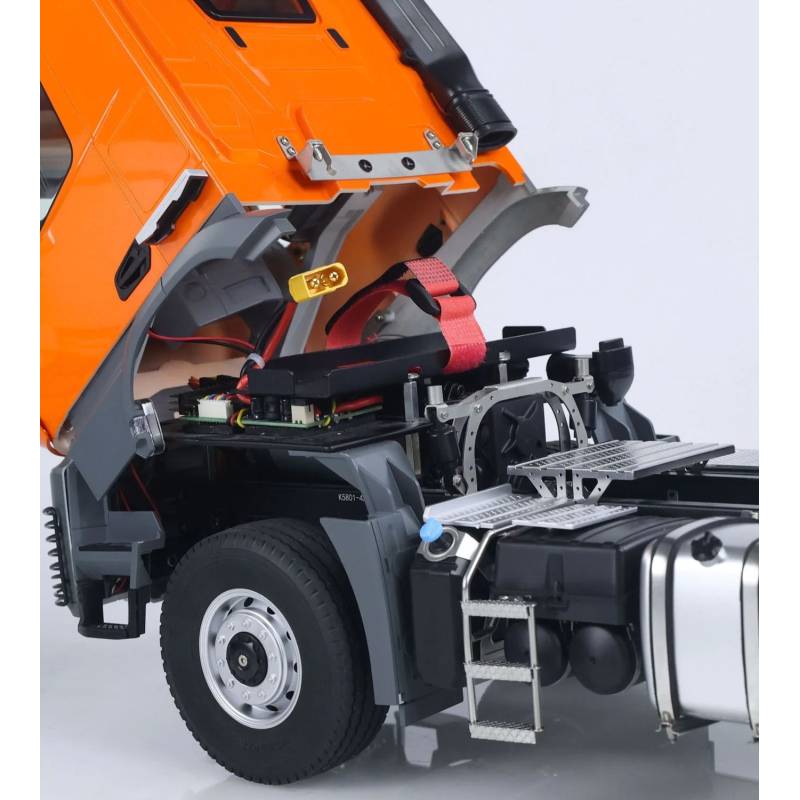

• Tilting cab allowing for battery installation
• Steering angle: 30°
• Approach angle: 23°
• Departure angle: 36°
• Minimum ground clearance: 24mm

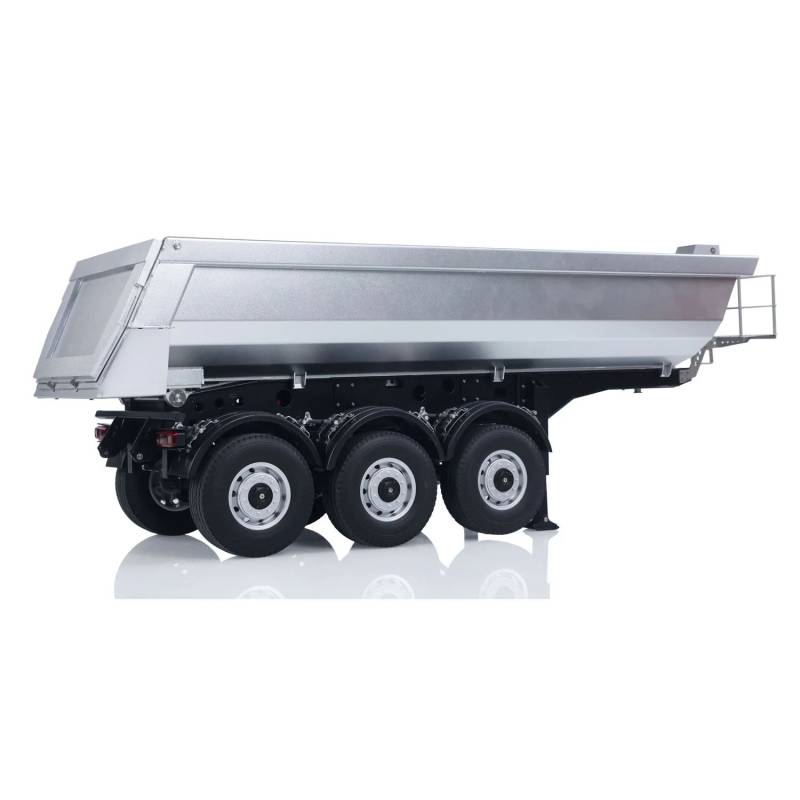

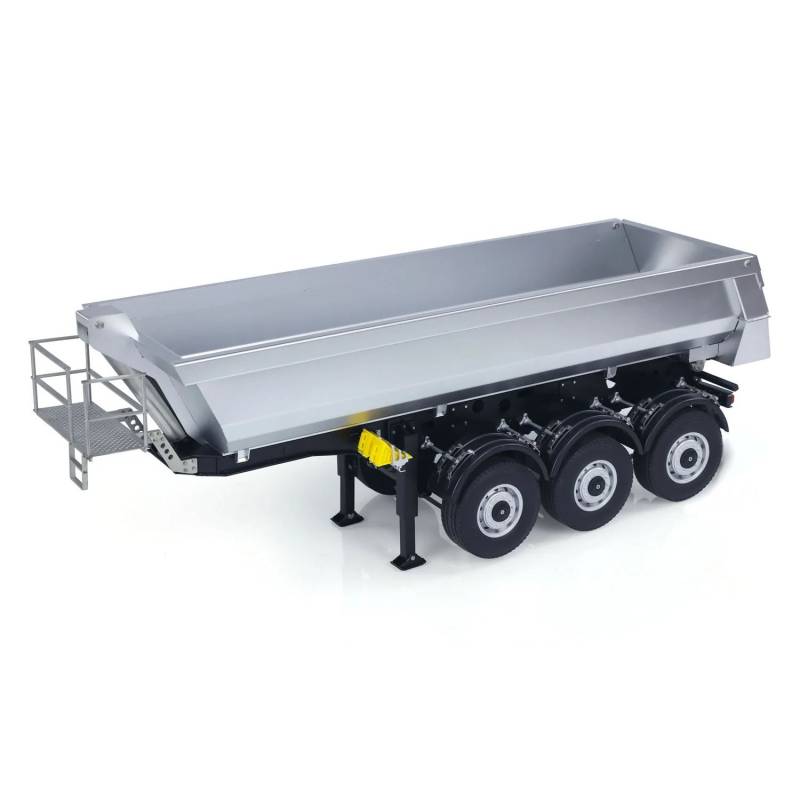

Trailer specifications:

• Model delivered assembled and painted
• All-metal 3-axle chassis

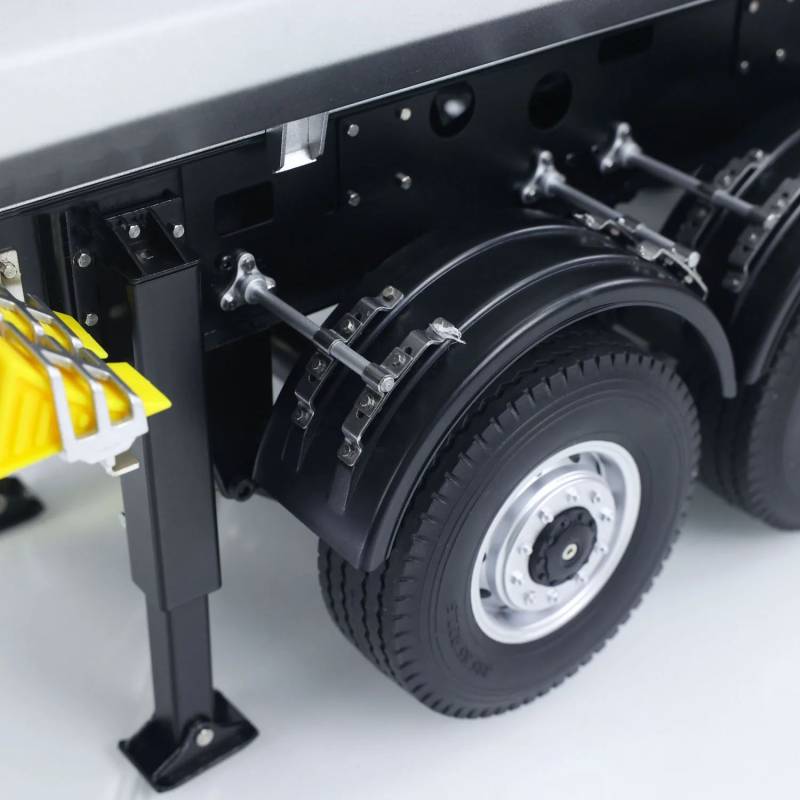

• Leaf spring suspension
• Wide road tyres (Ø85mm)

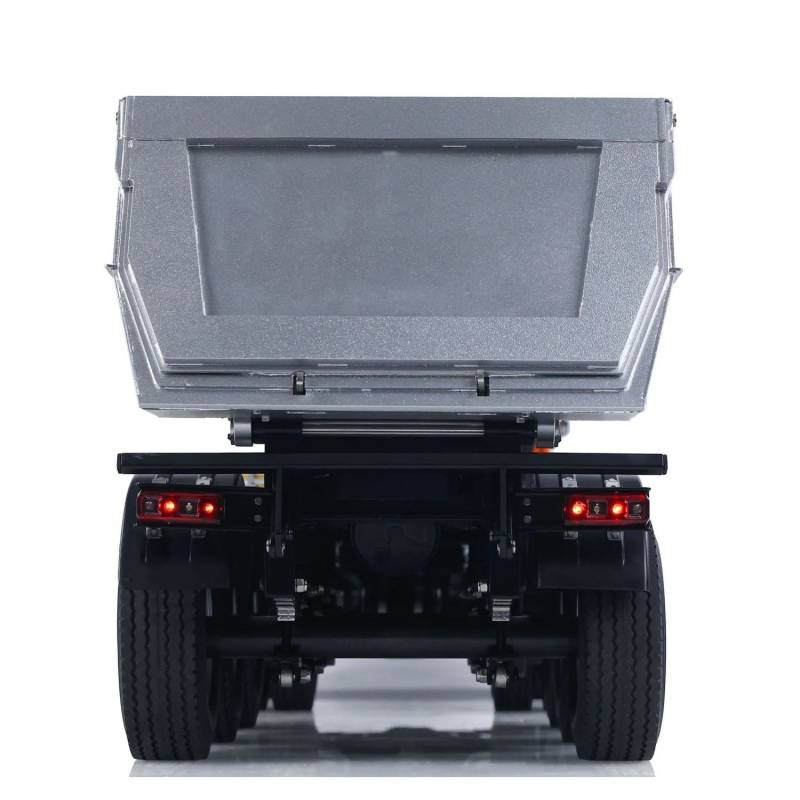

• Metal tipper body with self-locking tailgate

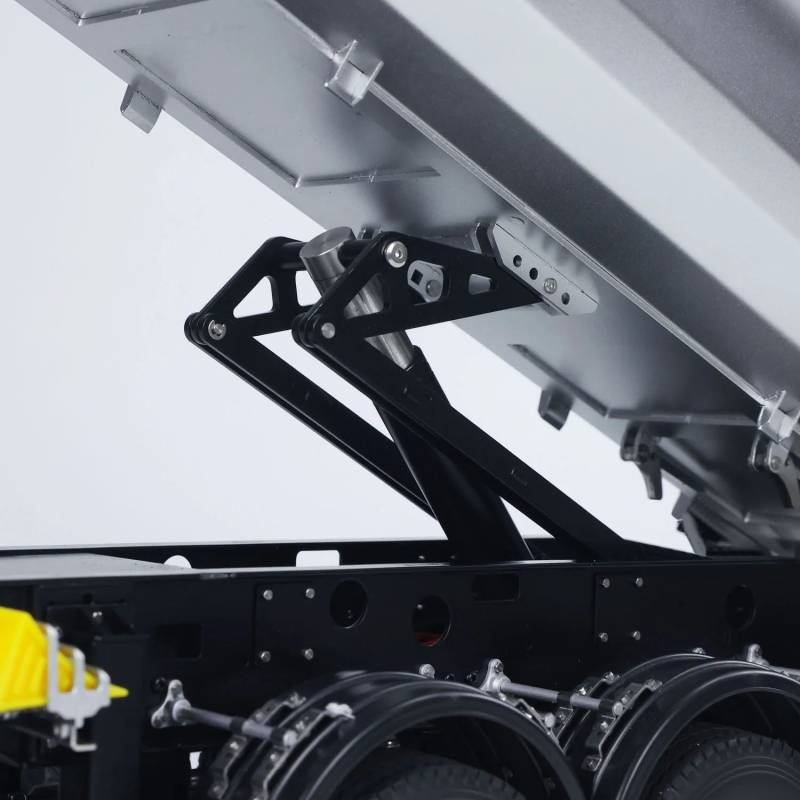

• Electric lifting system with compass mechanism
• Tipping angle: 47°
• Manually liftable rear underrun bar

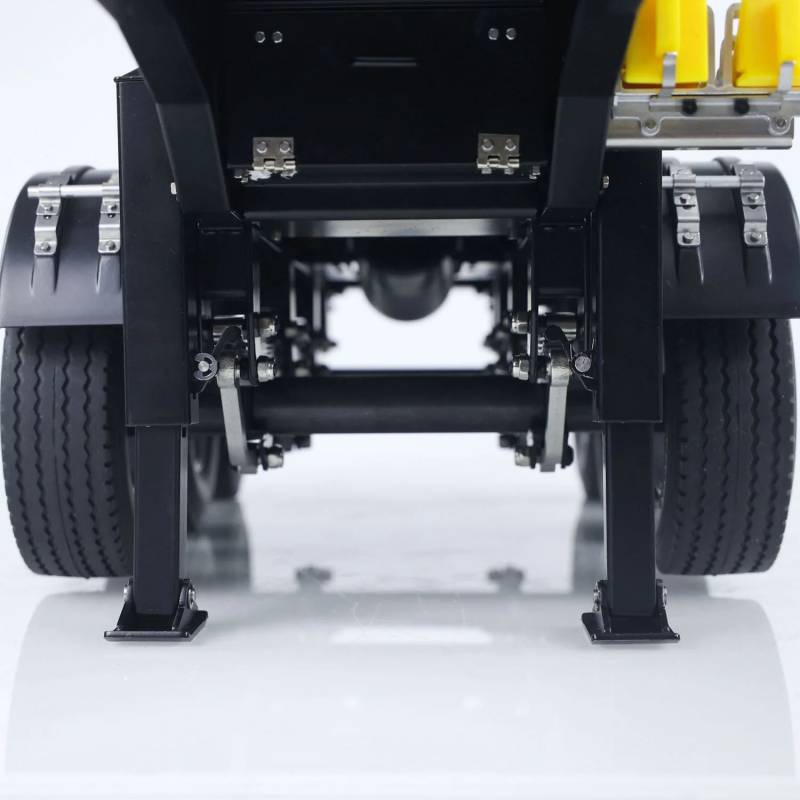

• Manual landing gear

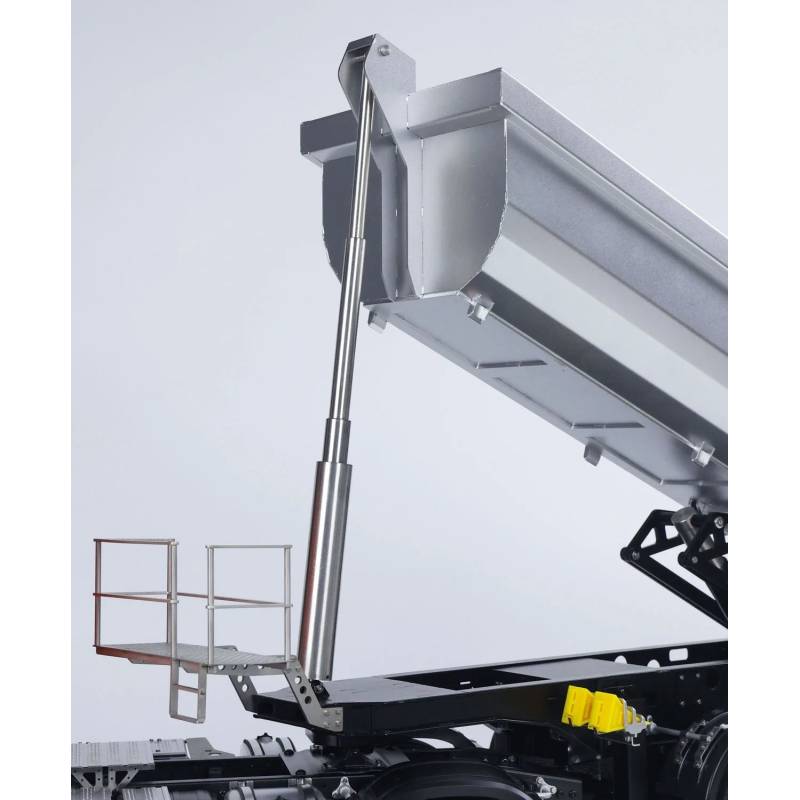

• Stainless steel front working platform
• Dummy telescopic cylinder at the front
• Lighting module controlled by the truck (position lights, turn signals/warning lights, brake lights, reversing lights)

Dimensions and weight:

• Scale: 1/14
• Tractor length: 542mm
• Tractor width: 208mm (including mirrors)
• Tractor height: 273mm
• Trailer length: 662mm
• Trailer width: 185mm (including mirrors)
• Trailer height: 241mm
• Overall length: 892mm
• Overall weight: 9.6 kg

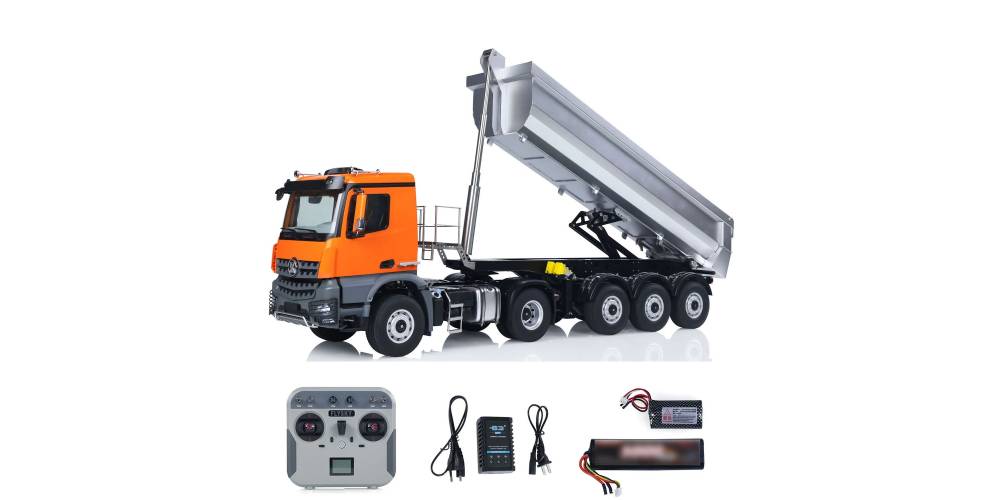

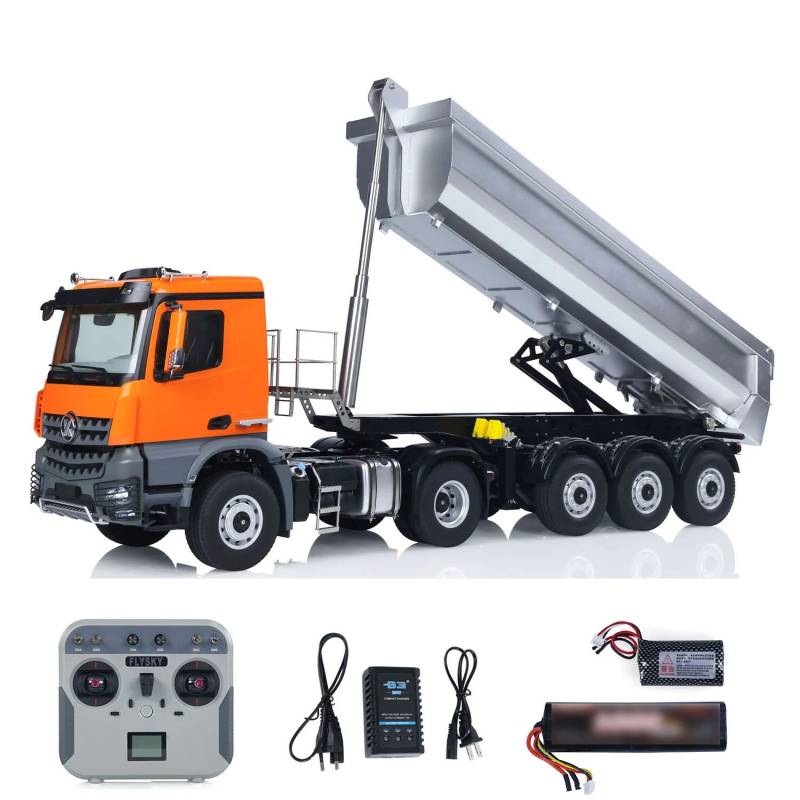

Scope of delivery:

• 4x4 tractor
• Tipper semi-trailer
• FlySky 10-channel remote control
• 7.4V 5000mAh battery with XT-60 connector
• 7.4V 3000mAh battery with XT-30 connector
• 220V battery charger
• Batteries for the remote control

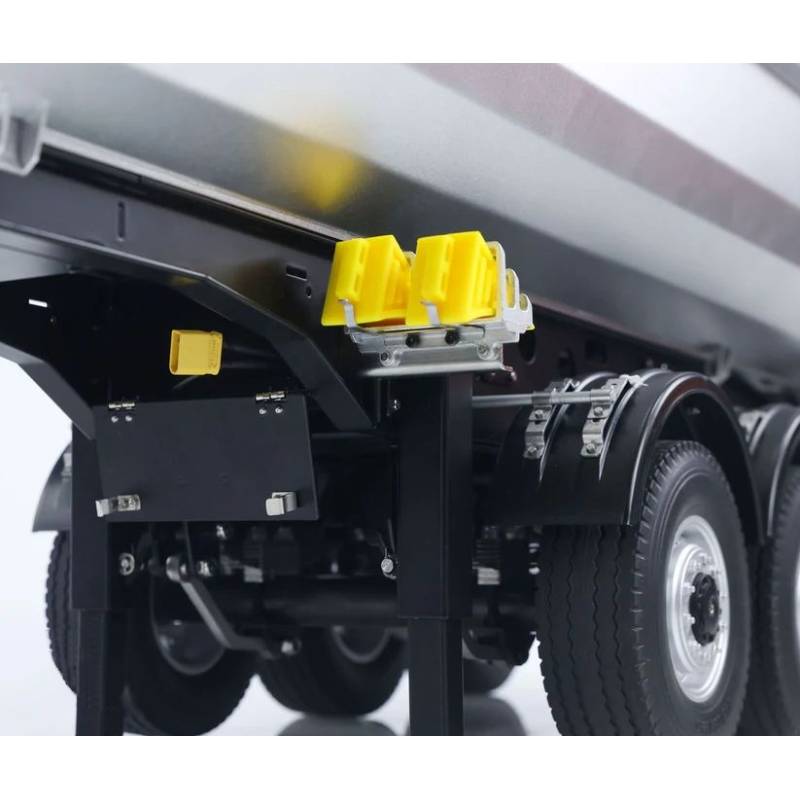

• A pair of wheel chocks
• Finishing parts for the model, too fragile to be installed before delivery (headlight protection grids, horns, trailer working platform, various stickers...)

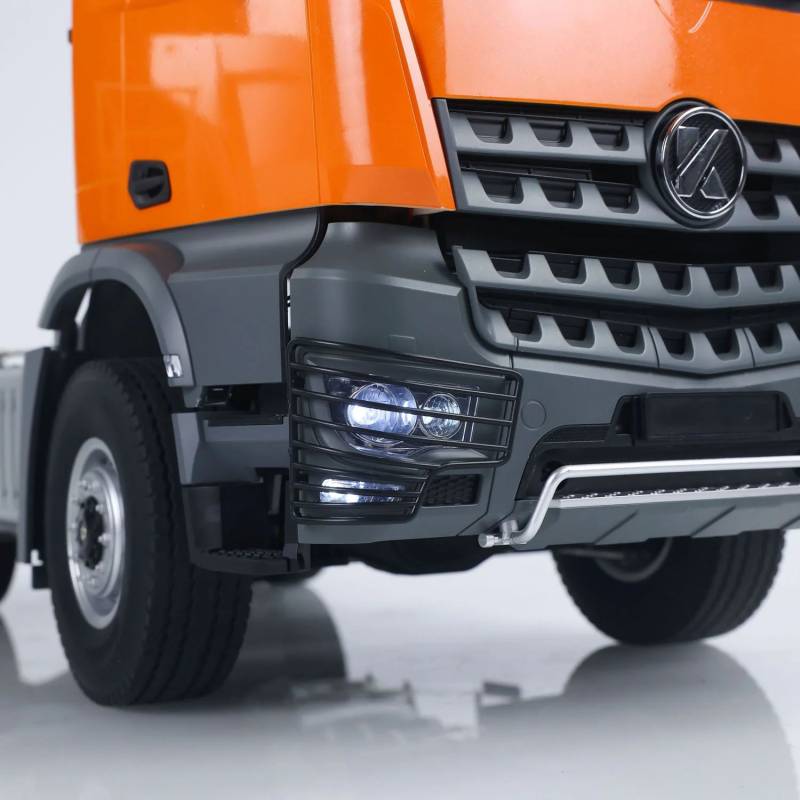

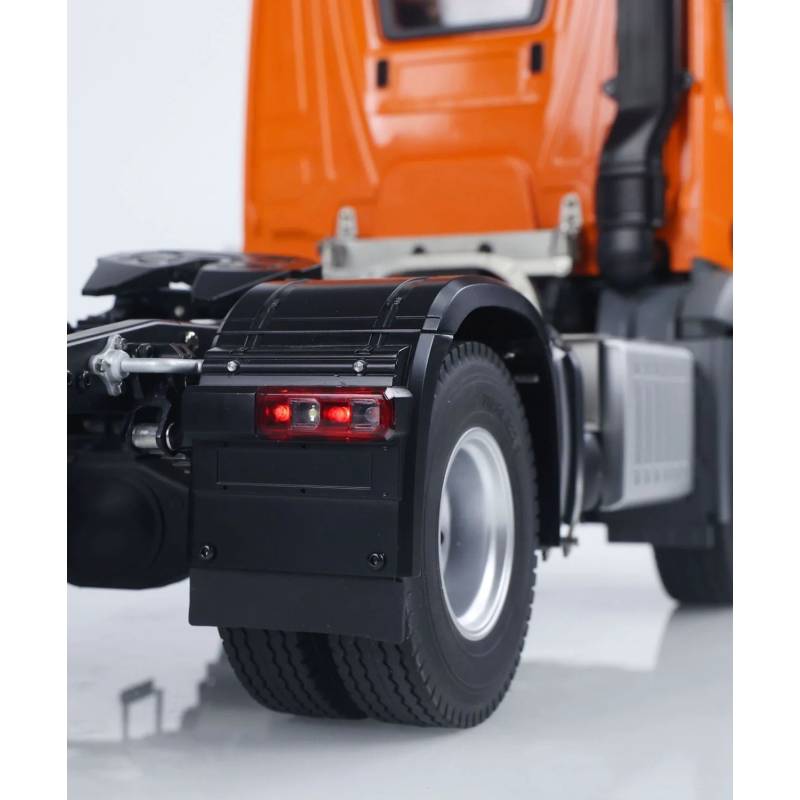

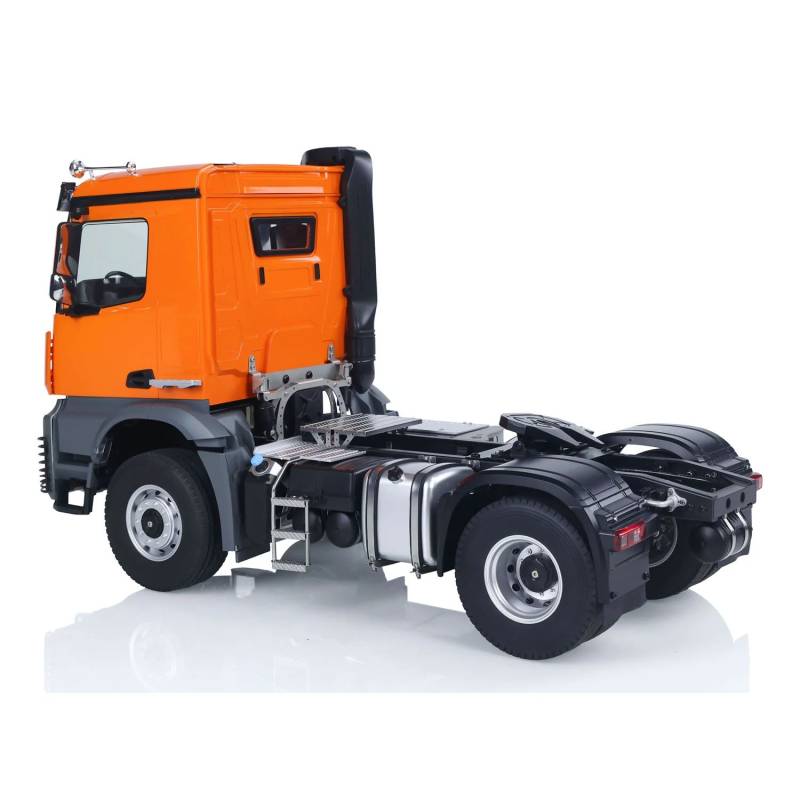

The photos showing the model in its Orange version are intended solely to present the product in greater detail.
