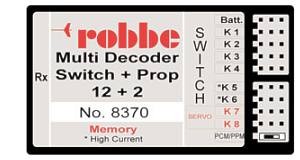

Multi-Switch-Prop 12+2 decoder memo 8370

Multi-Switch-Prop 12+2 memo decoder

Ref Robbe 8370

The Robbe products for radio controllers Robbe/Futaba F-14 and Fc16 are now reissued and are available again.

Multi-Switch-Prop 12+2 decoder module memo

A decoder on the receiver is required for each Multiswitch module on the transmitter.

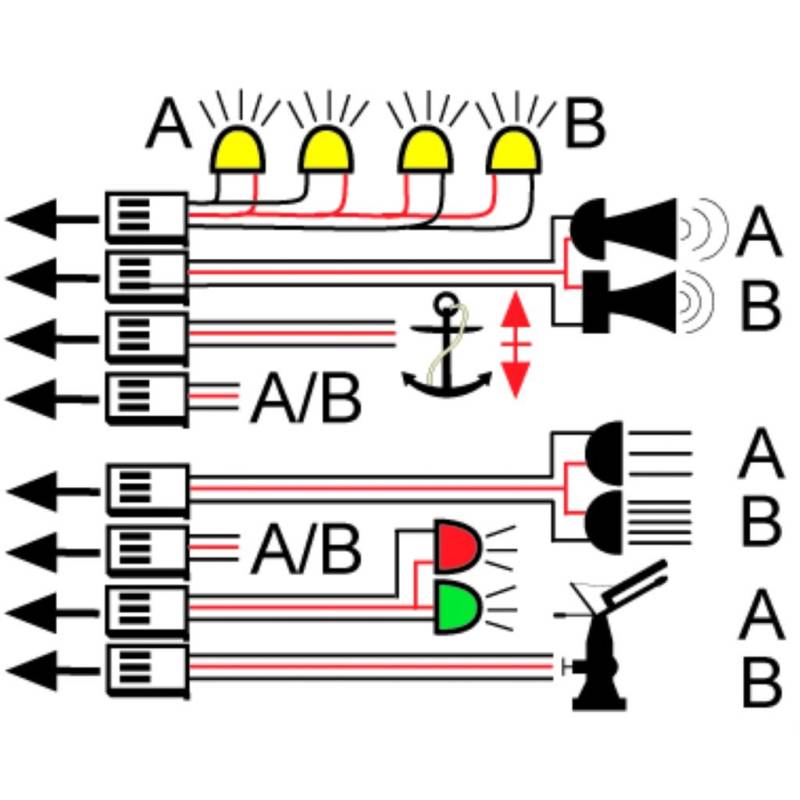

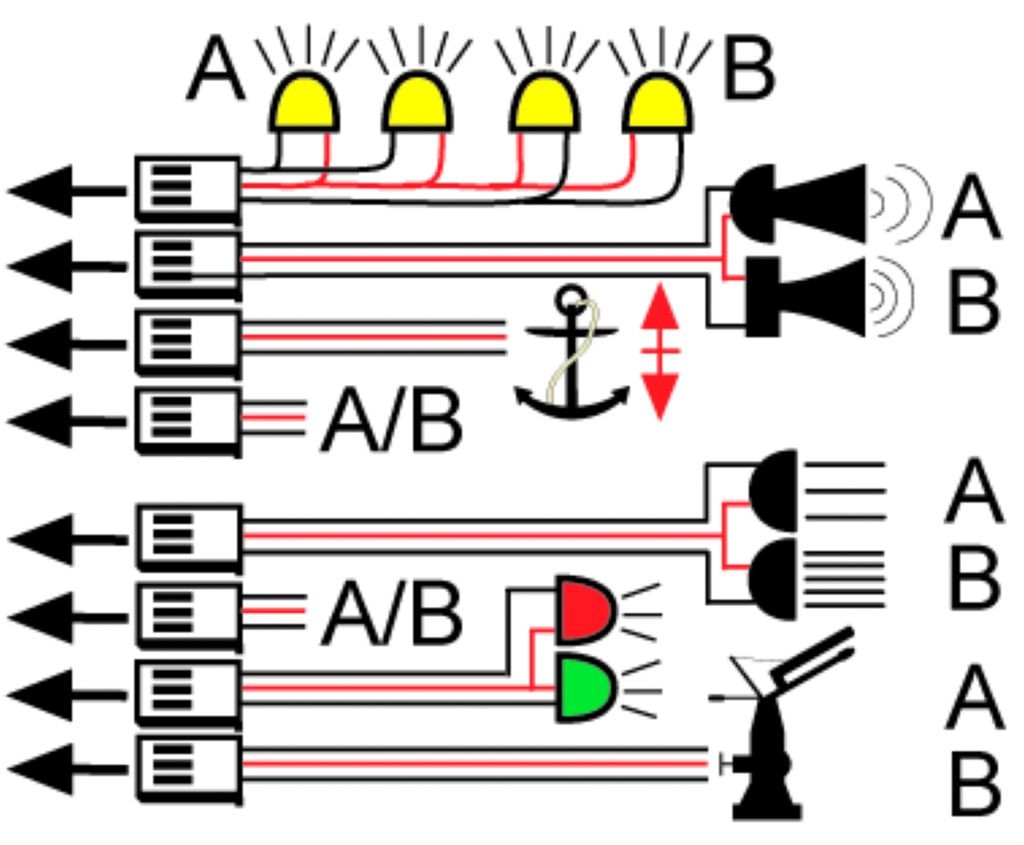

This one uses only one radio channel but directly enslaves 12 on-off functions and 2 channels for servo. Operating voltage 4.8 to 24 V up to 2.7 A per output.

Now, with memorization function. This allows you to simultaneously switch the outputs assigned to one control switch. The memorization function can be disabled if necessary.
A Multiswitch-prop decoder can also handle the switching functions of the 8- and 16-port Switch modules.
The final stage protected from short circuits, polarity inversions and excessive temperatures makes it a virtually indestructible decoder.

It is possible to connect the relay modules (ref Robbe 8442) and reverse polarity relay (ref Robbe 8443) to control motors whose consumption exceeds that permissible by the module.
