Sail Servo 10kg.cm / 6v 4 turns KingMax
Sail Servo, standard servo dimensions, for small sailboat models.
Reference : RAKM55134MA
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB12
Sail Servo 10kg.cm / 6v 4 turns KingMax
KingMax SW5513-4MA
Sail servo, standard servo size, for sailboats up to 1m.
Number of turns: 4 turns
Metal gear on ball bearings
The drum is fitted with a sheet guide housing.
Technical data :
- Length: approx. 40.5 mm
- Width: approx. 20.2 mm
- Height: approx. 38 mm
- Drum winding diameter: 24.5mm
- Drum winding per revolution: approx. 78mm
- Number of turns: approx. 4 turns
- Torque:
- 9.2Kg.cm (4.8v)
- 10.6Kg.cm (6 V)
- Speed/360°:
- 1.1s (4.8v)
- 0,9s (6V)
- Operating voltage: 4.8V - 6V
- No-load consumption: 110-120mA
- Operating consumption: 300-350mA
- Blocking current: 0.9 - 1.05A
- Connector: JR / Universal plug - Cord approx. 265mm long
- Weight: 57g

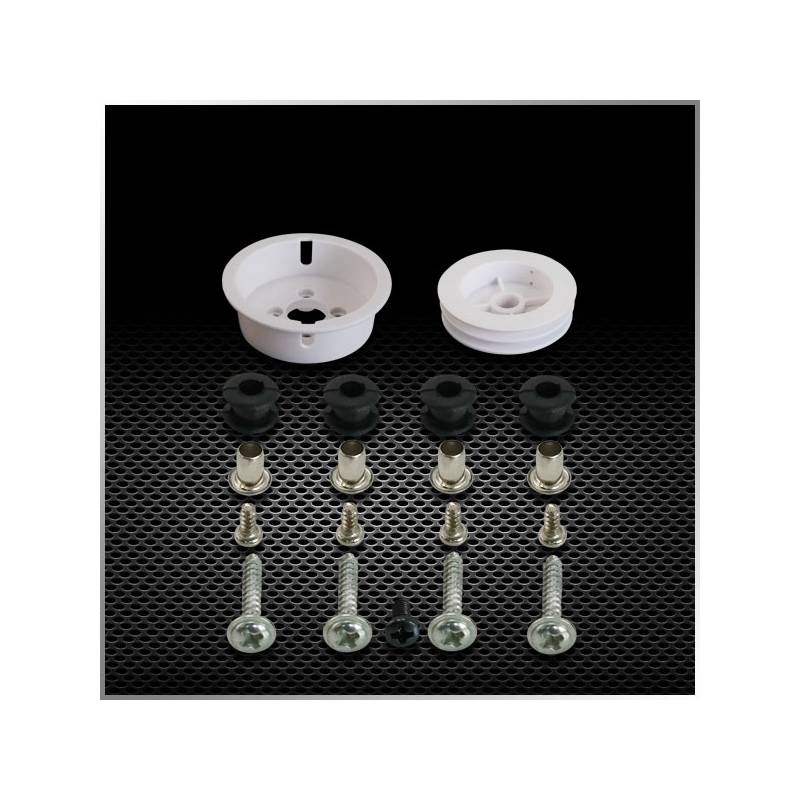

Scope of delivery
- 1 Sail winch
- 1 winch drum with guide
- Small fasteners
Recommended accessories:
| Voltage (V) | 4.8v 6.0v |
|---|---|
| Turn | 4 |
| Torque (Kg.cm) | 9.2Kg.cm(4.8v) 10.6Kg.cm(6v) |
