Propeller shaft Raboesch M4 Ø4mm 261mm, tube Ø6mm 225mm, sealed and maintenance-free
Raboesch 301-25

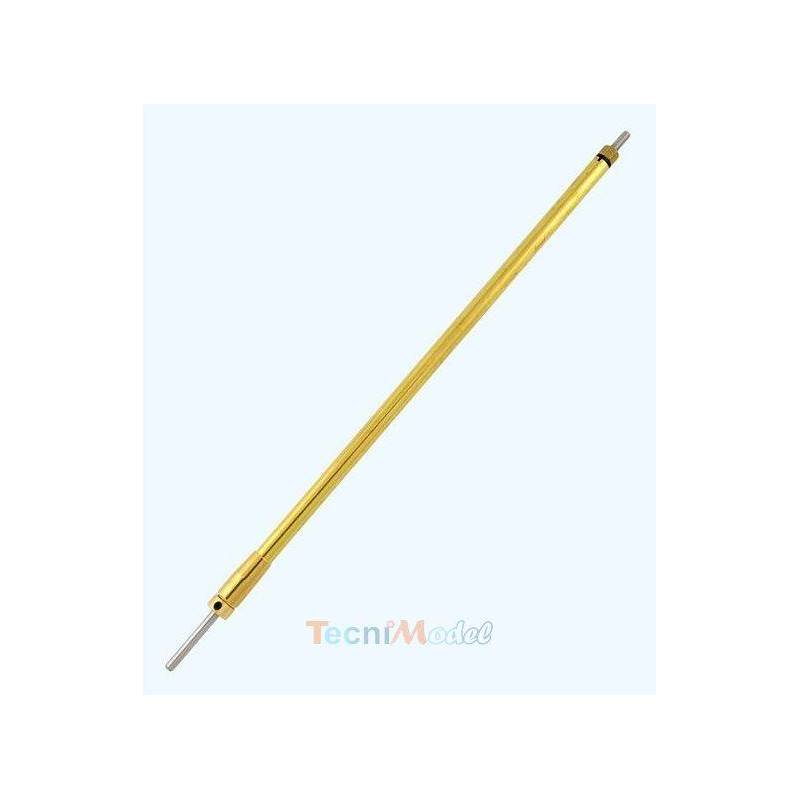

This high-quality shaft system is precision-manufactured by Raboesch in the Netherlands.
The stainless steel shaft has an M4 thread on the propeller side, with a locknut. The propeller shaft is guided on the motor side by a self-lubricating bronze bearing and on the propeller side by a Delrin ring.
Maintenance-free sealing is ensured by a lip seal, also available as a spare part.
On the motor side, the assembly is fitted with a retaining ring and washer.
Assembly instructions in several languages are supplied.
Maximum speed 10000 rpm.

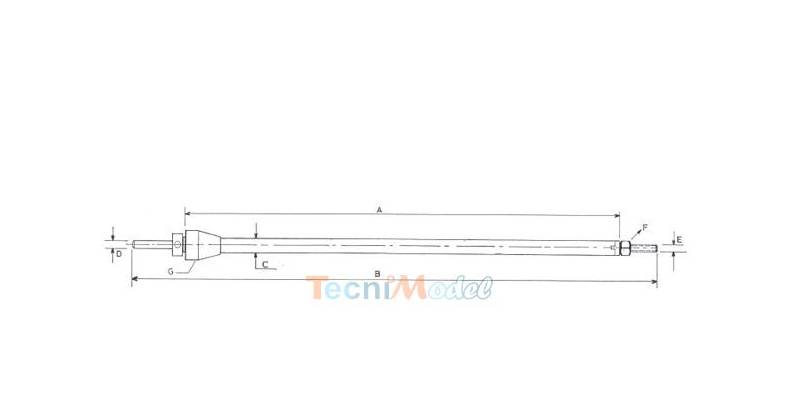

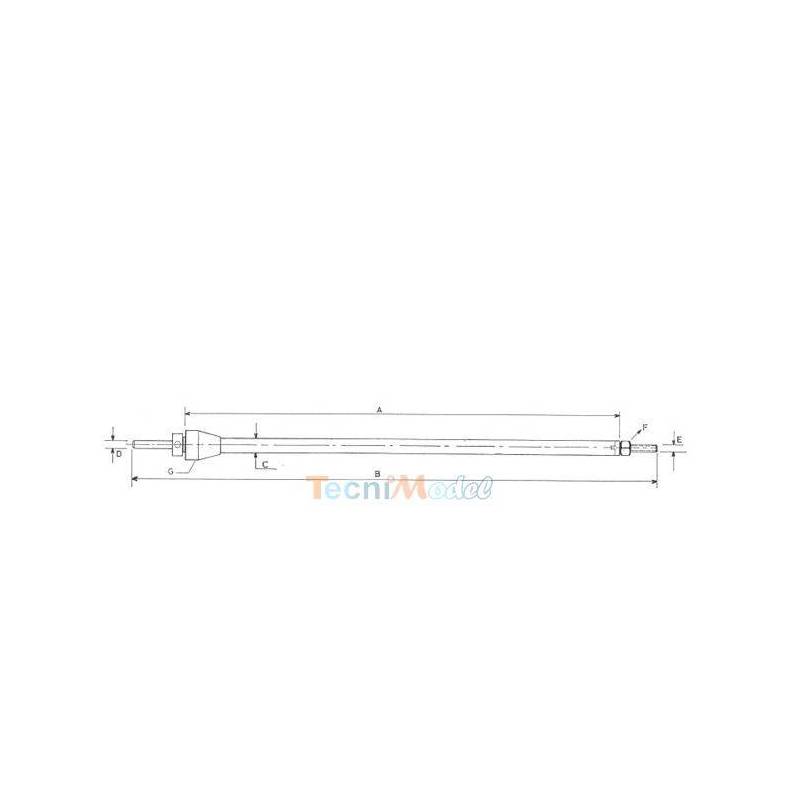

Technical specifications
- Tube length (A) 225 mm
- Shaft length (B) 261 mm
- Tube diameter (C) 6 mm
- Shaft diameter (D) 4 mm
- Propeller thread (E) M4x16 mm
- Largest diameter (G) 10.5 mm
- Tube material: brass
- Shaft material: stainless steel
| Shaft diameter | Ø4mm |
|---|---|
| Shaft length (mm) | 261 |
| Stern tube diameter | Ø6mm |
| Stern tube length (mm) | 225 |
| Thread | M4 |
