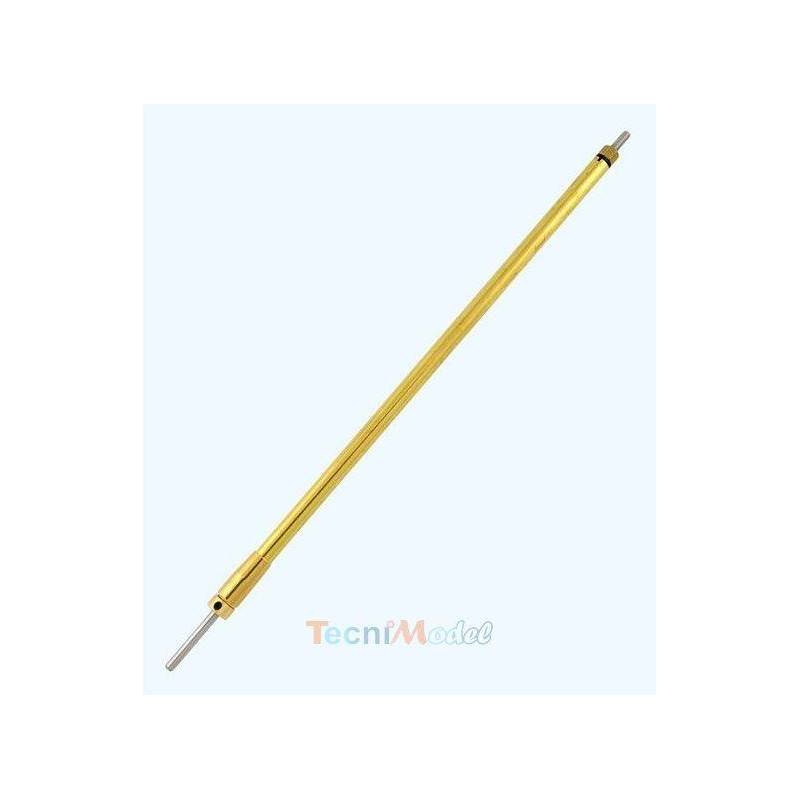

Propeller shaft Raboesch M4 Ø4mm 211mm, tube Ø6mm 175mm, sealed and maintenance-free

Propeller shaft Raboesch Ø4mm sealed and maintenance-free, with lip seal.

Raboesch 301-23

This high-quality shaft system is precision-manufactured by Raboesch in the Netherlands.

The stainless steel shaft has an M4 thread on the propeller side, with a locknut. The propeller shaft is guided on the motor side by a self-lubricating bronze bearing and on the propeller side by a Delrin ring.

Maintenance-free sealing is ensured by a lip seal, also available as spare parts.

On the motor side, the assembly is fitted with a retaining ring and washer.

Assembly instructions in several languages are supplied.

Maximum permissible speed 10000 rpm.

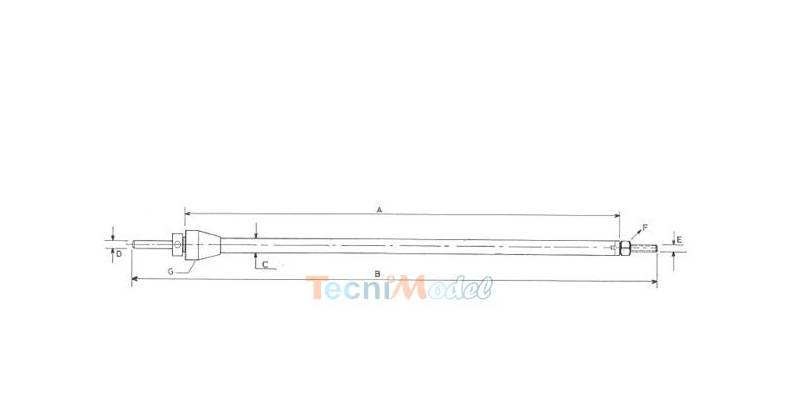

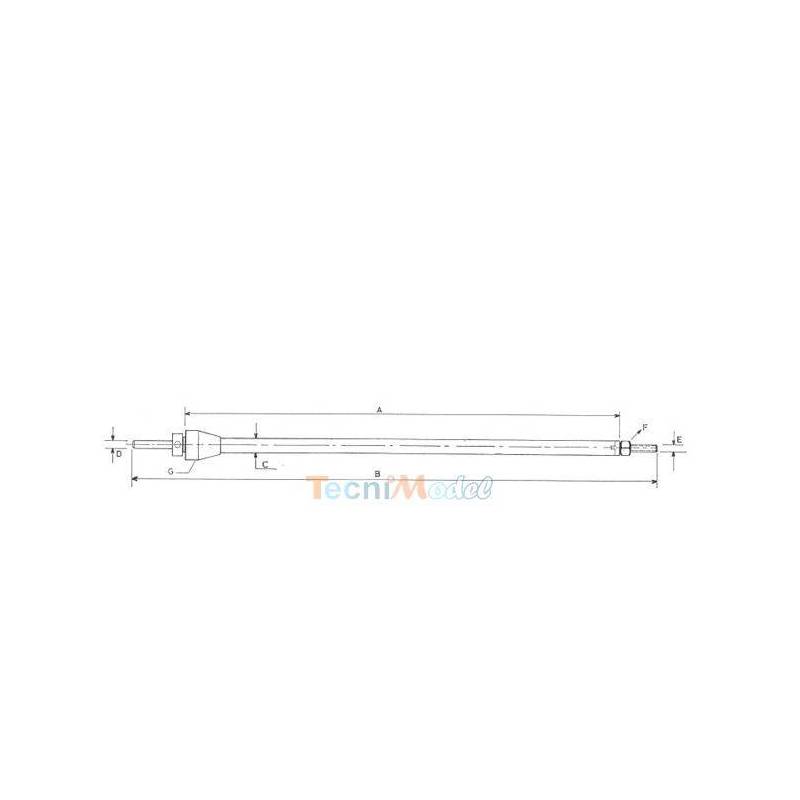

Technical specifications

• Tube length (A) 175 mm
• Shaft length (B) 211 mm
• Tube diameter (C) 6 mm
• Shaft diameter (D) 4 mm
• Propeller thread (E) M4x16 mm
• Largest diameter (G) 10.5 mm
• Tube material: brass
• Shaft material: stainless steel
