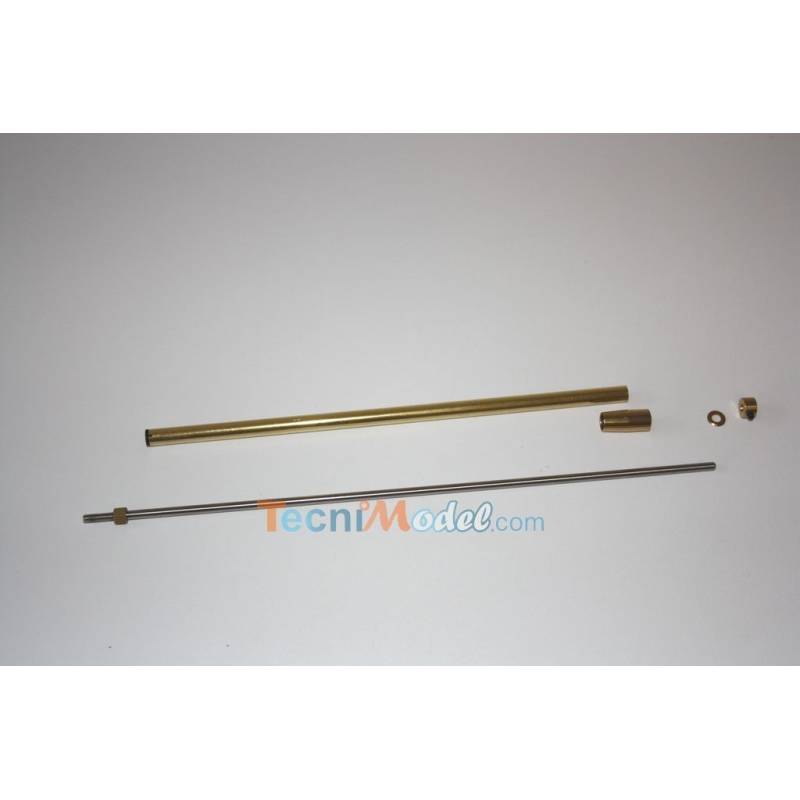

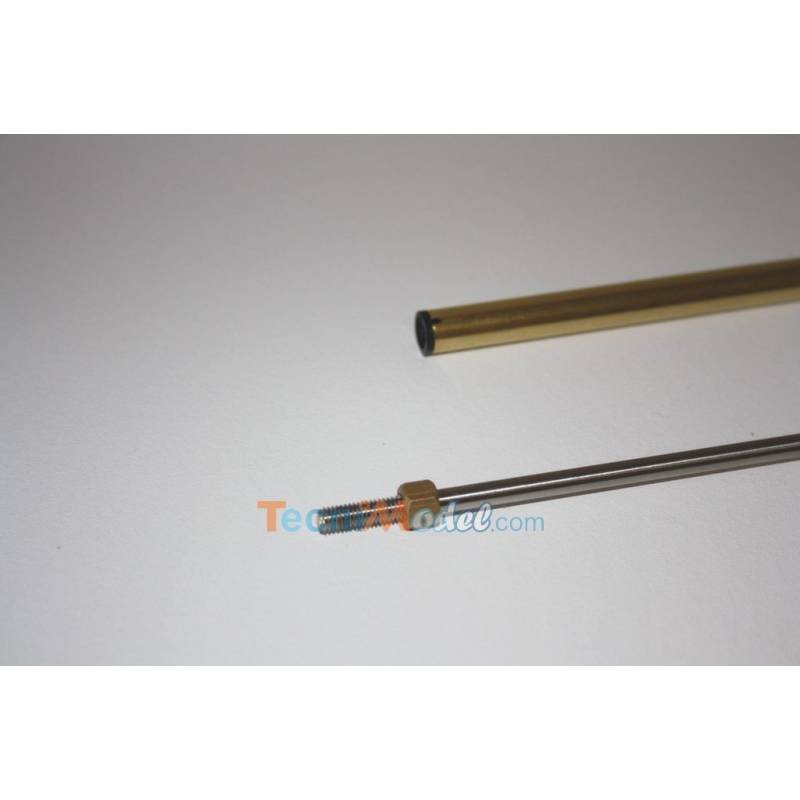

Ø4mm recuttable shaft 290mm watertight and maintenance-free, Ø6mm tube 240mm
Ø4mm recut propeller shaft and Ø6mm tube, sealed and maintenance-free
Shaft 290mm, tube 240mm, recut, 30101
Reference : PBRA230101
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM11
Ø4mm propeller shaft
recut, sealed and maintenance-free
Ø6 mm tube
Ref Raboesch: 230101

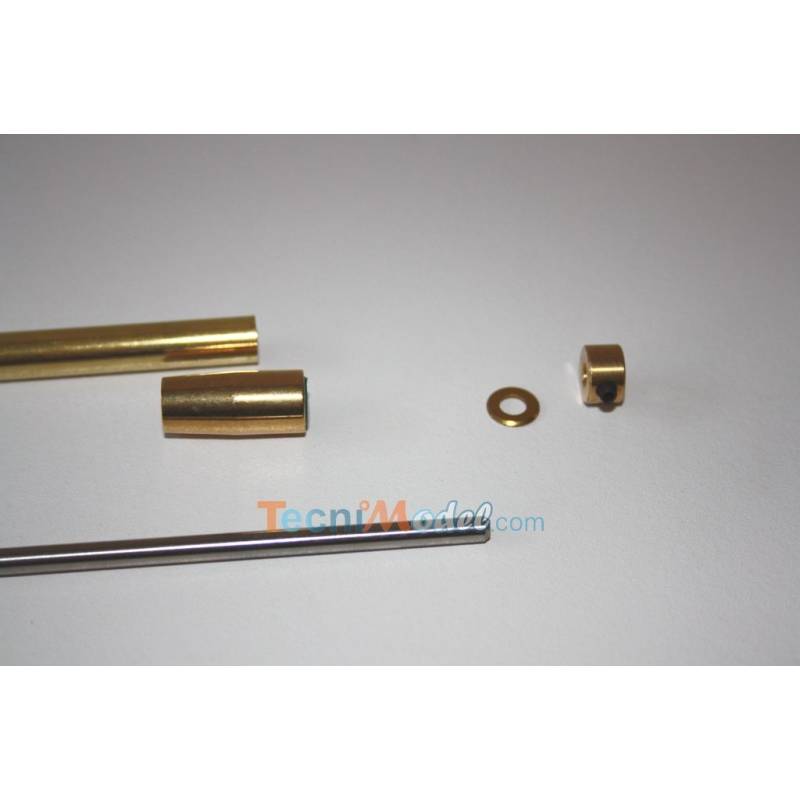

Completely maintenance-free propeller shafts designed for model boats and submarines. The bearing cages next to the motor are fitted with a self-lubricating bronze bearing and a watertight G-seal.
These shafts therefore require no lubrication.
This part number can be shortened: the cage is not attached to the tube, so the length can be adjusted.
Carefully cut and deburr (to avoid damaging the seal during assembly), then glue the cage to the tube.
We recommend UHU Plus "Endfest" glue for a strong bond.
Shaft length: 290mm
Tube length (including cage): 240mm
Shaft diameter: 4mm
Tube diameter: 6mm
M4 propeller thread.
Max. rotation speed in water: 10000 rpm
| Shaft diameter | Ø4mm |
|---|---|
| Shaft length (mm) | 290 |
| Stern tube diameter | Ø6mm |
| Stern tube length (mm) | 240 |
| Recoupable | Yes |
| Thread | M4 |
Propeller_Shafts_301-00-06-1
Shafts Raboesch watertight
