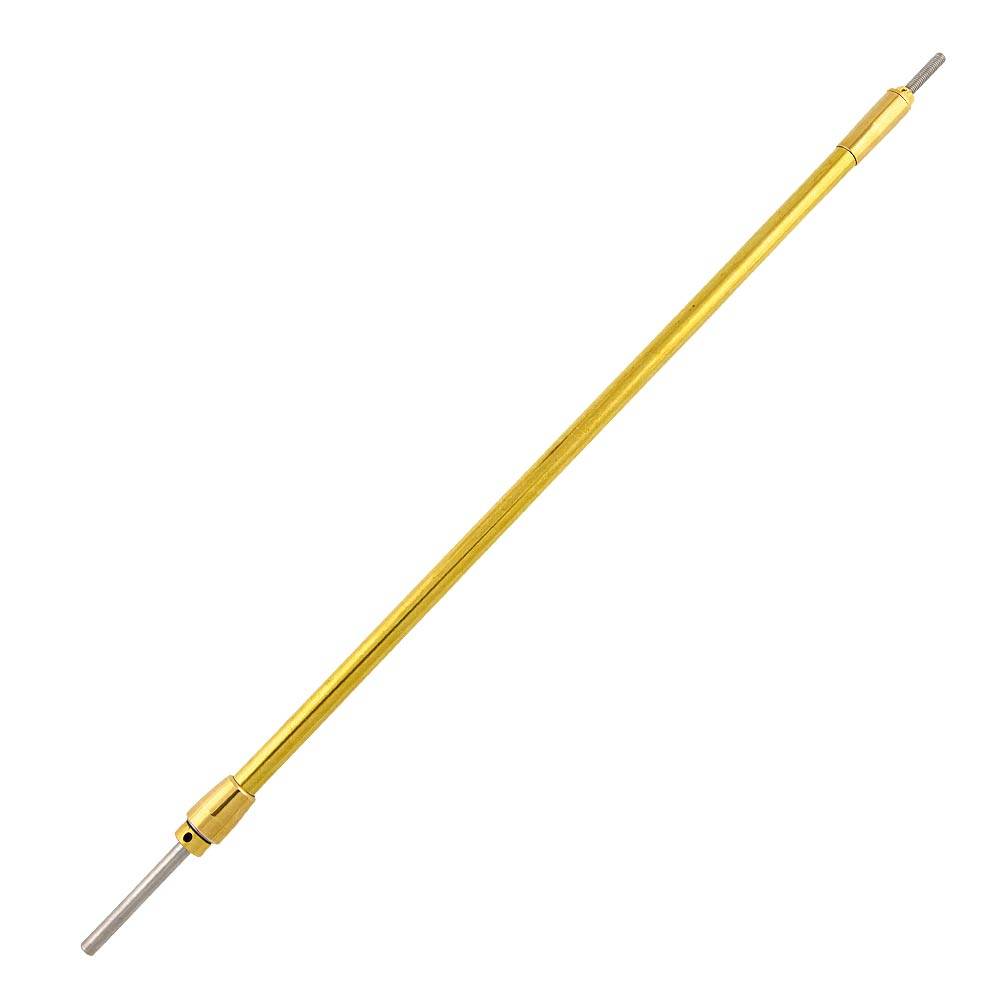

Ø6mm M5 450mm watertight propeller shaft and Ø10mm 370mm stern tube - can be shortened
Raboesch 300-11
Stainless steel propeller shaft
Shaft: Ø6x450mm
Thread: M5x25mm
Stern tube in brass
Tube: Ø10x370mm
Front bearing: ball bearing
Rear bearing: bronze
Motor-side bearing support diameter: Ø12mm
Propeller-side bearing support diameter: Ø16mm
Maximum speed in water (do not run fast when dry) = 16000rpm
The stern tube can be adjusted to the desired length before gluing.
| Shaft diameter | Ø6mm |
|---|---|
| Shaft length (mm) | 450 |
| Stern tube diameter | Ø10mm |
| Stern tube length (mm) | 370 |
| On bearing(s) | Yes |
| Thread | M5 |
