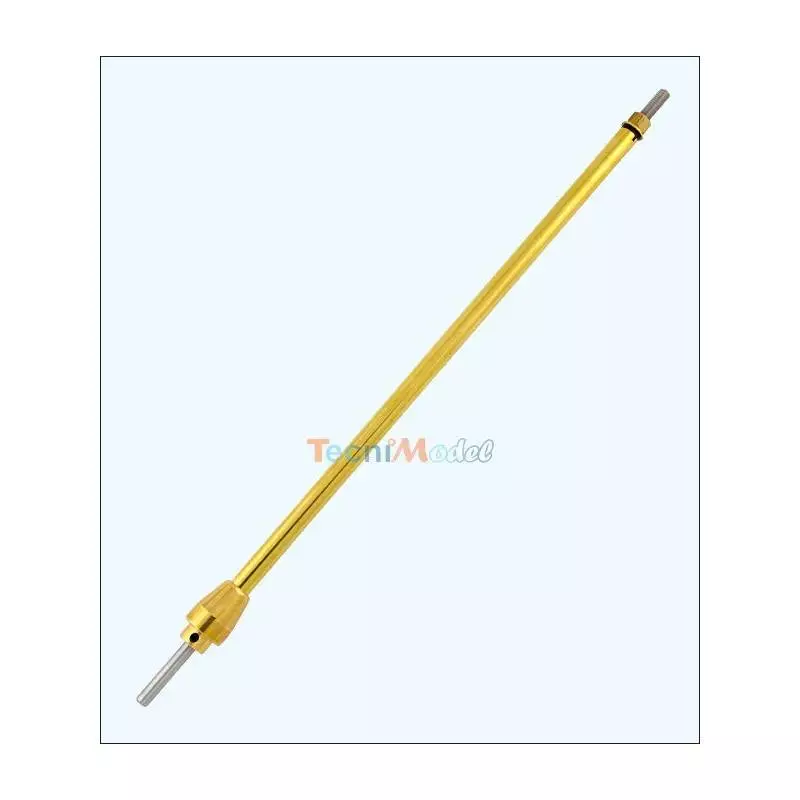

Propeller shaft Raboesch Ø4mm re-cuttable, sealed and maintenance-free, with lip seal.
Propeller shaft Raboesch Ø4mm, recuttable, sealed and maintenance-free, with lip seal.
Reference : PBRA30109
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM11
Maintenance-free, watertight Ø4mm propeller shaft, can be recut.
Ref Raboesch: 301-09
Ball bearing and lip seal at motor end of tube.
Delrin ring at tube end, propeller side.
Shaft diameter: Ø4mm, M4 propeller thread.
Shaft length: 450 mm
Tube length 395mm, diameter Ø8mm
Max. speed in water (do not run dry quickly) = 15,000rpm
This propeller shaft can be cut to any desired size.
Cut carefully and deburr (to avoid damaging the seal during assembly), then glue the cage to the tube.
We recommend UHU Plus "Endfest" glue for a strong bond.
| Shaft diameter | Ø4mm |
|---|---|
| Shaft length (mm) | 450 |
| Stern tube diameter | Ø8mm |
| Stern tube length (mm) | 395 |
| On bearing(s) | Yes |
| Recoupable | Yes |
| Thread | M4 |
Propeller_Shafts_301-07-10
Propeller shafts Raboesch 30107-30110
