Lifting system for Arocs 3348 Tamiya SandMaster SPIN3348
SandMaster SPIN3348: Trapezoidal screw lifting system on bearings for truck rc Tamiya Arocs 3348
Reference : PCSESPIN3348
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AH01
Lifting system for Arocs 3348 Tamiya
SandMaster SPIN 3348 ARO

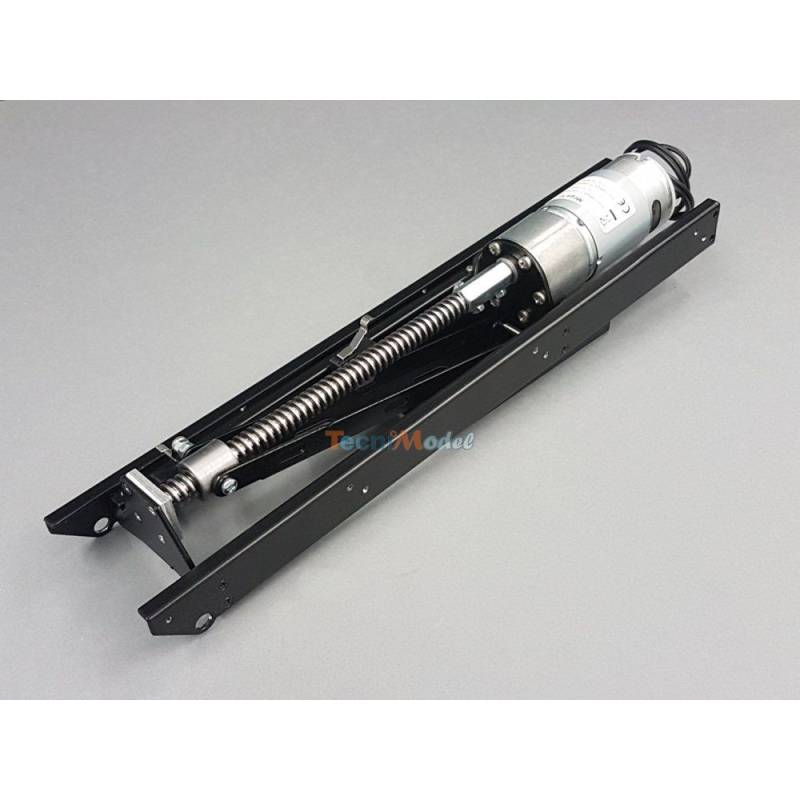

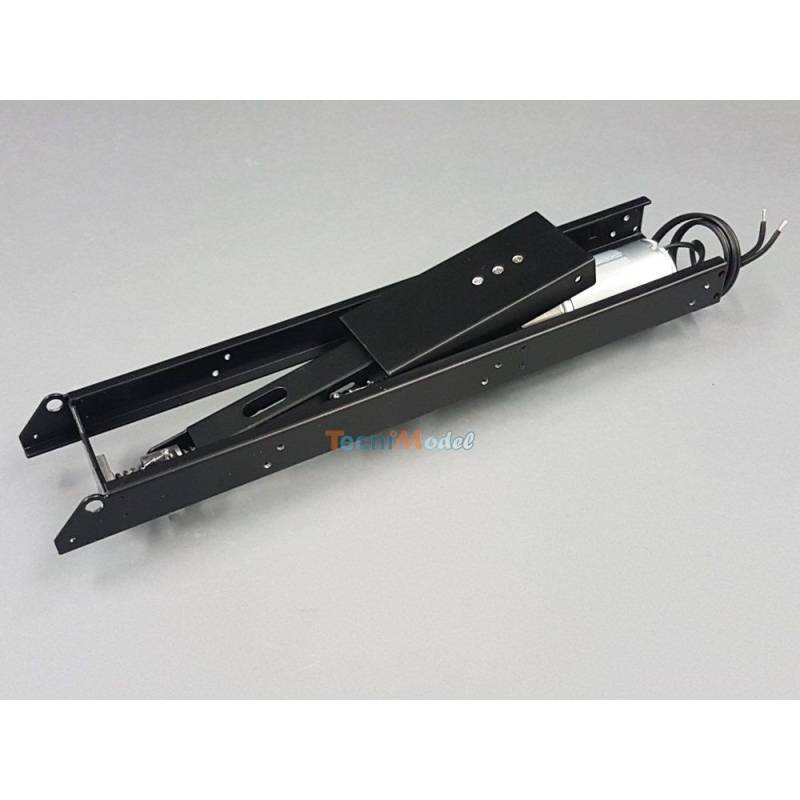

Screw lifting system for lifting the Tipper of the Arocs 3348 of Tamiya.
- Motor for power supply from 7.2v to 12v, pre-cabled with stroke ends.
- Trapezoidal screws on bearings
- Pre-assembled and wired
- Recommended speed drive: mf8 Servonaut
- Dimensions: Width 62mm, length 320mm
- Aluminum spars
- Black anodized spars and lifting bar
- Lifting speed in 7.2v: approx. 26s
- Lifting speed in 12v: approx. 16s
- Weight: 600g
- Lifting angle approx. 45°
- Notice translated into French by TECNIMODEL.

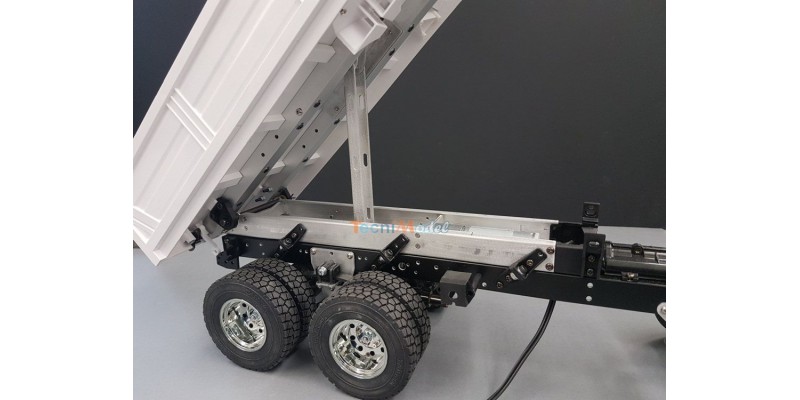

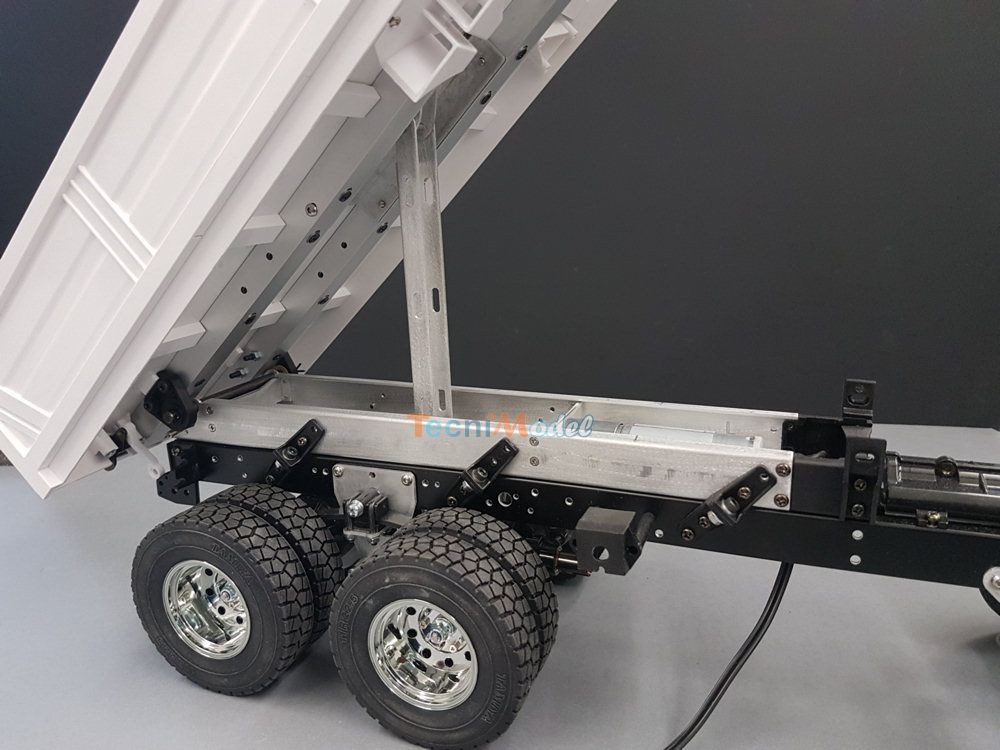

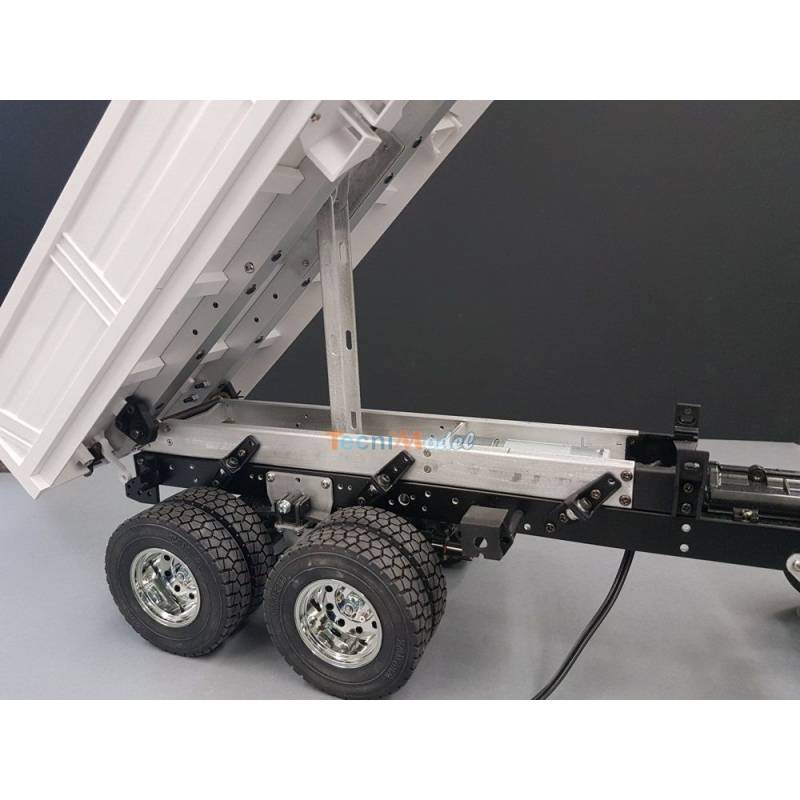

The photo shows the prototype version without the black anodizing:
