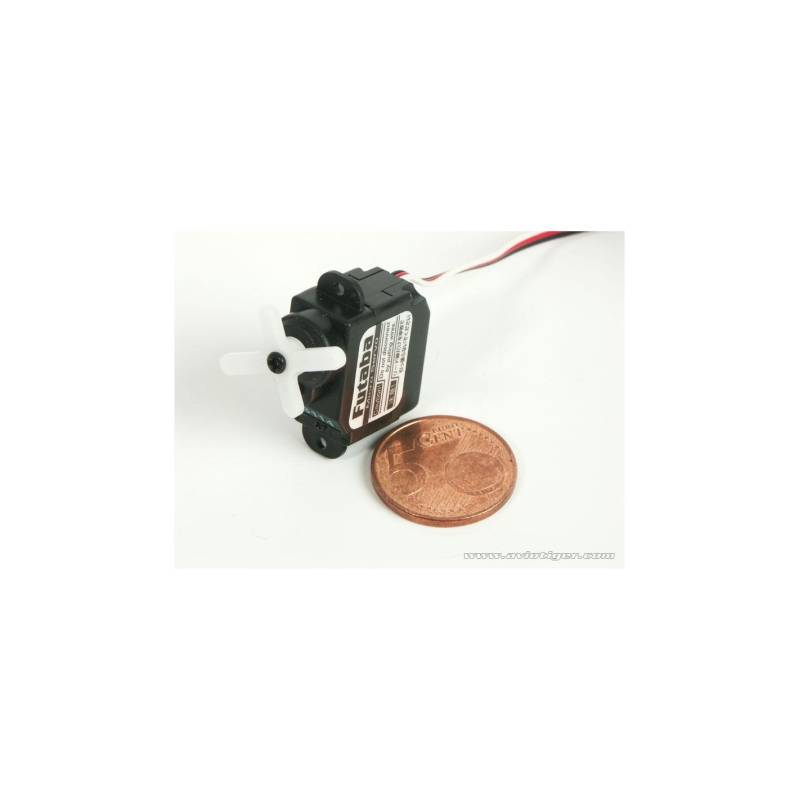

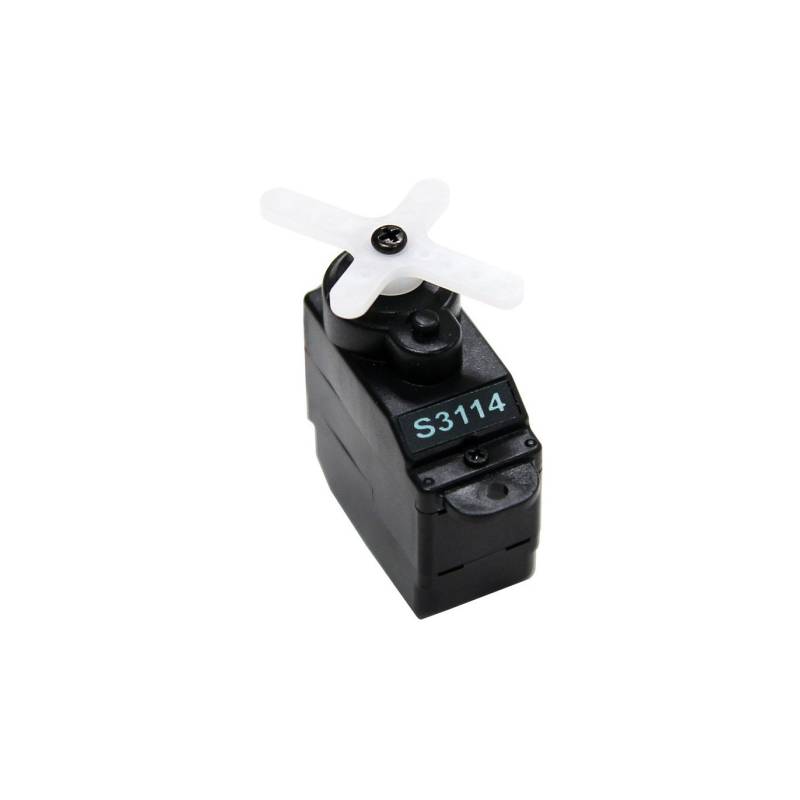

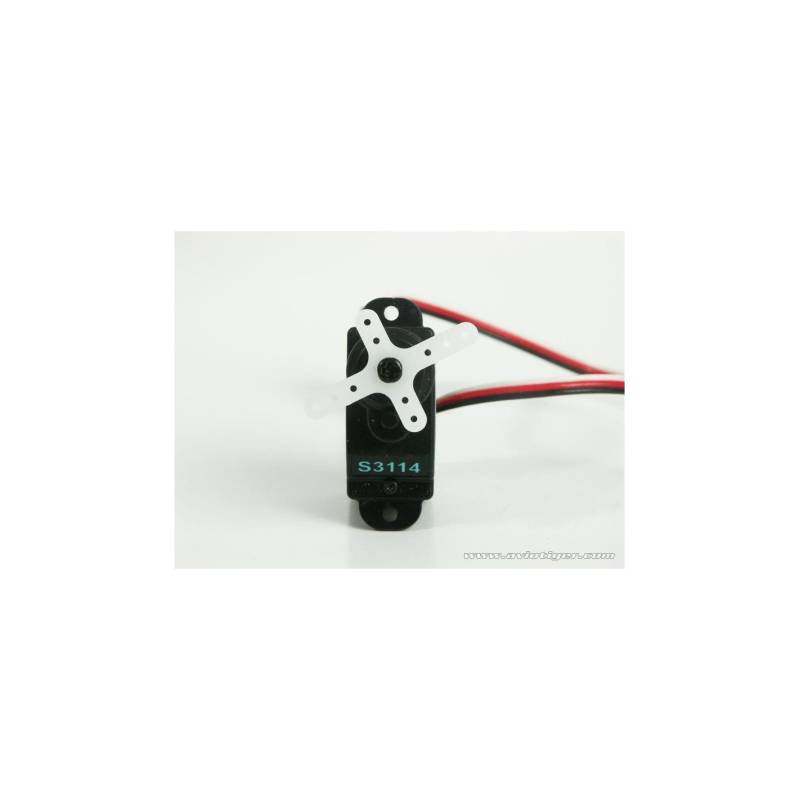

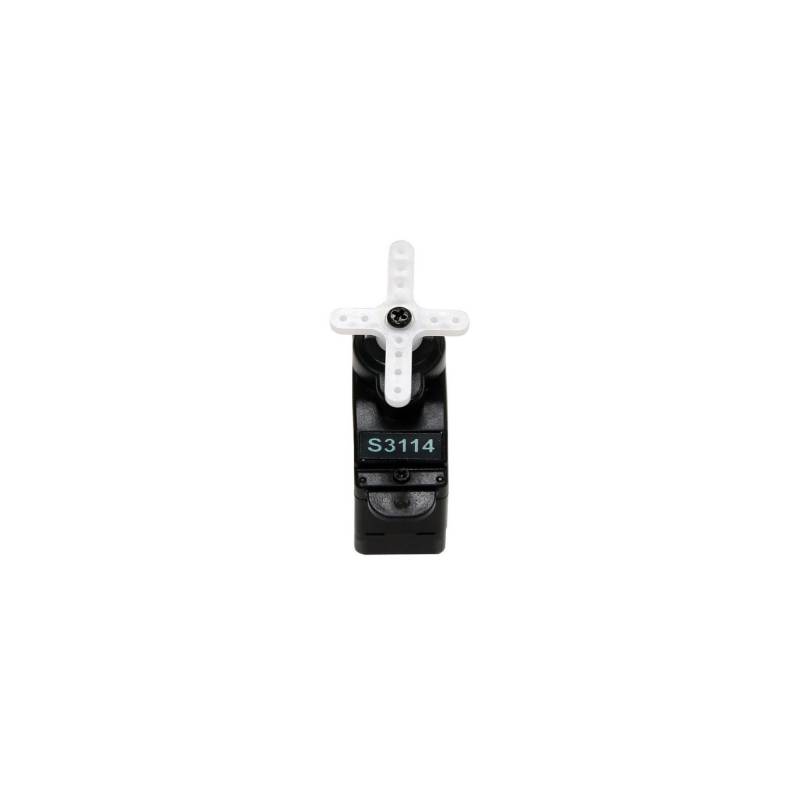

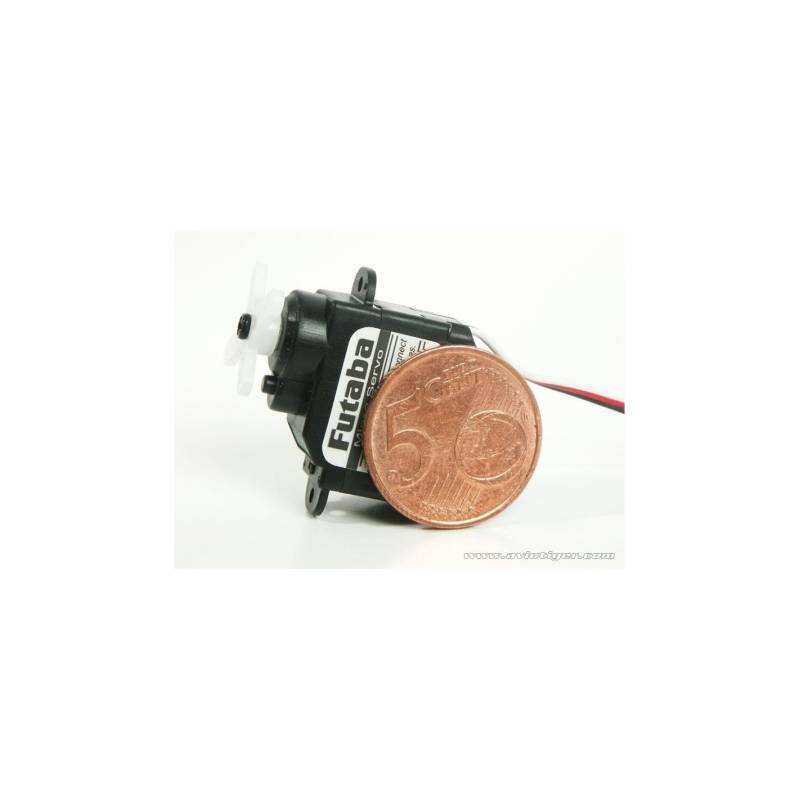

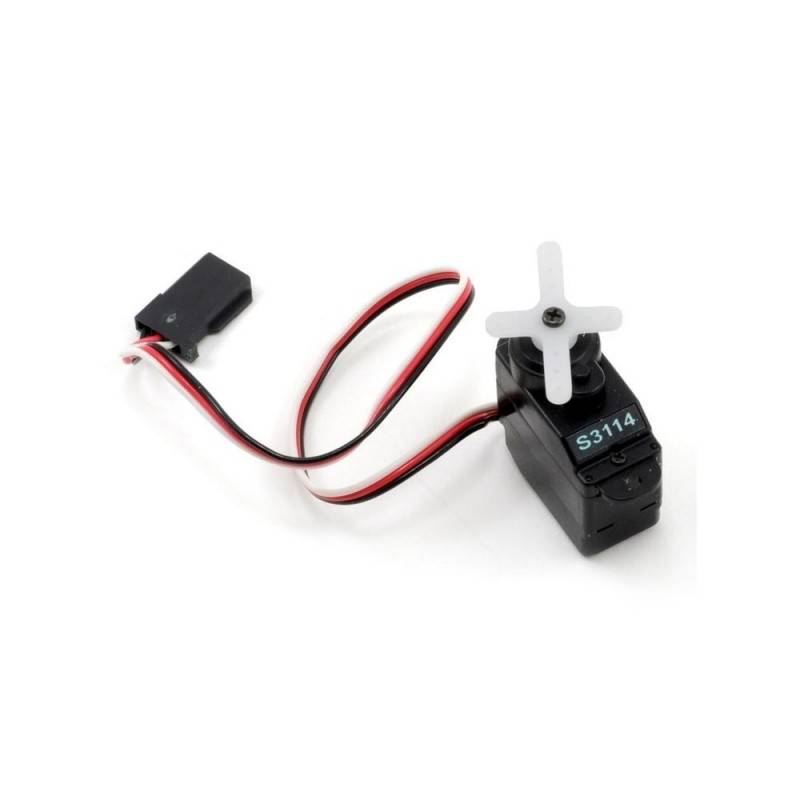

Futaba S3114 Nano Servo 17N.cm
Futaba S3114 Nano Servo 17N.cm. Small, fast servo in "nano" format, for installation in small models requiring space-saving servos.
Reference : RAFUS3114
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB03
Futaba S3114 Nano Servo 17N.cm
Futaba S3114
Small, fast servo in "nano" format, for installation in small models requiring space-saving servos.
The servo is supplied with two servo horn cross-arm.
Features :
- Travel speed at 4.8V: 0.10sec/60°
- Travel speed at 6V: 0.09sec/60°
- Torque at 4.8V: 1.5kg
- Torque at 6V: 1.7kg

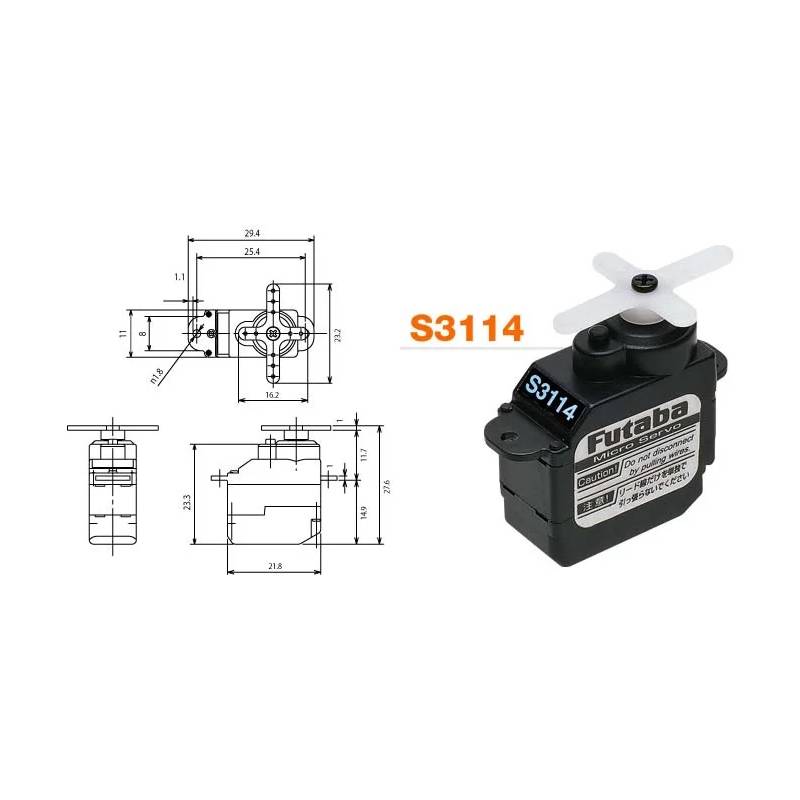

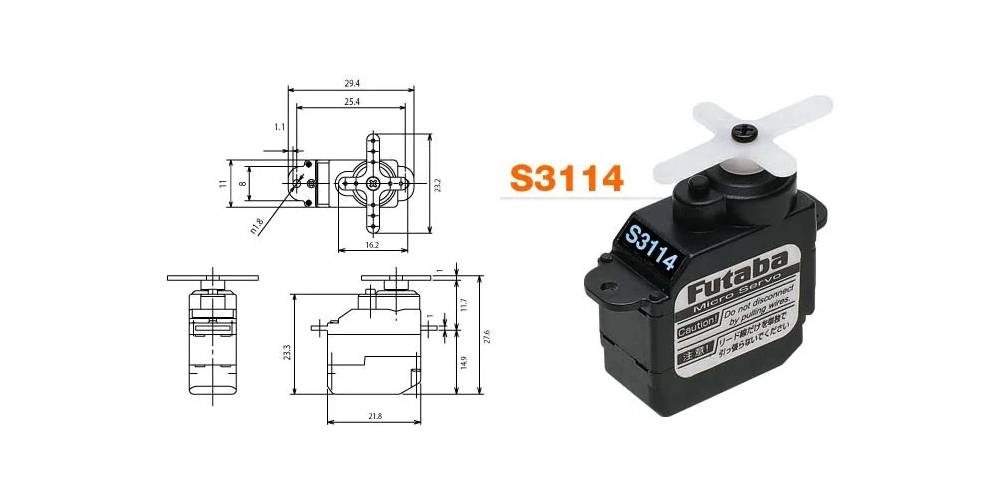

- Length: 21.8mm
- Width: 11mm
- Height: 19.8mm
- Distance between fixing points: 25.4mm
- Weight: 7.8g
