Wing servo Hitec HS-125MG extra-flat
The Hitec HS-125MG servo has the advantage of being extra-flat. This makes it ideal for models where space is at a premium. Moreover, it features all-metal gearing and its output is mounted on double ball bearings. These features make it a robust and compact servo.
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB07

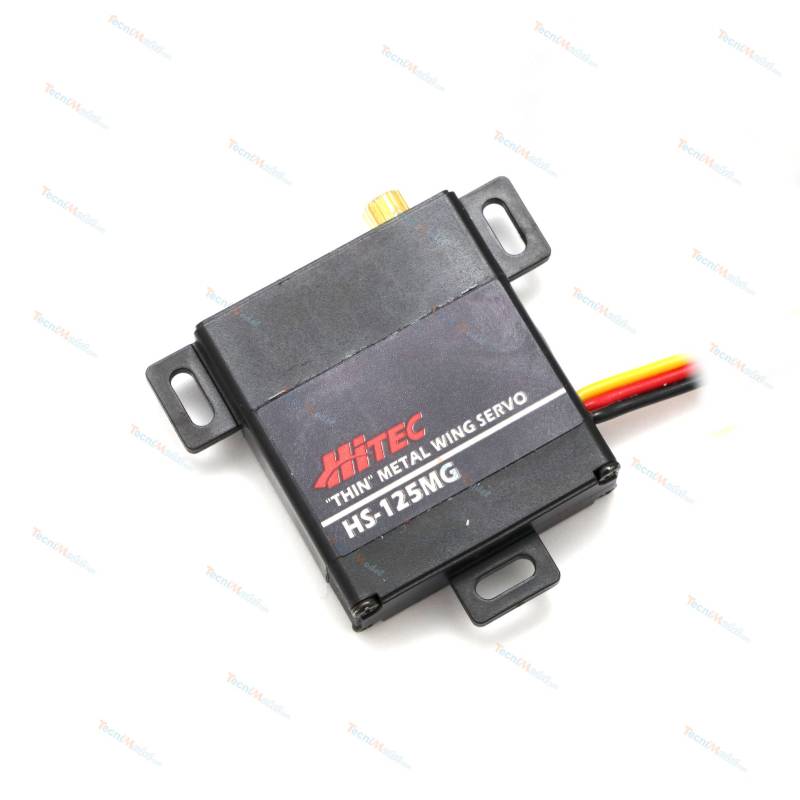

Wing servo Hitec HS-125MG extra-flat
Hitec 112125
The Hitec HS-125MG extra-flat wing servo has the particular advantage of being extra-flat. This servo is generally used in the wings of competition gliders. But it can be very useful in any model where space is at a premium. Moreover, it features all-metal gearing and its output is mounted on double ball bearings. These features make it a robust and compact servo.
Delivery: 1 hitec HS-125MG servo with accessories (mounting screws + servo horns + double-sided pads)
Features:
- Housing dimensions:
- Length: 33.8mm
- Width: 30.2mm
- Thickness: 10mm
- Overall dimensions:
- Length: 44.3mm
- Width: 42mm
- Thickness: 10.2mm
- Motor type: Brush motor
- Encoder: Potentiometer
- Waterproof: No
- Communication: PWM
- Servo type: Analog
- Maximum voltage: 6V
- Maximum torque: 3.5kg/cm
- Max. speed: 0.13s/60
- Gears: Metal
- Ball bearing: Yes (double)
- Horn mounting: 25-tooth
- Cord length: 30cm (approx.)
- Plug type: JR/Graupner
- Weight: 24grs
- Hitec Servo Series: HS-Series4
| Manufacturer | Hitec |
|---|
