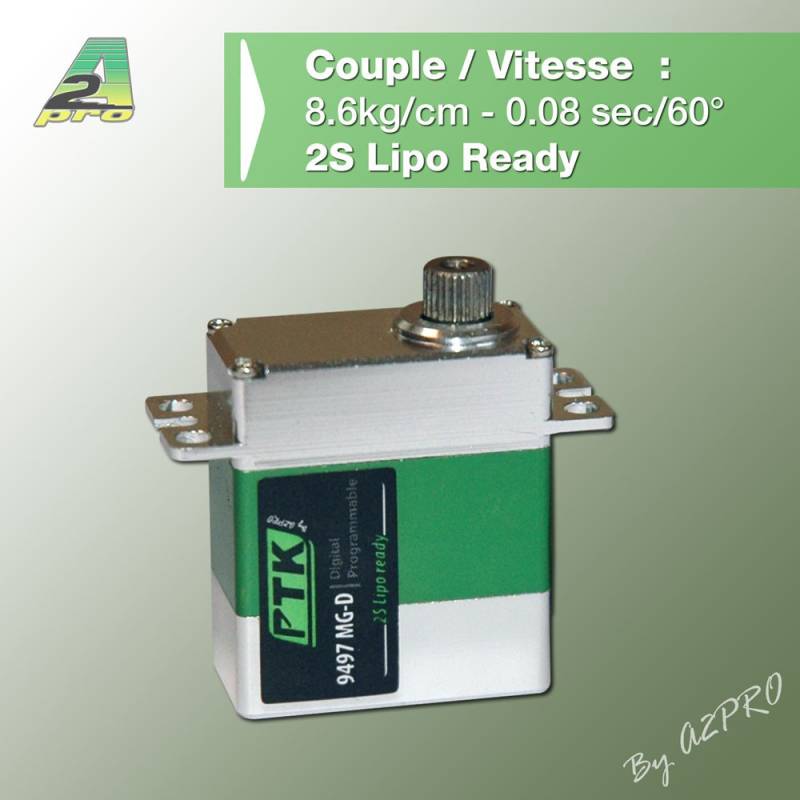

ProTronik 9497 MG-D Digital Coreless Micro Servo 8.6 Kg.cm (7.4v)
Digital Coreless Micro Servo 9497 MG-D 8.6 Kg.cm (7.4v).
Reference : RAAP79497
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB08
Digital Coreless Micro Servo 9497 MG-D 8.6 Kg.cm (7.4v)
A2pro 79497
Ultra-high-end servo specially developed for use in gliders or any other application requiring power, precision and reliability.
The 9497 MG-D is the most powerful servo in its class on the market.
Everything about this servo has been designed to offer the best performance.
Its slim design allows it to be mounted in composite glider wings.
High-quality electronics, potentiometer and motor.
Metal gears mounted on two ball bearings for robustness, precision and reliability.
-> Digital
-> "2S Lipo Ready": optimized performance whether 4.8V, 6V or 7.4V. The HV for everyone!
Technical specifications :
- Sprockets: METAL
- Bearings : YES 2
- Motor: Coreless
- Weight: 19.2g / 0.68oz
- Dimensions: 22.9 x 26 x 11.9 mm
- Torque/Speed at 4.8V: 5.4kg/cm - 0.11s/60° Torque/Speed at
- Torque / Speed at 6.0V: 6.8kg/cm - 0.09s/60°
- Torque / Speed under 7.4V: 8.6kg/cm - 0.08s/60°
- Operating voltage: 4.8V - 8.4V
- Cord: 225mm
- Compatibility: universal connectors
- Dead band: 1µs
