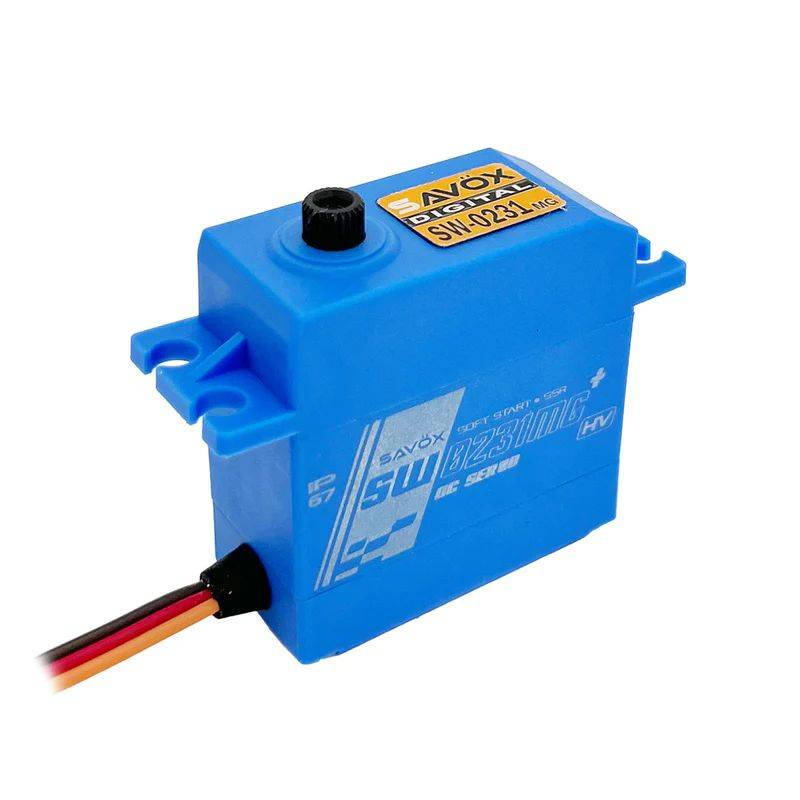

SAVÖX SW-0231MGP

IP67 waterproof servo, on bearing, with metal gears, torque 25Kg.cm.

New: the + series advantages

• Soft start
• SSR mode compatible Sanwa
• New-generation, more durable coreless motor
• 8.4V power supply available for HV servos

Features :

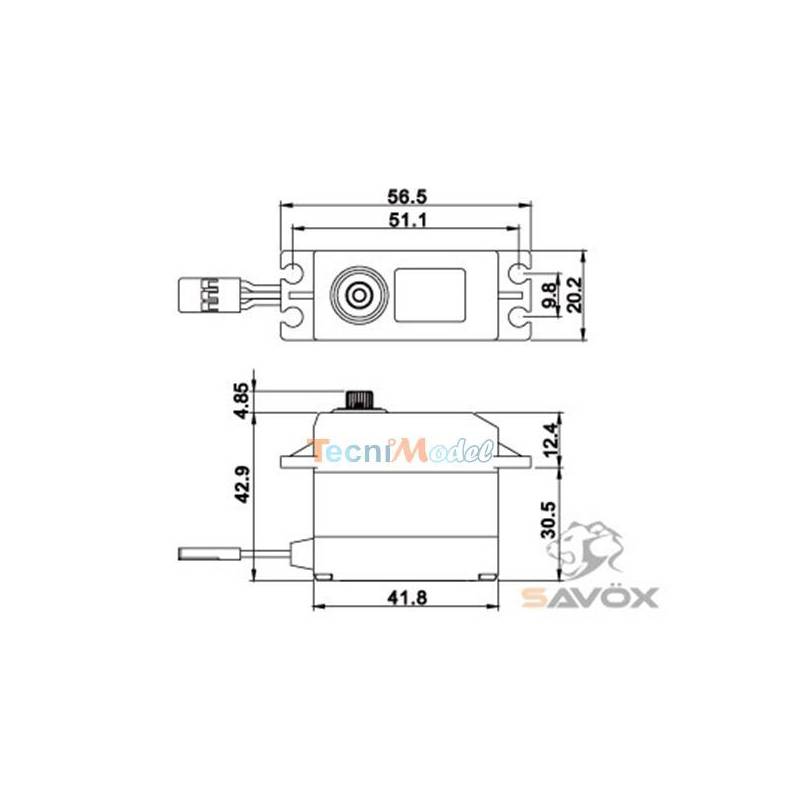

• Dimensions: 41.8x20.2x42.9mm
• Torque at 6V: 15kg.cm / 208.3oz-in
• 7.4V torque: 25kg-cm / 347.2oz-in
• Speed at 6V: 0.17 sec / 60deg
• Speed at 7.4V: 0.15 sec / 60deg
• Weight: 66g
• Operating temperature range: -10° to 50°C (14° - 122°F)
• No-load consumption: 100mA @ 4.8V - 120mA @ 6.0V
• Power consumption at standstill: 3800mA @ 4.8V - 4800mA @ 6.0V
• Consumption at standstill: 5mA @ 4.8V - 5mA @ 6.0V
• Wire length: approx. 200mm
• Output shaft : 25 teeth (Futaba)
• Bearings : 2 ball bearings
• Deflection: 100° (1000 → 2000 µs)
• Neutral position : 1500 µs
• Maximum travel: Approx. 130° (900 → 2100 µs)
• Pulse width range: 800 → 2200 µs
• Refresh rate: 240Hz
• Motor: Brushed
