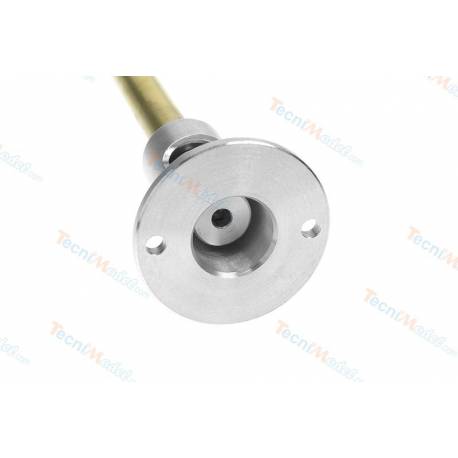

190mm M4 propeller shaft with tube and motor support for 500/600 class
190mm M4 propeller shaft with tube and motor support for 500/600 class
Reference : ACMP52172
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM10
190mm M4 propeller shaft with tube and motor support for 500/600 class
GForce GF-4022-002

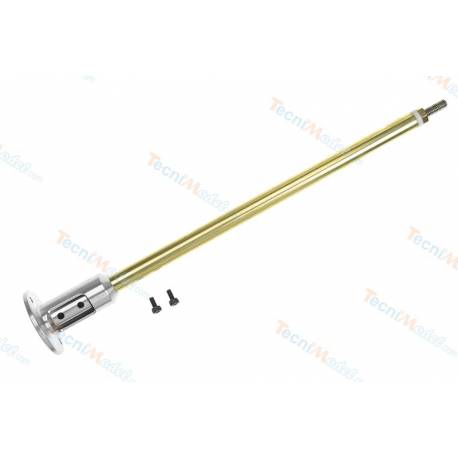

Delivery includes: 1 propeller shaft with stern tube; rigid coupling; motor support; 2 CHC M3x5 screws (for motor mounting).
Features:
- Thread for propeller: M4 x 10mm
- Length from motor to propeller: 190mm
- Stern tube diameter: Ø8mm
- Stern tube length: 165mm
- Motor support length: 36mm
- Total length: 205mm
- Motor mounting screw center distance: 25mm
- Rigid shaft coupling: Ø3.2mm
| Shaft diameter | Coupling included |
|---|---|
| Shaft length (mm) | 190 |
| Stern tube diameter | Ø8mm |
| Stern tube length (mm) | 150 |
| Diameter Coupling | Ø3.2mm |
| Thread | M4 |
