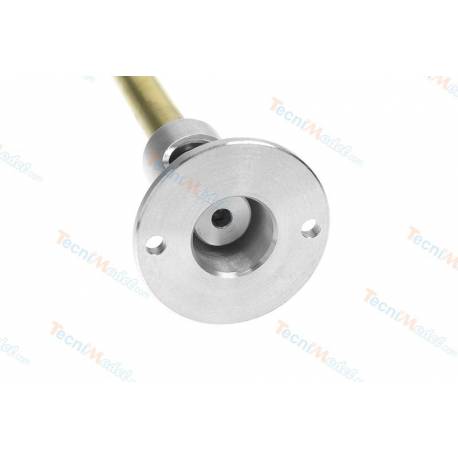

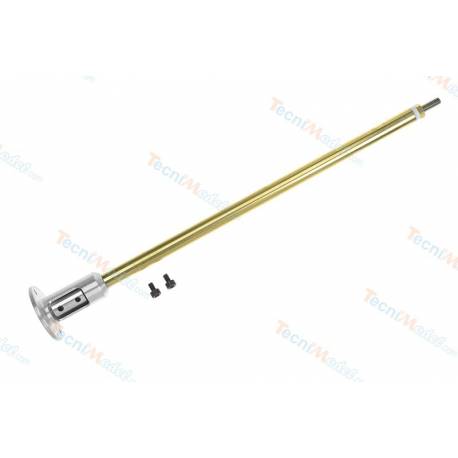

220mm M4 propeller shaft with 184mm Ø8mm tube and motor support for 500/600 class
220mm M4 propeller shaft with 184mm Ø8mm tube and motor support for 500/600 class
Reference : ACMP52173
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM10
220mm M4 propeller shaft with 184mm Ø8mm tube and motor support for 500/600 class
Delivery includes: 1 propeller shaft with stern tube, rigid coupling, motor mount, 2 TCHC M3x5 screws for motor mounting.
Features :
- Thread for propeller: M4x11mm
- Length from motor to propeller: 223mm
- Stern tube diameter: Ø8mm
- Stern tube length: 184mm
- Motor support length: 36mm
- Total length: 235mm
- Motor mounting screw center distance: 25mm
- Rigid coupling for motor shaft: Ø3.2mm
| Shaft diameter | Coupling included Ø4mm |
|---|---|
| Shaft length (mm) | 220 |
| Stern tube diameter | Ø8mm |
| Stern tube length (mm) | 184 |
| Diameter Coupling | Ø3.2mm |
| Thread | M4 |
