188mm M3 propeller shaft with tube and motor support for Class 400
188mm M3 propeller shaft with tube and motor support for class 380/400/480
Reference : ACMP52152
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AM10
188mm M3 propeller shaft with tube and motor support for Class 400

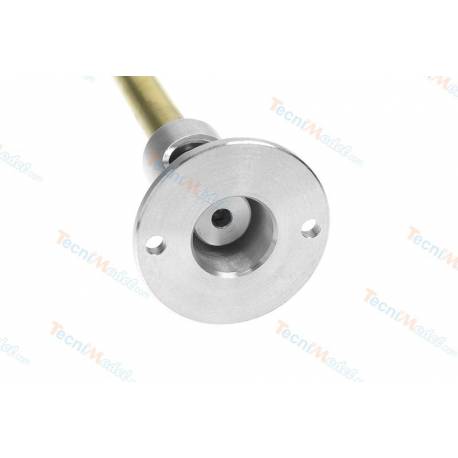

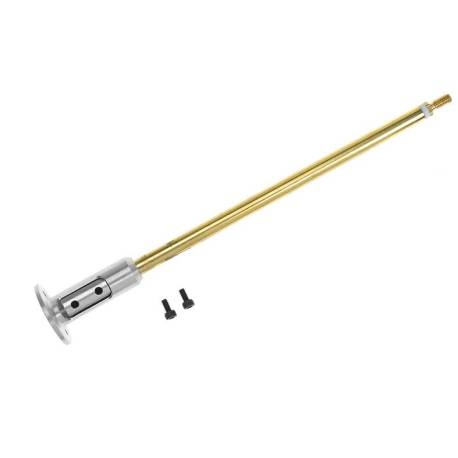

Delivery includes: 1 propeller shaft with stern tube; rigid coupling; motor mount; 2 TCHC screws (for motor mounting).
Dimensions suitable for class 380/400/480 motors.
Features:
- Thread for propeller: M3
- Length from motor to propeller: 188mm
- Stern tube diameter: Ø6mm
- Stern tube length: 138mm
- Motor support length: 36mm
- Total length: 167mm
- Motor mounting screw center distance: 16mm
- Rigid shaft coupling: Ø2.3mm
| Shaft diameter | Coupling included |
|---|---|
| Shaft length (mm) | 188 |
| Stern tube diameter | Ø6mm |
| Stern tube length (mm) | 138 |
| Diameter Coupling | Ø2.3mm |
| Thread | M3 |
