SMB Ref Servonaut SMB Sound Module

Special for models of radio controlled shovels.

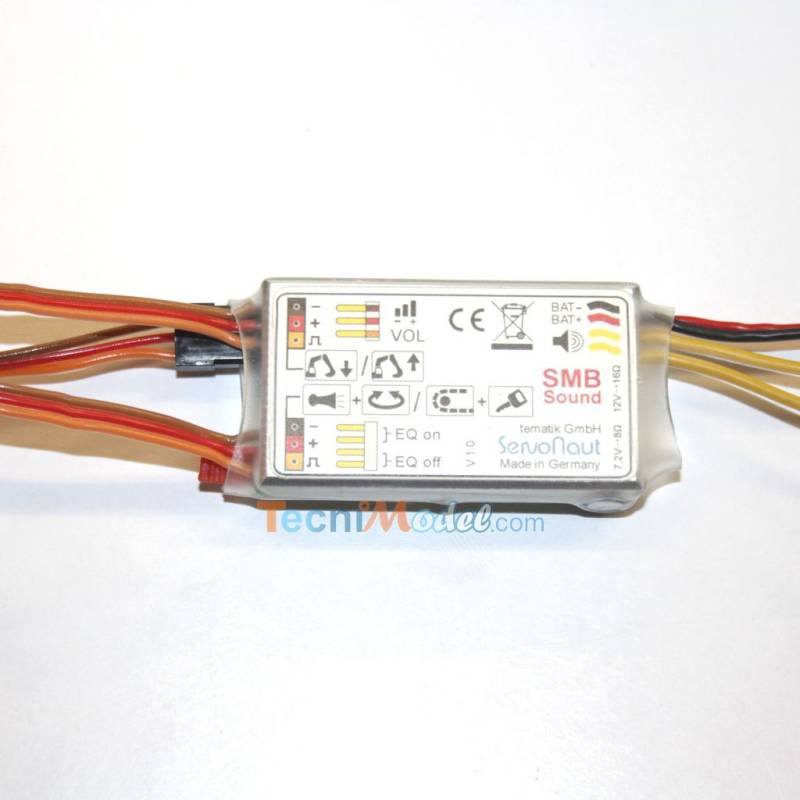

The SMB Servonaut sound module is specially designed for the sound system of radio controlled excavators.

It features Sheave digitized sounds, which are triggered realistically according to the movements of the excavator.

Important note: this module requires advanced programming (mixing on all channels) of the radio controller to be able to control both channels of the sound module appropriately. Radios such as the Servonaut Hs12, Brixelektronik or ScaleArt "Commander" are compatible, as well as taranis radios configured by TECNIMODEL. Verify that your radio allows this type of configuration!

Characteristics:

• Original excavator sounds
• Dynamic activation of sounds
• Horn
• Engine start noise
• Lanea noise
• Turret rotation noise
• Hydraulic sound effects
• Automatic activation of engine speed sound change
• The rotational sound of turrets, tracks, engine start and horn is done on one track. Hydraulic noise on another track.
• 2 free channels on the receiver are needed
• Power supply from 7.2v to 12v
• Speaker required: 8 Ohms required for a voltage of 7.2v, speaker of 16 Ohms from 10v.
• Power: 3 W in 8 Ohm (7.2v) ; 2 W in 16 Ohm (12v)
• Dimensions: 55 x 28 x 13 mm
• Notice in French made by TECNIMODEL.

For optimal results, it is recommended to use the Sevonaut DC72 voltage converter to power the SMB sound module if the battery voltage is greater than 7.2v-7.4v (see "accessories" on this page).

Note for radio users fr-sky Taranis:

For the connection of the SMB Servonaut sound module, it is possible to add the SBD fr-sky module (S-Bus Decoder) to add the necessary additional channels on an X8R receiver, for the control of the sound module.
