Brass bevel gear set 15t/45t, module M0.5
Brass bevel gear set 15t/45t, module M0.5
Reference : ACVE237280
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AD05
Brass bevel gear set 15t/45t, module M0.5
VEROMA 237280

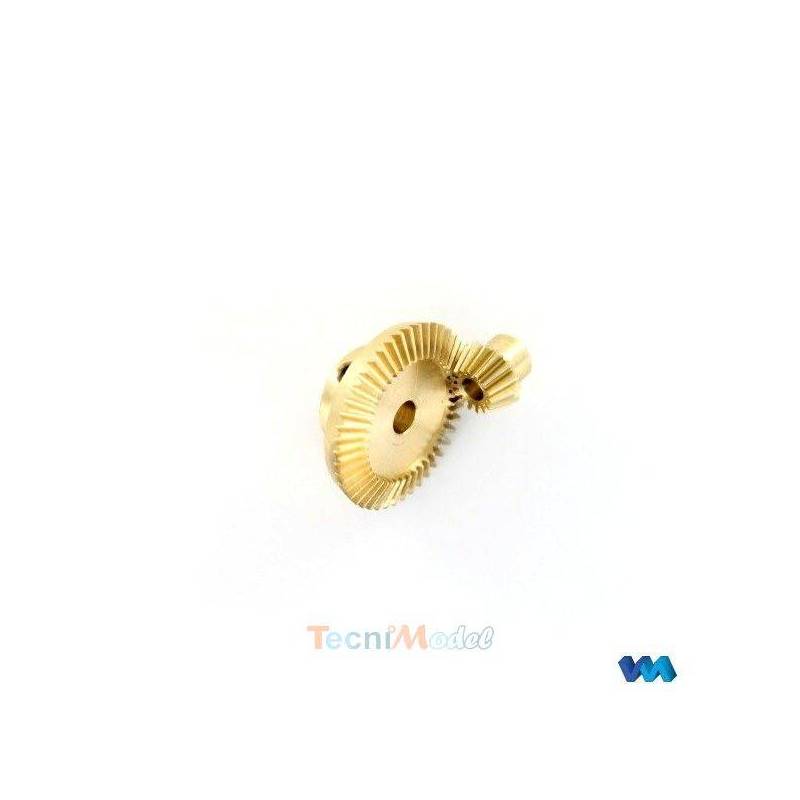

Pair of 15/45-tooth bevel gears, module 0.5, made of brass.
Ratio of 3:1.
15-tooth bevel gear with a Ø3mm bore and an M2 screw for mounting on the shaft.
45-tooth bevel gear with a Ø4mm bore and an M3 screw for mounting on the shaft.
Diameters: 15 teeth: Ø8.9mm / 45 teeth: Ø22.7mm
For 90° mounting.
Contents: 1 15-tooth bevel gear, 1 45-tooth bevel gear, and the necessary hardware for installation.
Requires a 1.5mm and 0.9mm hex key (see the “Accessories” section below).
| Material | Brass |
|---|
