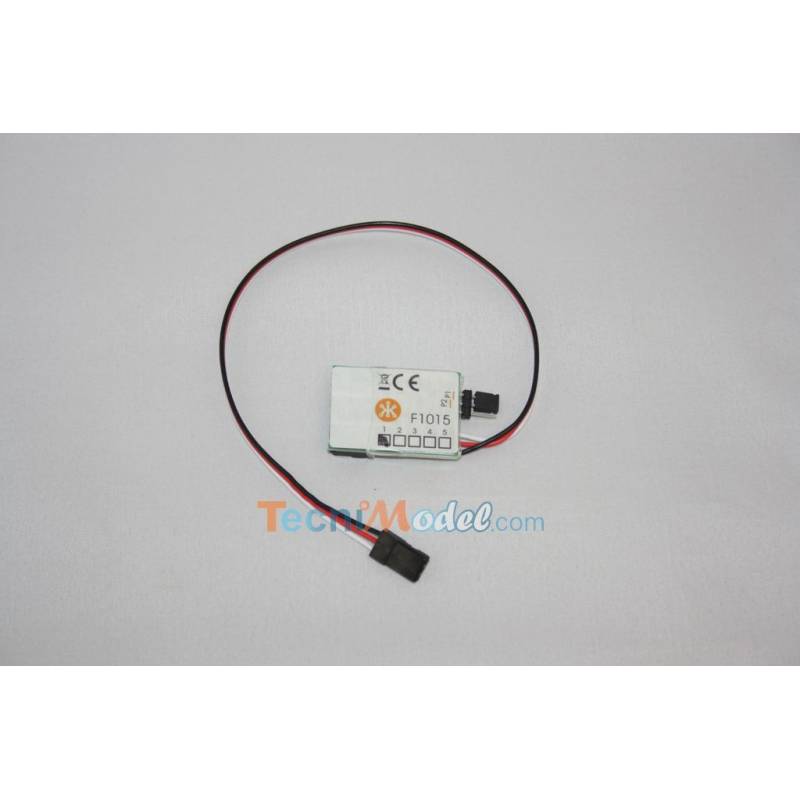

Control plate 2 lights Kotronik F1015
Ref F1015-2
Additional module for the radio controlled truck Kotronik system.
It necessarily requires a control unit Kotronik F1010.
This module allows you to add LEDs on the Kotronik light system.
There are several F1015 modules whose outputs are activated differently depending on the models, depending on the lighting controls.
On the F1015-2: The S1 output activates when the right turn signal is turned on. The S2 output activates when the left turn signal is lit.
| F1015 | F1015-1 | F1015-2 | F1015-3 | F1015-4 | F1015-5 |
| Function 1 | lighthouse | clockwise flashing | night light | TO 2 | night light |
| Function 2 | night light | left turn signal | TO 2 | Lg Scope | Stop |
| Function 2 (bis) | night light/code | nothing | nothing | night light / LP | night light/stop |
Toolless cabling
The wiring of the turntables is done with standard servo extension cords.
Allows to power live a power supply led L0001.
The wiring of the LEDs is done by simply inserting the bare wire into the connectors of the plates, a resistor must be inserted into the wiring for the LEDs. LED and resistor kits are available for the most common vehicles (crawler, Volvo, Mercedes SK, King hauleur ...).
The power supply is external to be used from 6V to 12V.
Output current: 3A per channel.
