Tamiya 1/14 RC Truck Kit Knight Hauler 56314

Tamiya 1/14 RC Truck Kit Knight Hauler

Tamiya 56314

Radio controlled truck kit, to assemble and paint.

This superb replica of a truck typical of American roads is, like other radio controlled trucks Tamiya the range, compatible with trailers Tamiya and Carson and can be equipped with the optional module "MFU" (ref Tamiya 56511) which allows the operation of lighting, sound, a vibrator and integrates the variable speed drive.

The chassis of this rc truck, 600mm long, has 3 axles, a very faithfully detailed cab, a realistic chassis equipped with suspensions, and a 3-speed gearbox.

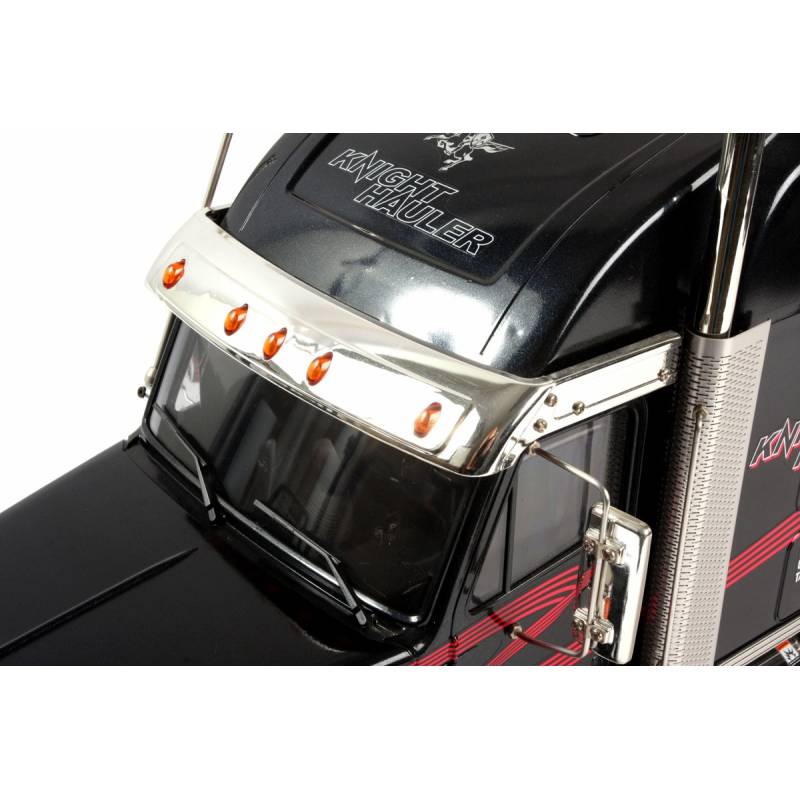

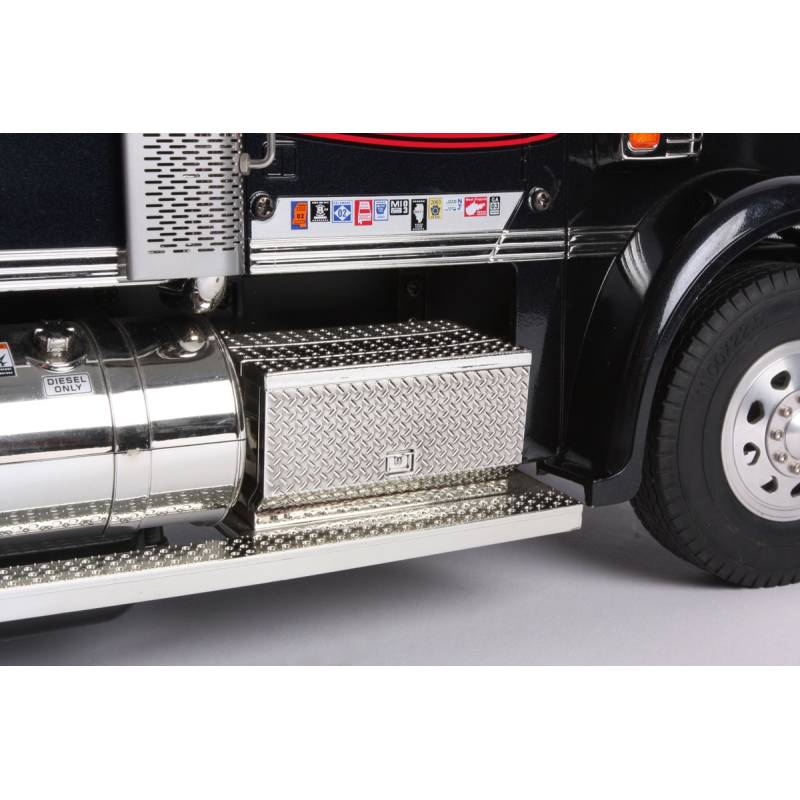

The majority of the body details are reproduced, bringing a remarkable realism of the model, such as retros, foot steps, grille, headlights, etc ...

Features:

• 1/14 Radio-controlled truck model assembly kit
• Ladder frame chassis features aluminum profiles and plastic cross-members.
• Fifth wheel compatible with all trailers Tamiya and Carson
• 3-speed transmission (use of a 4-channel radio or more enables shifting on the move)
• Front & rear suspension with leaf springs and spring shock absorbers
• Floating front axle and suspended rear axles with differentials
• Articulated central driveshaft reduces power loss through friction, type 540 motor included
• Injection-molded ABS bodywork

Equipment to be purchased separately:

• Minimum 4-channel (or better) radio control system
• 7.2V battery
• Electronic Speed Controller (or Tamiya Multifonction Unit MFC-03)
• 2 servo
• Battery charger and charging leads

See example configuration in the "Start pack" topic

Download link of the assembly manual, click here.
