2 Turnbuckles M3 x 33/49 - slotted end with left-hand thread

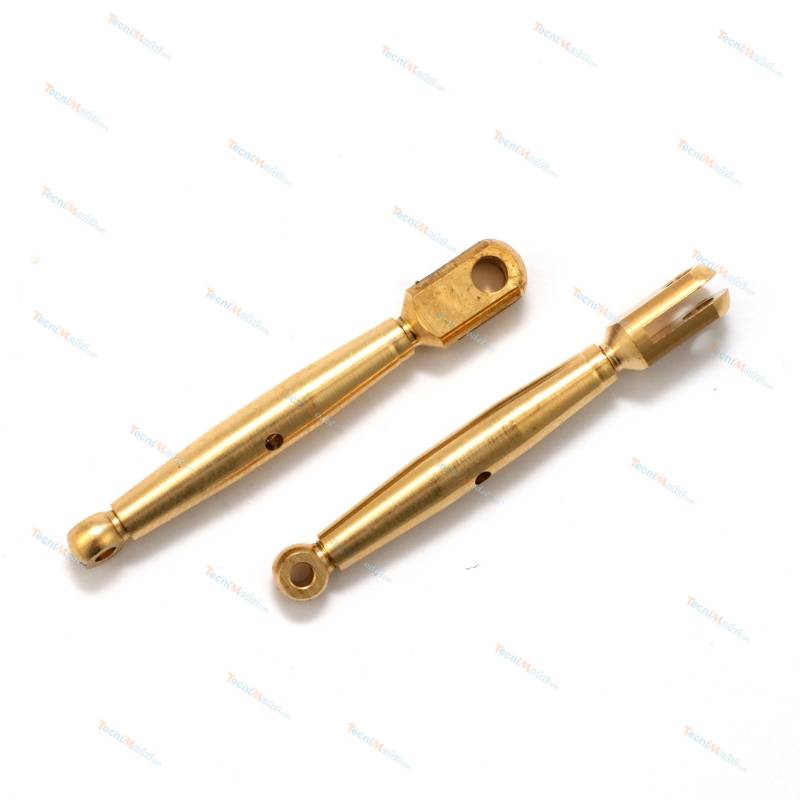

Set of two turnbuckles in brass with ring and split ends. A groove engraved on the body of each turnbuckle identifies the left-hand thread side.
Reference : ACMP60253
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AQ08
2 Turnbuckles M3 x 33/49 - slotted end with left-hand thread
Set of two turnbuckles in brass with ring and slotted ends. A ridge engraved on the body of each turnbuckle identifies the left-hand thread side. Ends and shafts are available as accessories for this item, to modify your turnbuckles and create all types of assembly.
Delivery: 2 turnbuckles brass with one ring and one slot end.
Features:
- Material: Brass
- Body diameter: 4.5 mm
- Body length: 22 mm (short body)
- Total open length: 49 mm
- Closed centre distance: 33 mm
- Open axis: 43 mm
- Ring tip hole: Ø 2 mm
- Slot end hole : Ø 3 mm
- End cap thread: M3
- Ring end thread: right-hand pitch
- Slot end thread: left-hand pitch
| Thread | M3 |
|---|---|
| Nozzle type | Ring Split |
