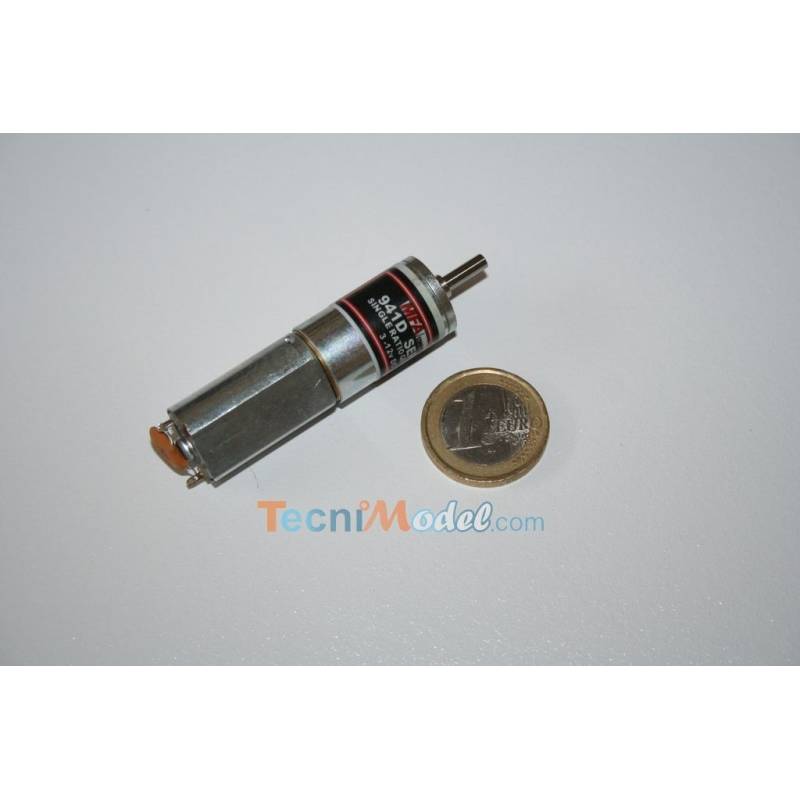

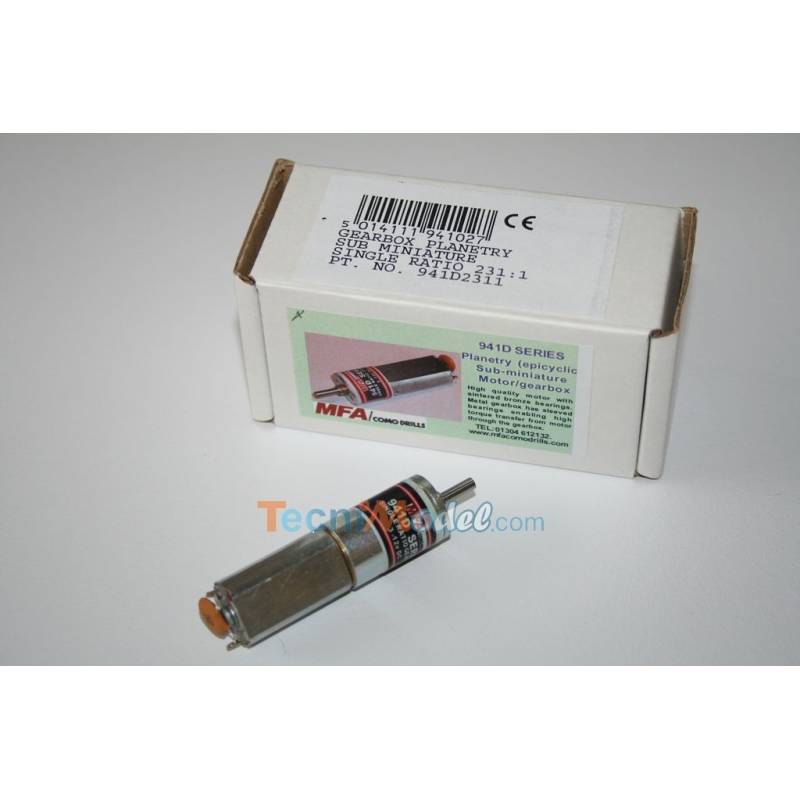

Ø16mm 231:1 geared motor with epicycloidal train
Ø16mm 231:1 geared motor with epicycloidal train
Reference : RDMF941D2311
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA04
Ø16mm 231:1 geared motor with epicycloidal train
Ref MFA: 941D2311
Discount 231:1

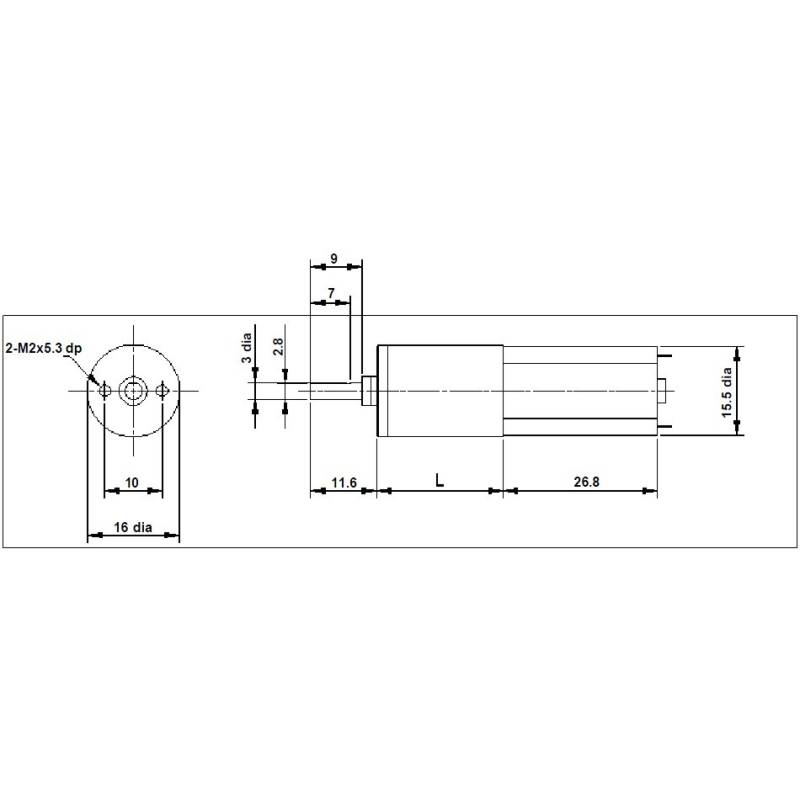

Shaft diameter 3mm
Outer diameter: 16mm
Reduction case length L=22.2 mm
Weight: 49g
Information about the electric motor:
| Empty | At maximum yield | ||||||||
| Voltage range | Nominal voltage | speed (rpm) | Conso (mA) | speed (rpm) | Conso (mA) | torque (g/cm) | Power (W) | Yield | Blocking torque (g.cm) |
| 1.5 - 12.0 | 12.0v CONSTANT | 8000s | 19 | 5881 | 70 | 8.68 | 0.5 | 63.26 | 26 |
Speed table (rpm)
| 3v | 6v | 9v | 12v |
| 5 | 14 | 23 | 32 |
941d
Description 941D
