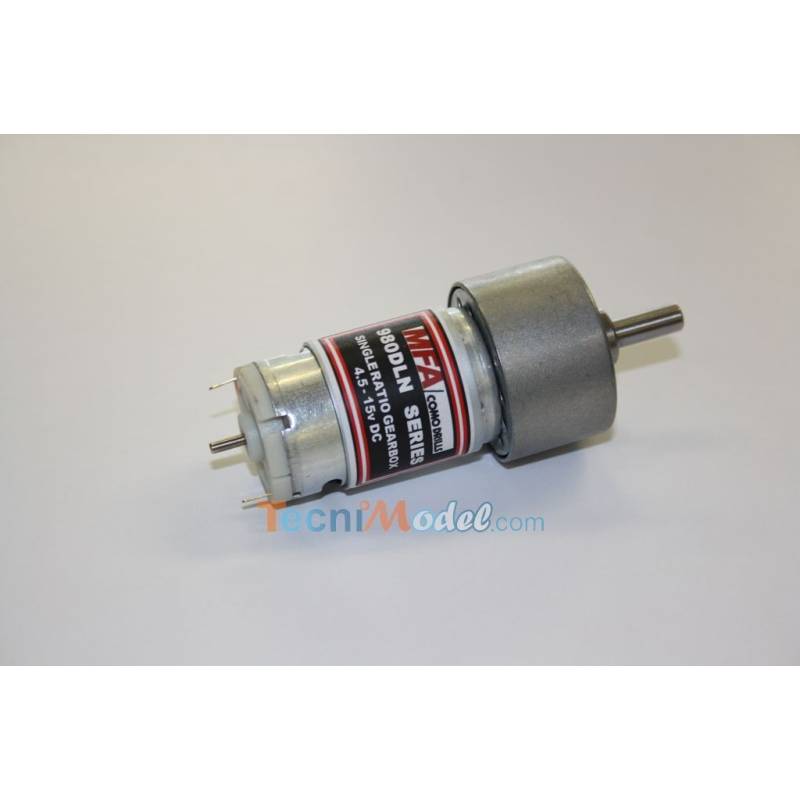

385 5 pole 47:1 gearbox with axial output MFA
Motor-reducer 385 5 poles with axial output MFA 980DLN. 47:1 discount
Reference : RDMF980D471LN
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA04
Gear motor 385 5 poles with axial output
Ref 980D471LN
This new generation of gear-reducing motorcycles is equipped with 385 type 5-pole engines which gives them a much greater torque (about 45% more than the standard engine) as well as a clear reduction in the operating noise of the engine.
The output of the Ø6mm shaft is in the axis.
These gearboxes are available in the following discounts:
6:1 - 16:1 - 47:1 - 156:1
Make the choice of the desired reduction in the list above.
See the attached document ("download" tab above) for technical information.
Engine information:
| Empty | At maximum yield | ||||||||
| Voltage range | Nominal voltage | speed (rpm) | Conso (A) | speed (rpm) | Conso (A) | torque (g/cm) | Power (W) | Yield (%) | Blocking torque |
| 4.5v 12v | 12v CONSTANT | 7300 | 0,15 | 6031 | 0,84 | 114 | 7 | 71 | 788 |
Table of output speeds (in rpm, ) as a function of the alimantation voltage:
| 4.5v | 6v | 9v | 12v | |
| 980D471LN | 56 | 76 | 115 | 156 |
980DLN.pdf
Documentation gearmotors 980DLN
