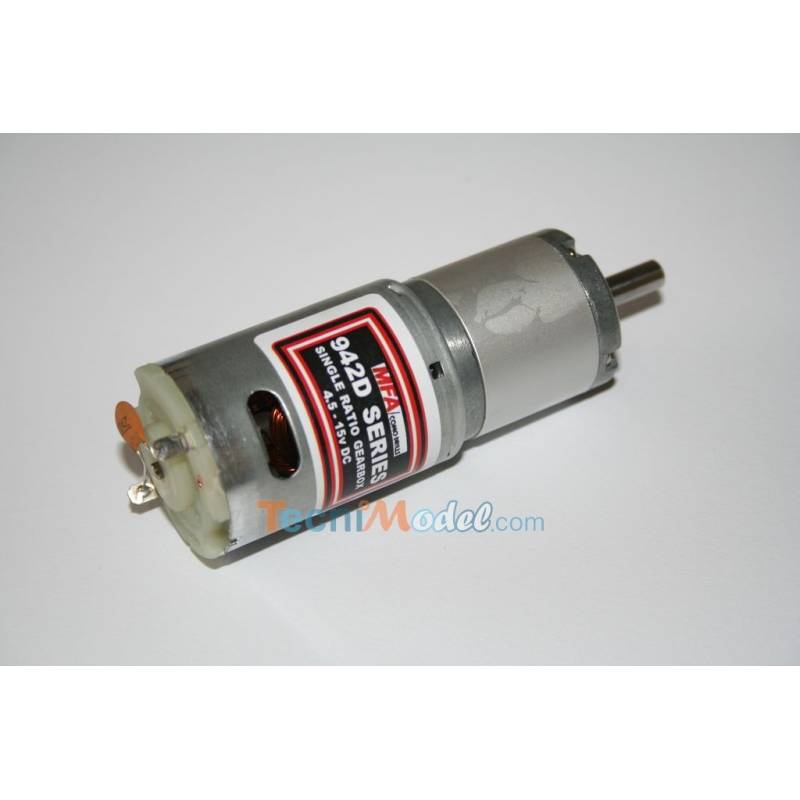

540 51:1 gear motor with epicycloidal train
540 51:1 gear motor with epicycloidal train
Ref MFA: 942D511
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AA13
540 51:1 gear motor with epicycloidal train
Ref MFA: 942D511
Discount 51:1

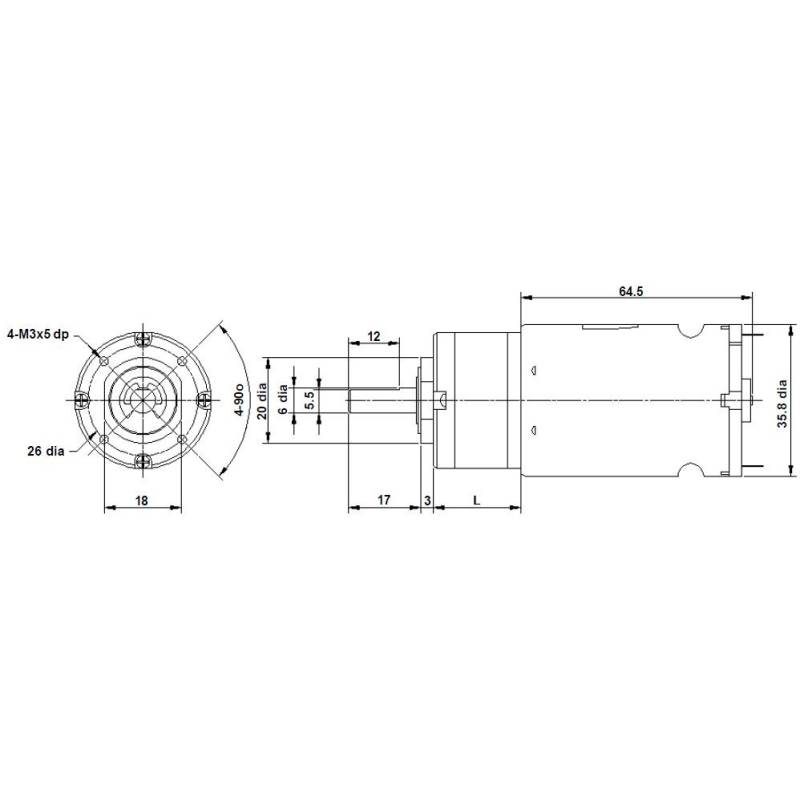

6mm shaft
Weight: 306g
Advantages of planetary reducers:
- Efficiency: The efficiency of planetary gearboxes can be greater than 90%, while other types of transmission can be at 50% or less. This allows the use of small engines.
- Size: Planetary gearboxes can be half the size of conventional gearboxes.
- Weight: weight gain can reach 60%, which allows smaller and lighter support structures.
- Coaxial configuration: The coaxial configuration of the input and output shafts allows for easier installation.
Engine information type 540/1:
| Voltage | Empty | Loaded at maximum efficiency | |||||||
| range of use | speed | conso | speed | conso | Torque (g/cm) | power (W) | Yield (%) | Blocking torque (g/cm) | |
| 4.5 - 15.0 | 6.0v CONSTANT | 7500 | 0.45 | 6180 | 2.1 | 118.2 | 7.49 | 59.4 | 670 |
| 12.0v CONSTANT | 15800 | 0.52 | 13360 | 2.85 | 154.4 | 21.2 | 61.9 | 1000 | |
Rotational speeds (rpm) :
| 4.5v | 6.0v | 9.0v | 12.0v | 15.0v |
| 109 | 150 | 227 | 288 | 380 |
942D
Geared motors MFA 942D
